Seat Cushion - Front: Notes

SPECIAL TOOL(S)

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

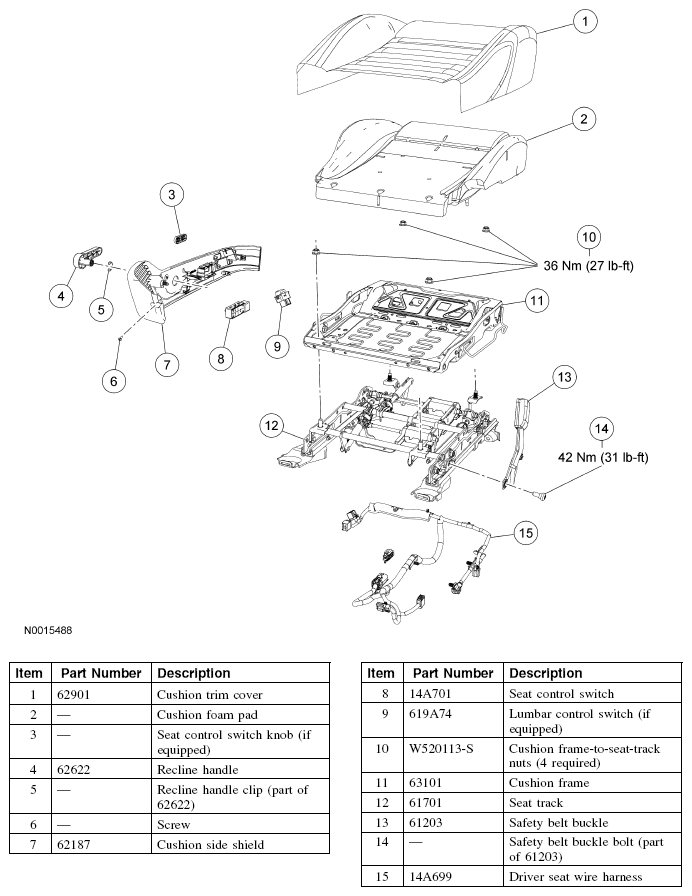

Fig 1: Exploded View Of Driver Power Front Seat Cushion - With Torque Specifications

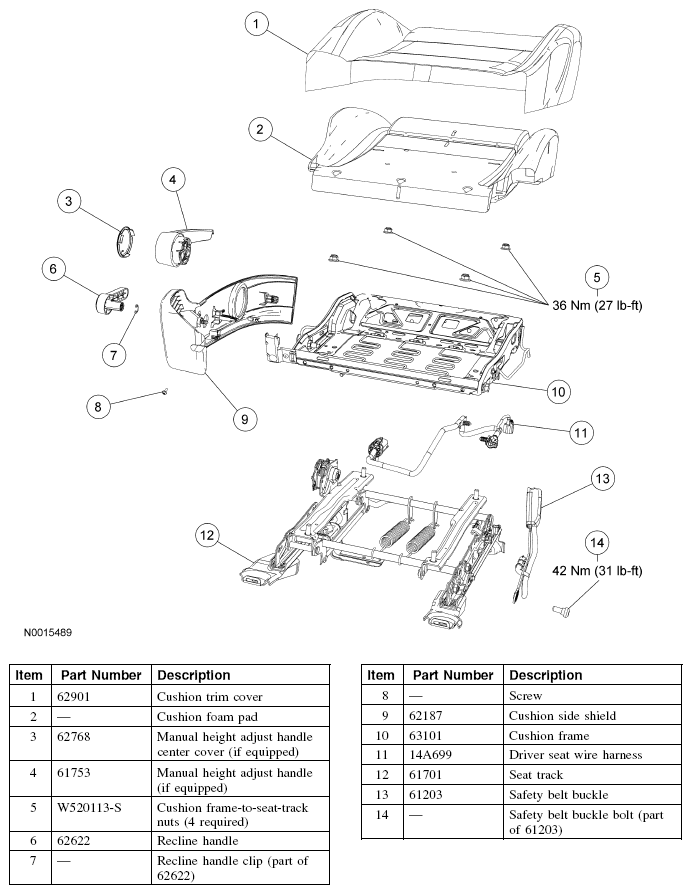

Fig 2: Exploded View Of Driver Manual Front Seat Cushion - With Torque Specifications

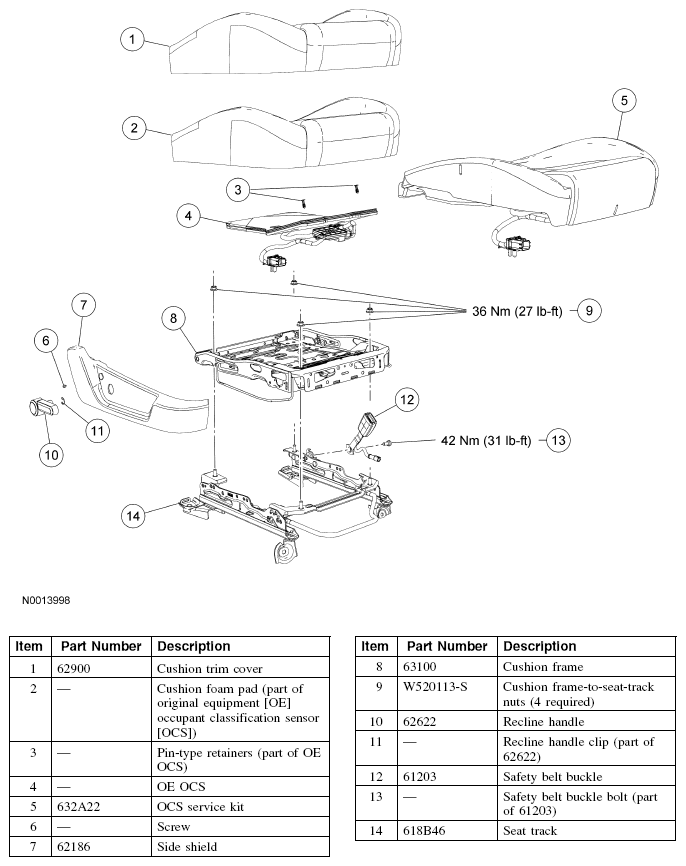

Fig 3: Exploded View Of Passenger Front Seat Cushion - With Torque Specifications
