Inner Tie Rod: Notes

SPECIAL TOOL

	Tie Rod End Remover 211-105 Tool-3290-D
	Boot Clamp Pliers 205-D067 (D87P-1098-A) or equivalent
	Inner Tie-Rod Socket Tool 211-D029 or equivalent

MATERIAL SPECIFICATION

Item	Specification
Premium Long Life Grease XG-l-C or XG-l-K (US); CXG-l-C (Canada)	ESA-M1C75-B

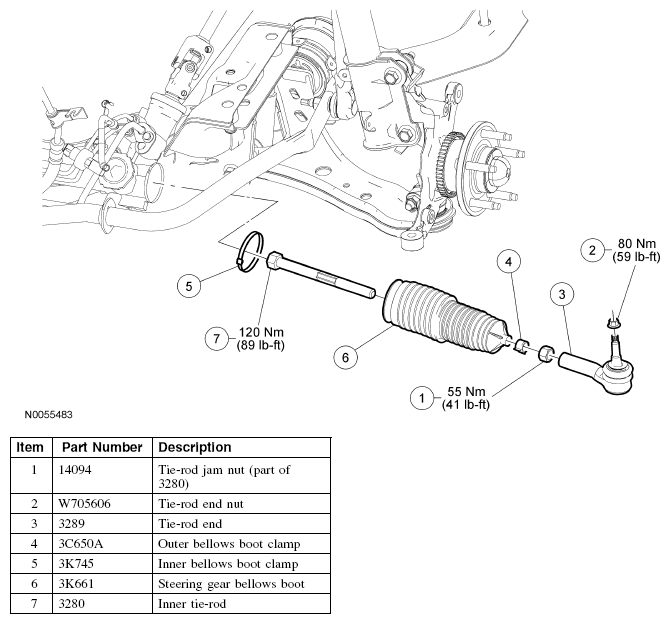

Fig 1: Inner Tie-Rod Replacement Components - With Torque Specifications
