Transmission Support Crossmember: Notes

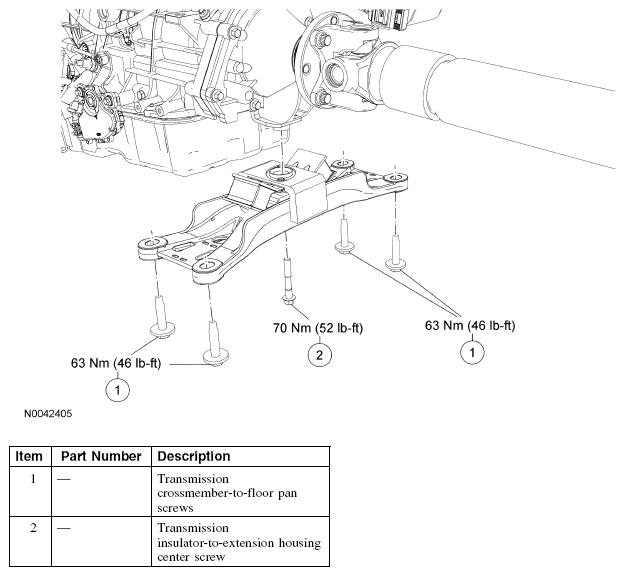

Fig 1: Identifying Transmission Support Crossmember Components

G04696261
