Window adjust switch, passenger side: Schematic

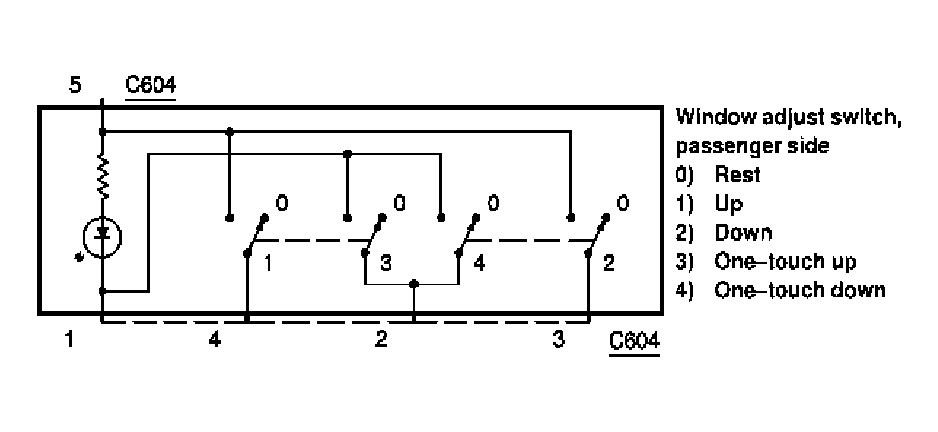

Fig 1: Window Adjust Switch, Passenger Side - Schematic Diagram
G04597944Courtesy of FORD MOTOR CO.
