Steering Gear: Notes

SPECIAL TOOL

G04694563
 Tie Rod End Remover
211-001 (TOOL-3290-D)
MATERIAL SPECIFICATION

Item Specification
MERCON® Multi-Purpose ATF Transmission Fluid XT-2-QDX MERCON®

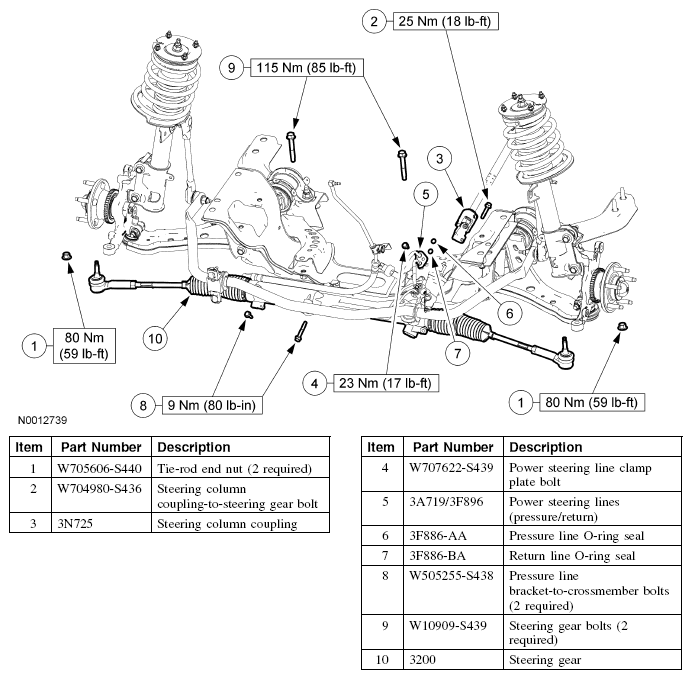

Fig 1: Steering Gear Replacement Components - With Torque Specifications
G04694564
