Subframe and Components - Exploded View, Front

NOTE: 4.0L subframe shown, all others similar.

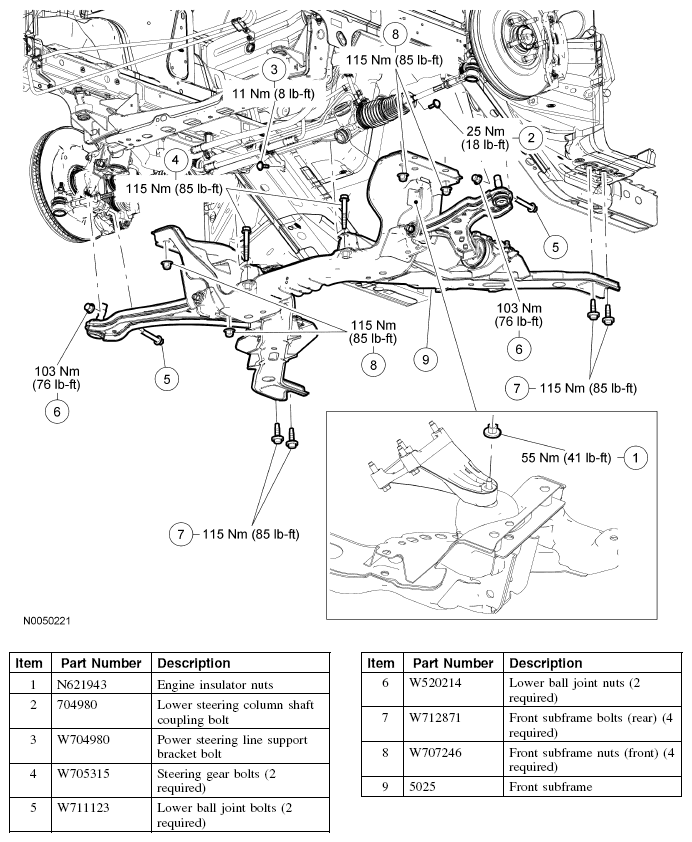

Fig 1: Exploded View Of Front Subframe And Components
G04698480
  1. For additional information, refer to the appropriate procedure in this article.
