Alignment

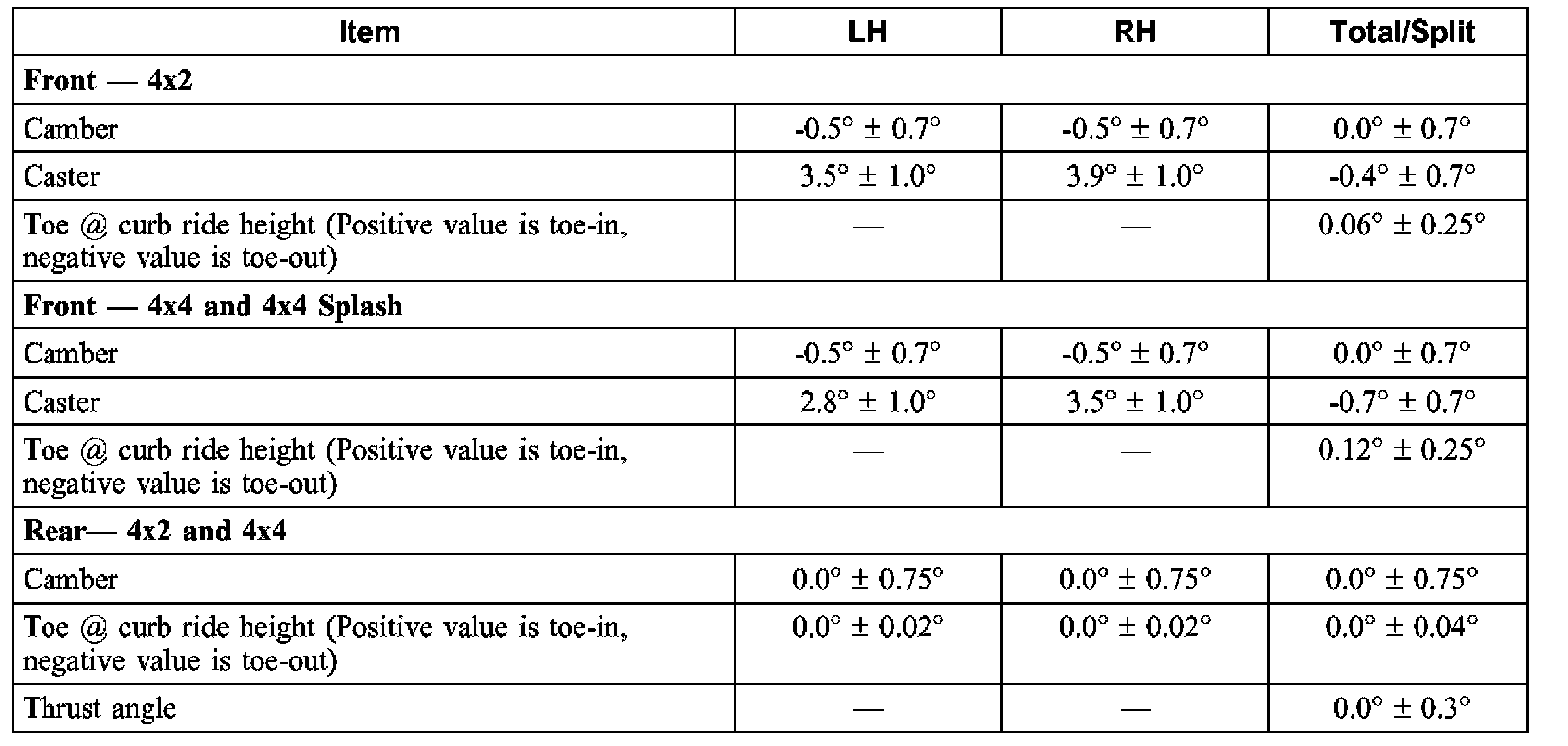

Alignment Specifications:

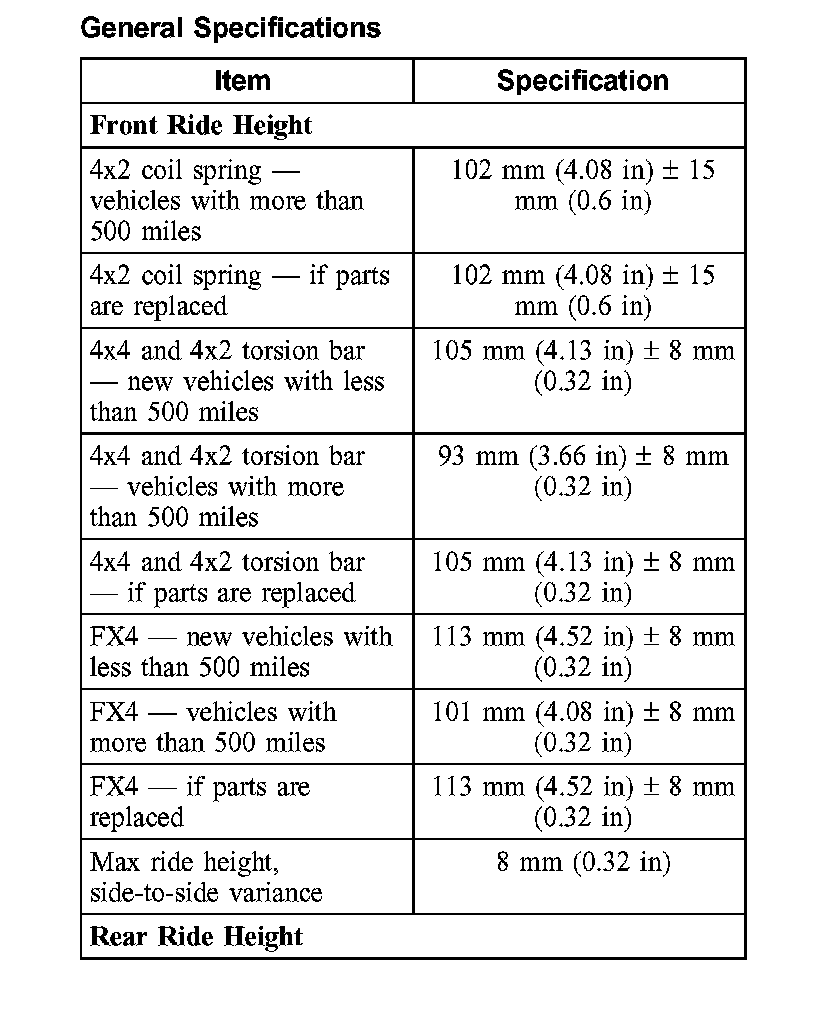

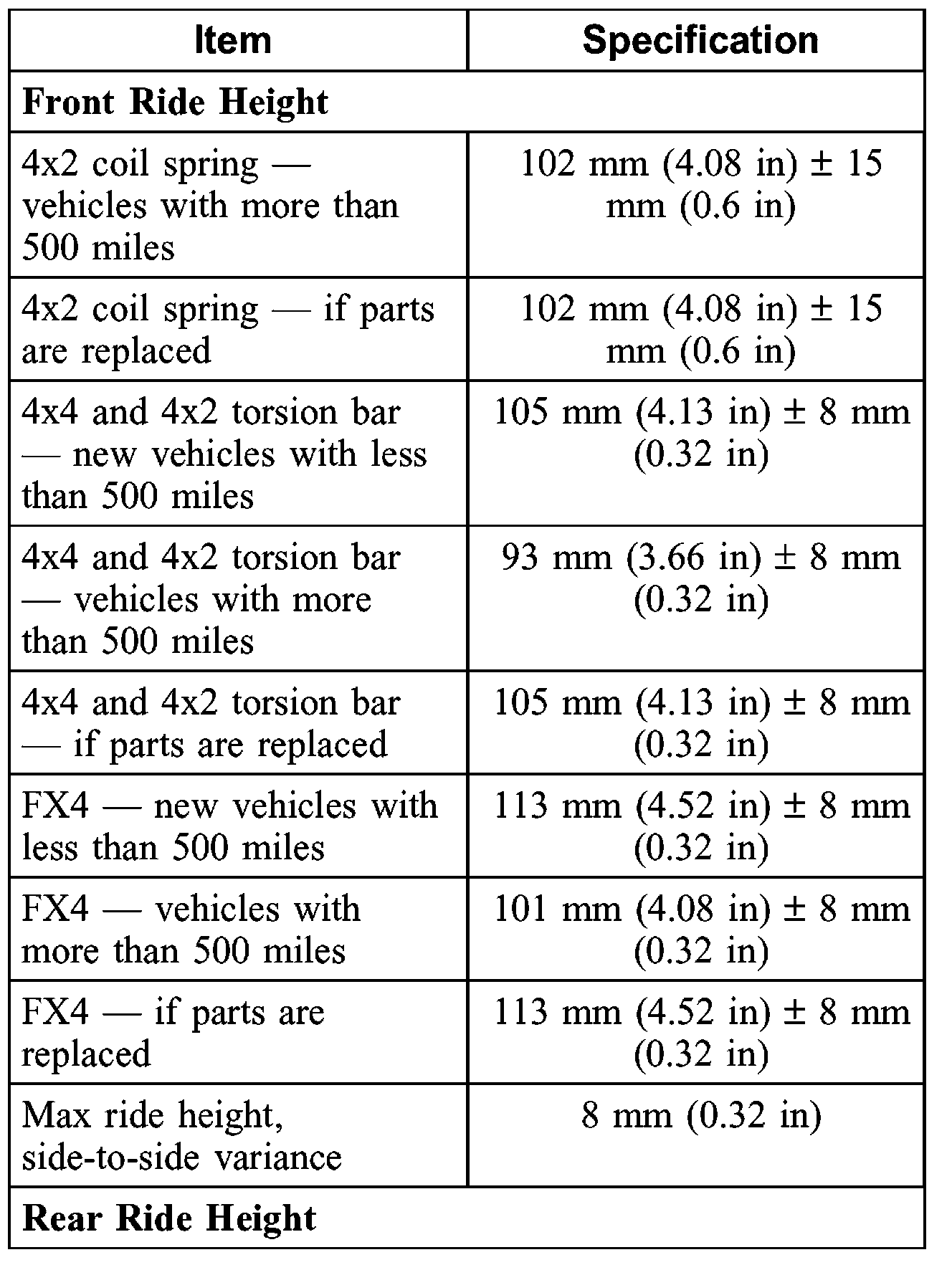

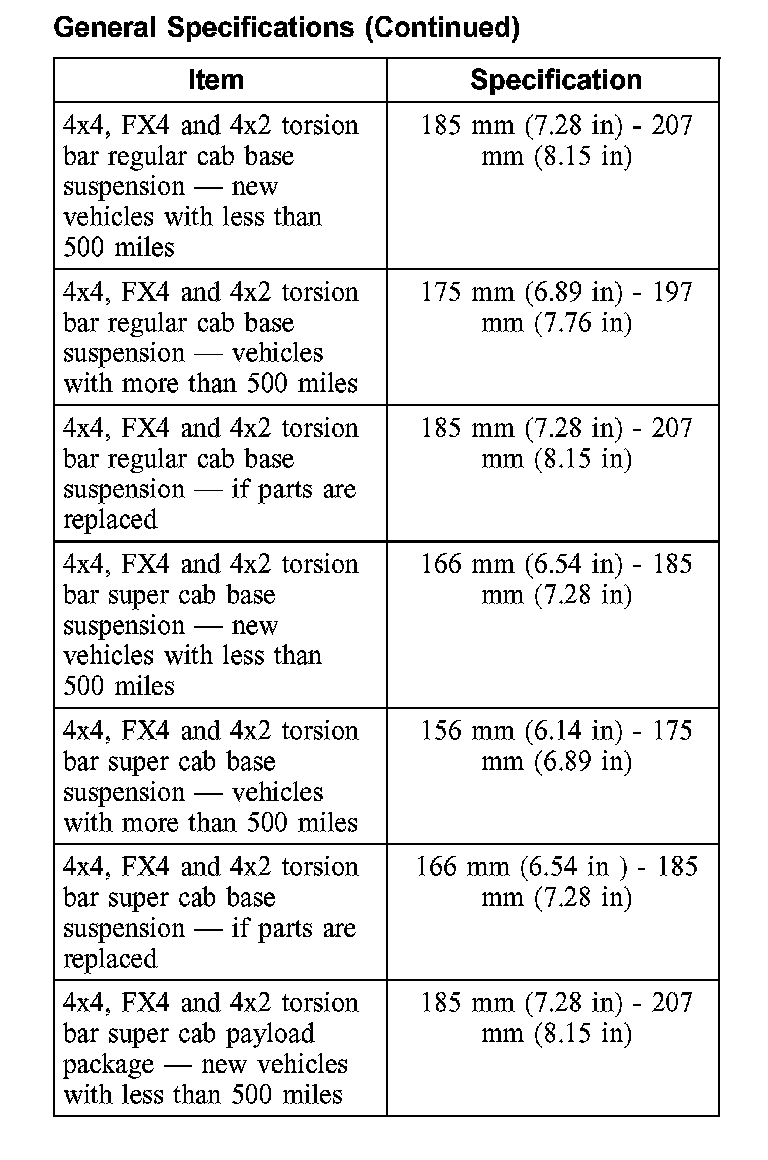

General Specifications:

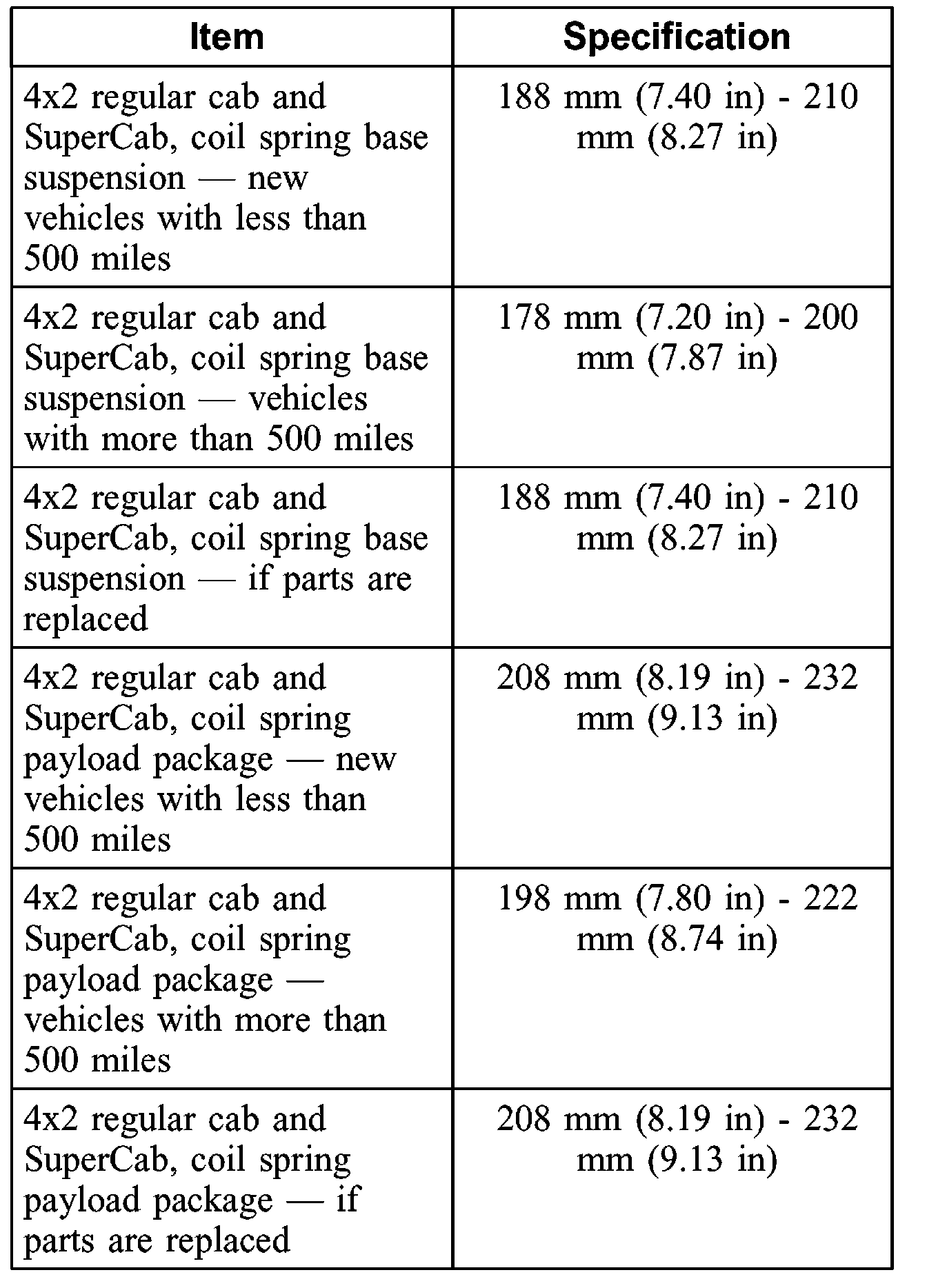

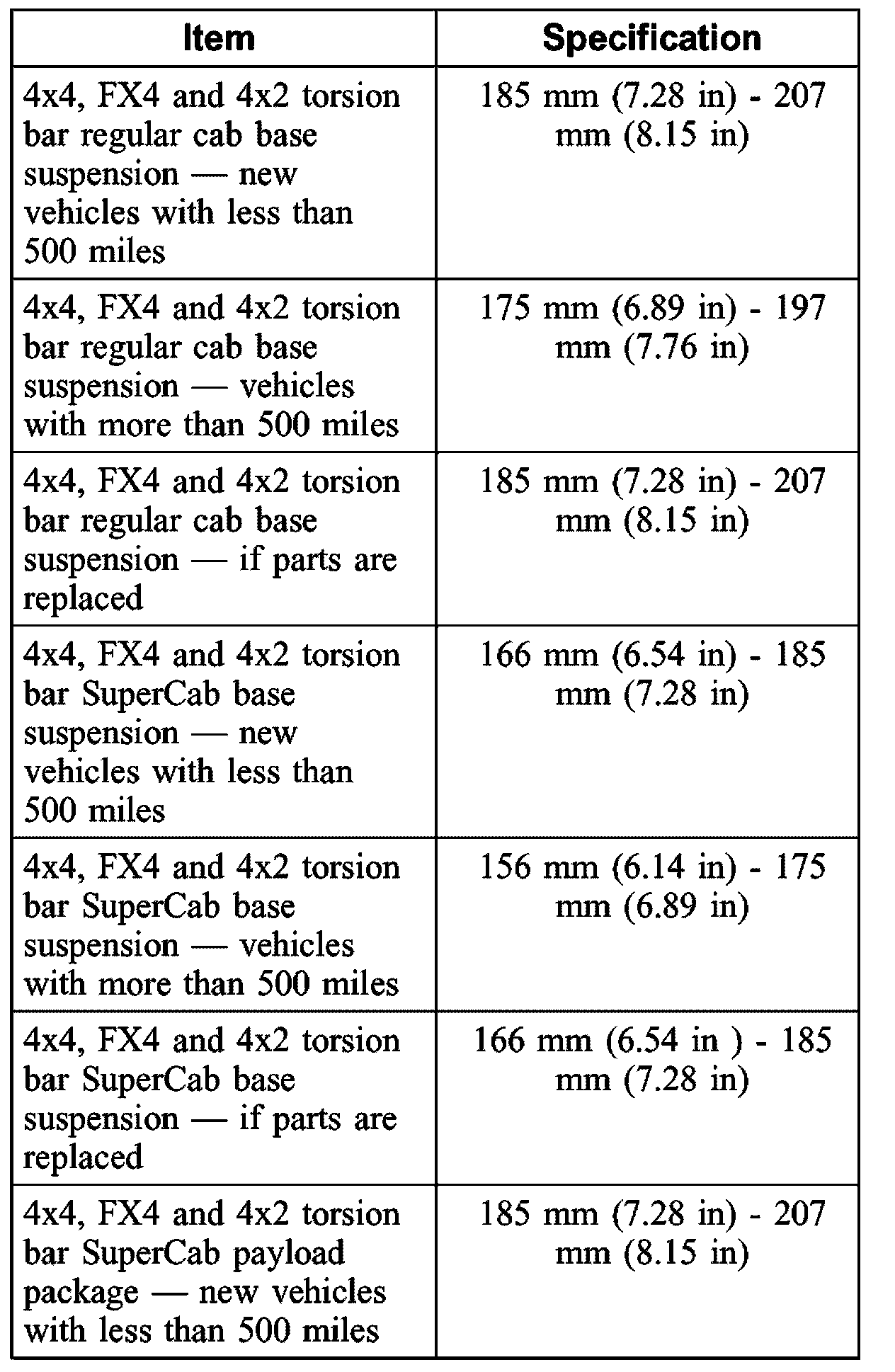

General Specifications:

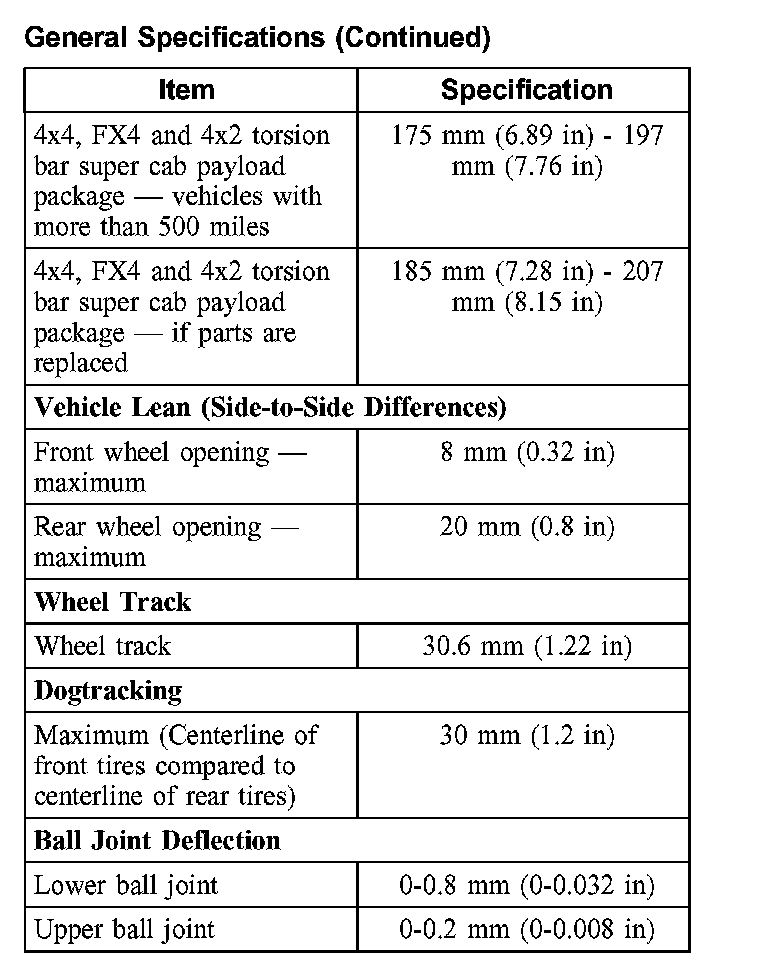

General Specifications:



General Specifications:

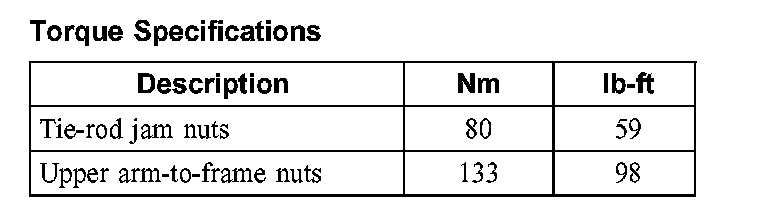

Torque Specifications:



Alignment Specifications:

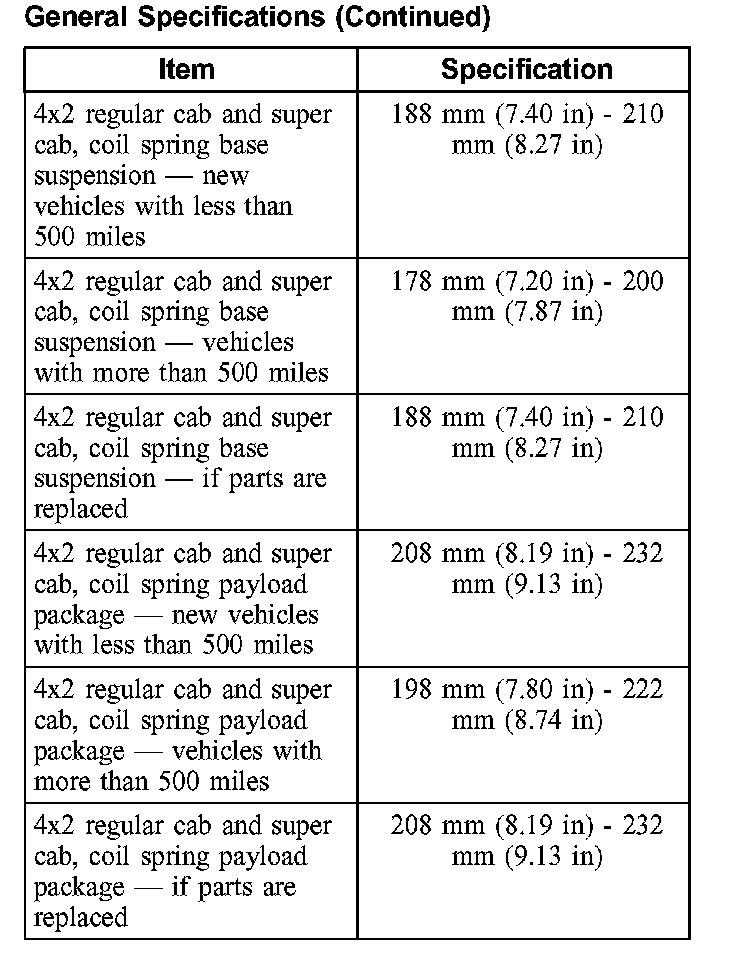

General Specifications:

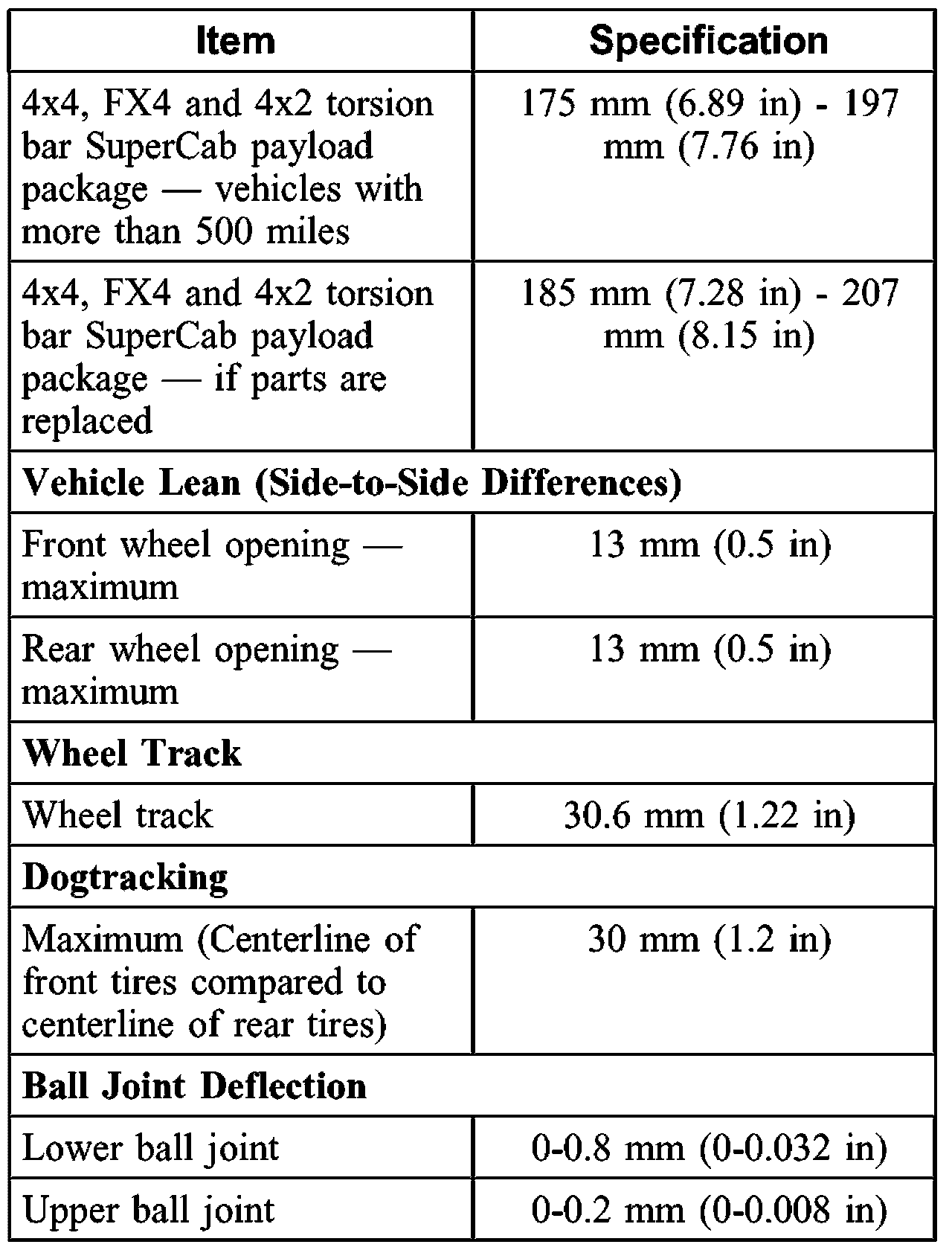

General Specifications:



General Specifications:



General Specifications:

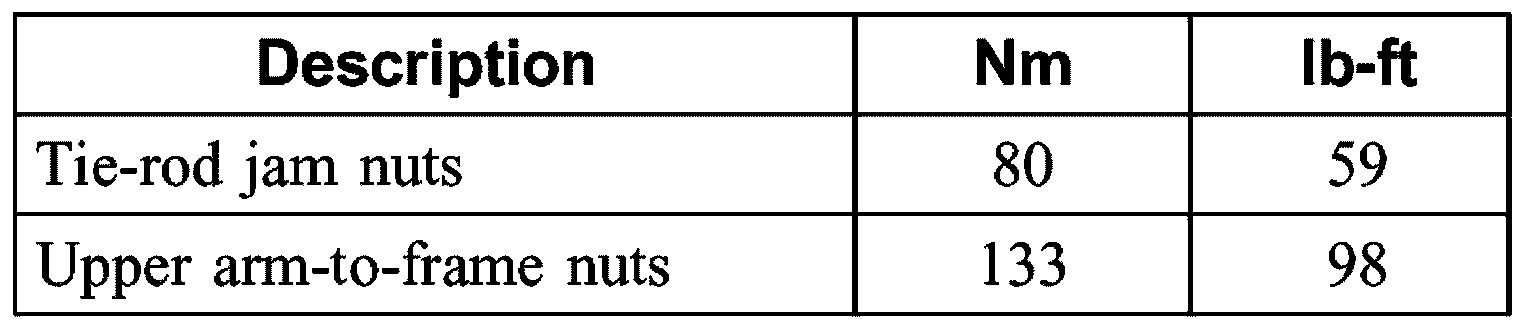

Torque Specifications:
