Oil Pressure Sensor: Service and Repair

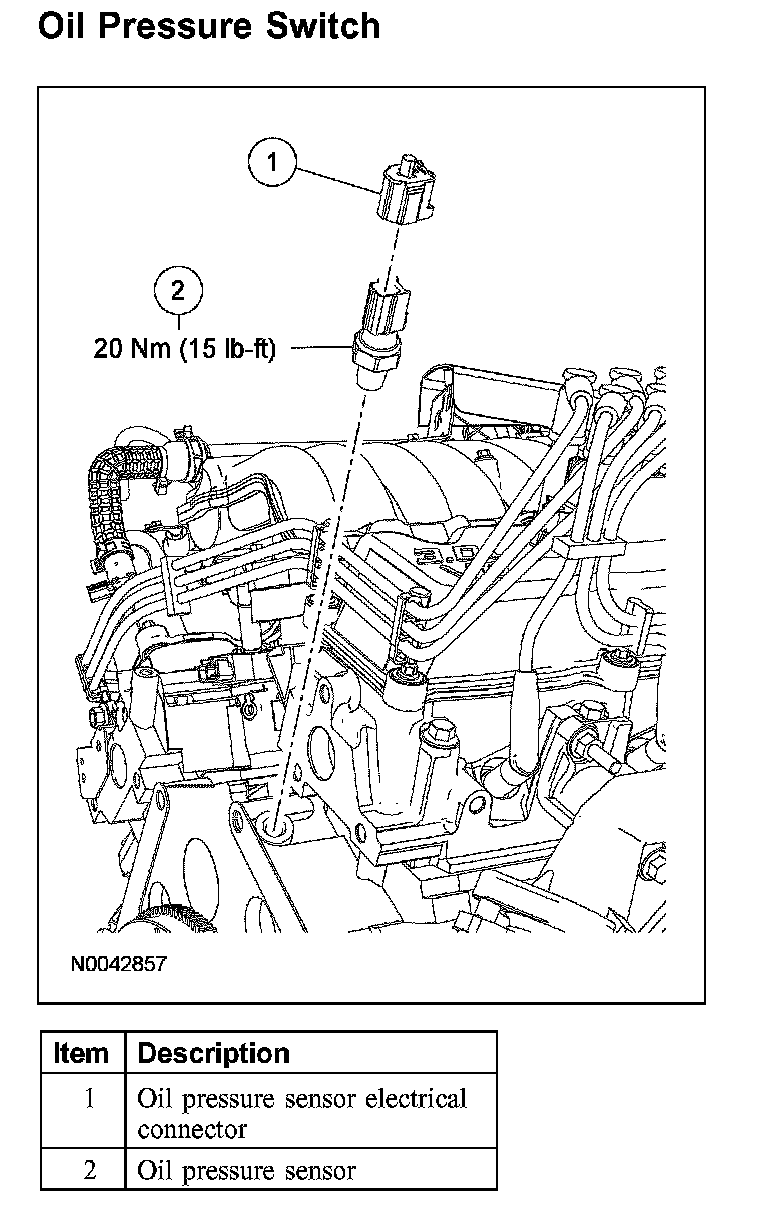

Oil Pressure Switch

Oil Pressure Switch:

Removal and Installation
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Disconnect the oil pressure sensor electrical connector from the oil pressure sensor.
3. Remove the oil pressure sensor.
^ To install, tighten to 20 Nm (15 ft. lbs.).
4. To install, reverse the removal procedure.
