Control Module: Service and Repair

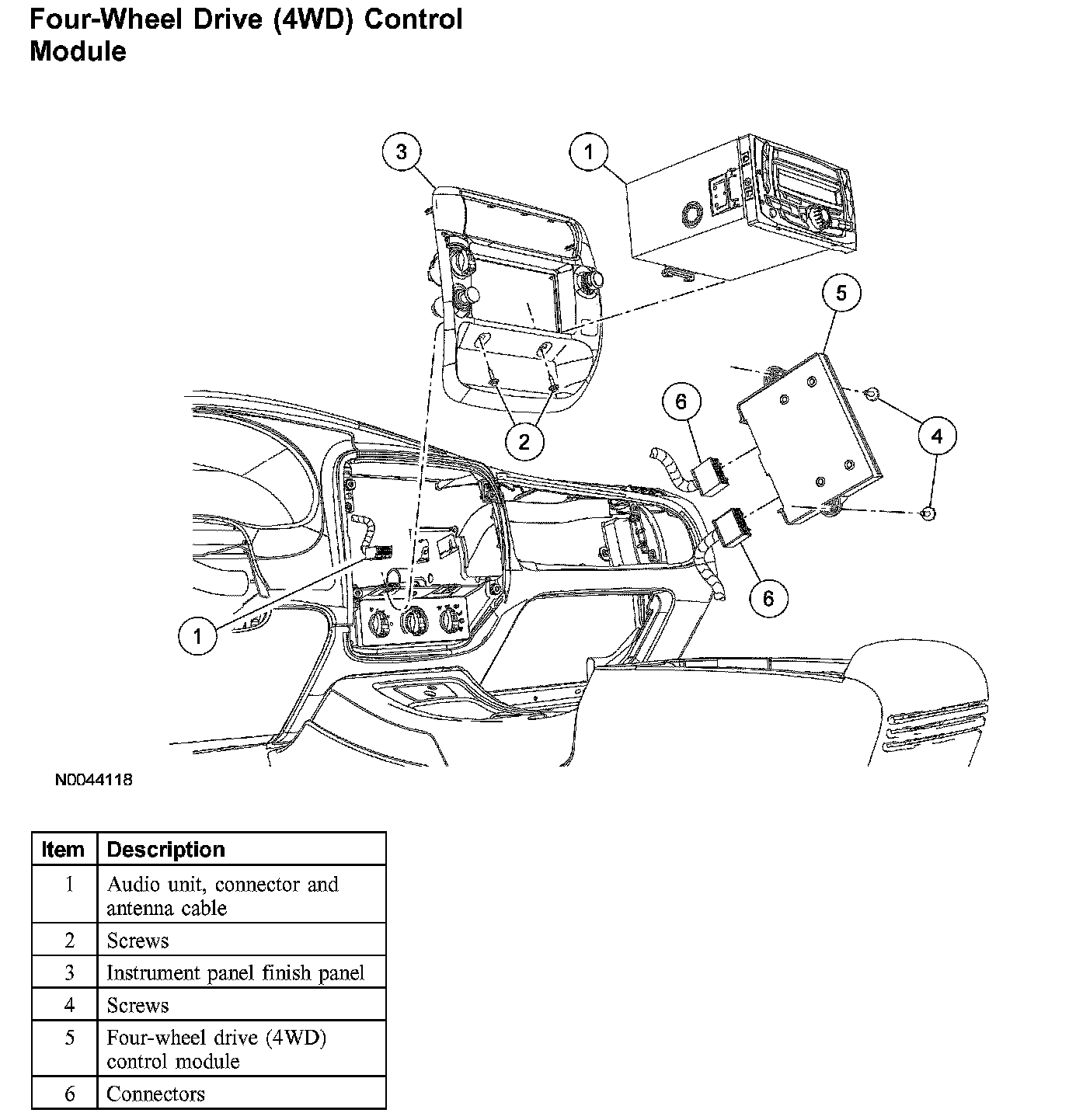

Four-Wheel Drive (4WD) Control Module





Removal and Installation

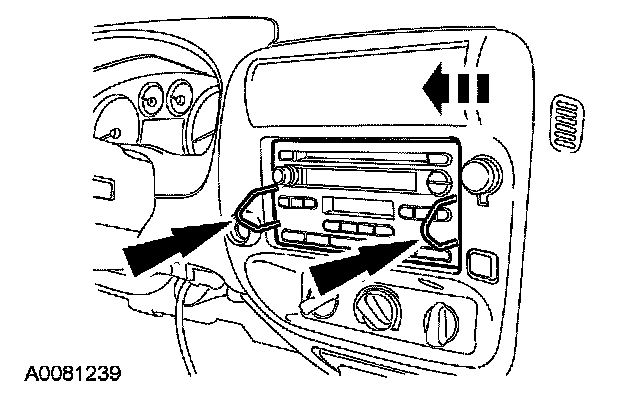

1. Remove the audio unit.
^ insert the removal tool.
^ Remove and support the audio unit.

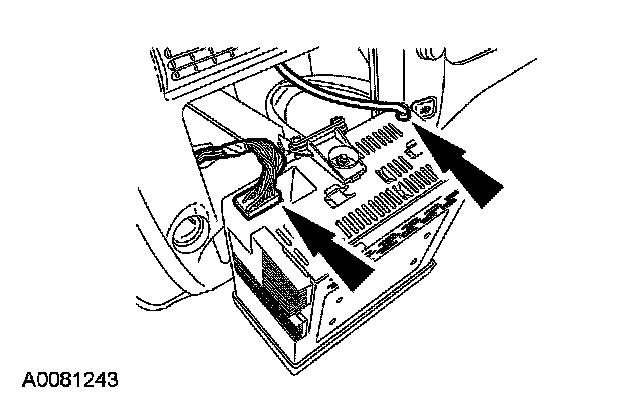

2. Disconnect the audio unit electrical connector and antenna cable.

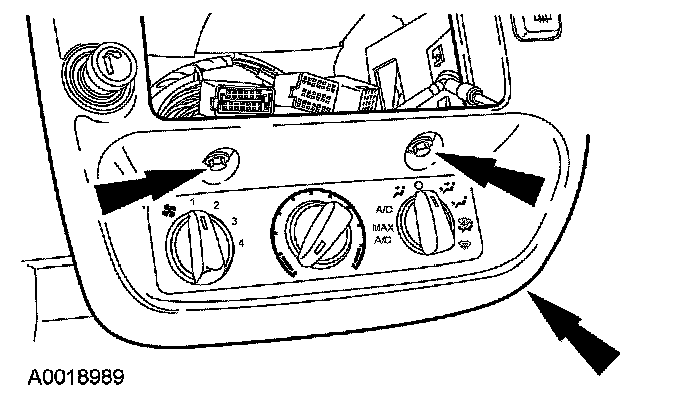

3. Remove the screws. Disengage the spring clips.
^ Remove the instrument panel finish panel.

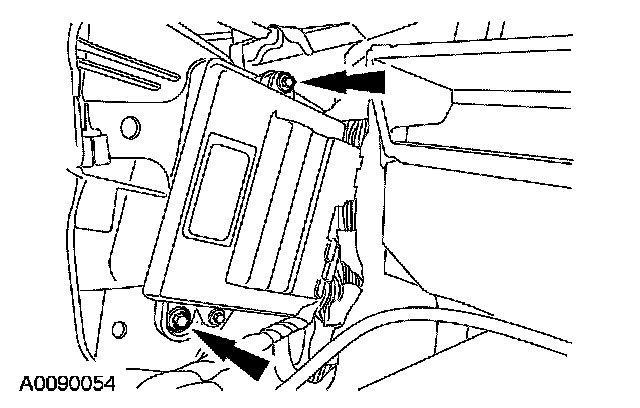

4. Remove the 4WD control module.
^ Disengage the locking tangs and remove the harness connectors.
^ Remove the screws.
^ Remove the 4WD control module.
5. To install, reverse the removal procedure.
