General Specifications

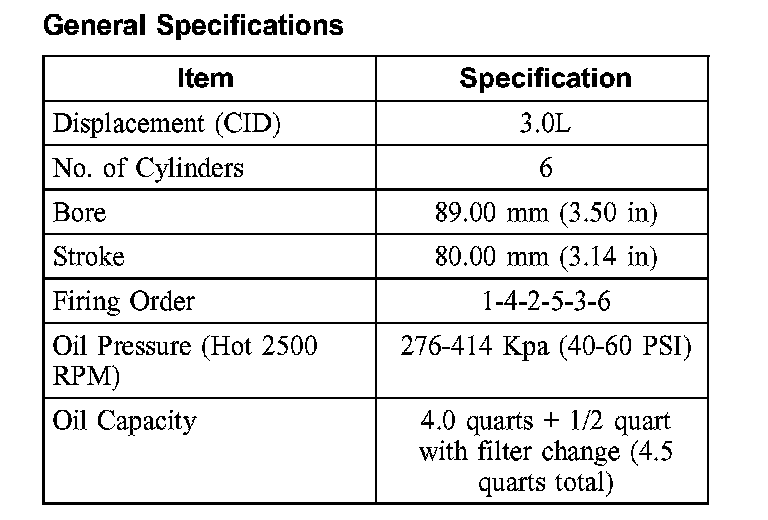

General Specifications:

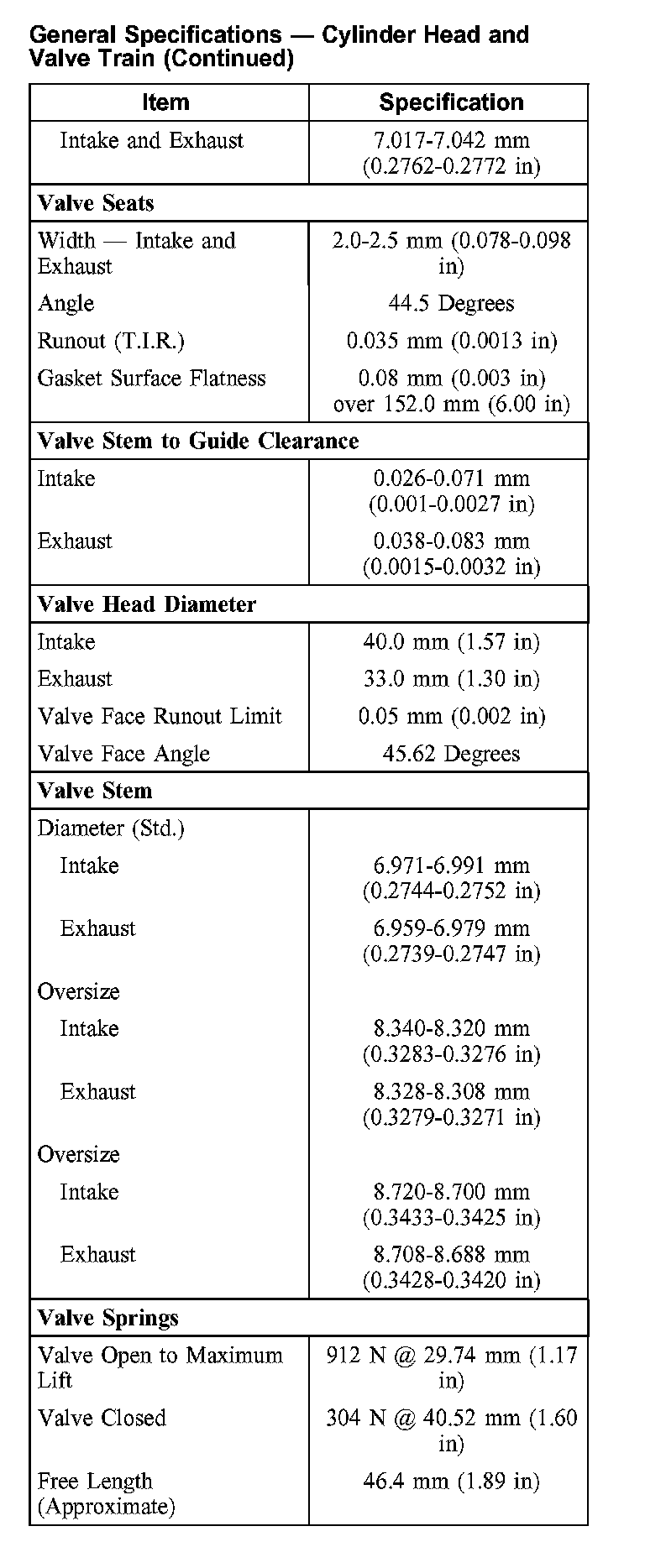

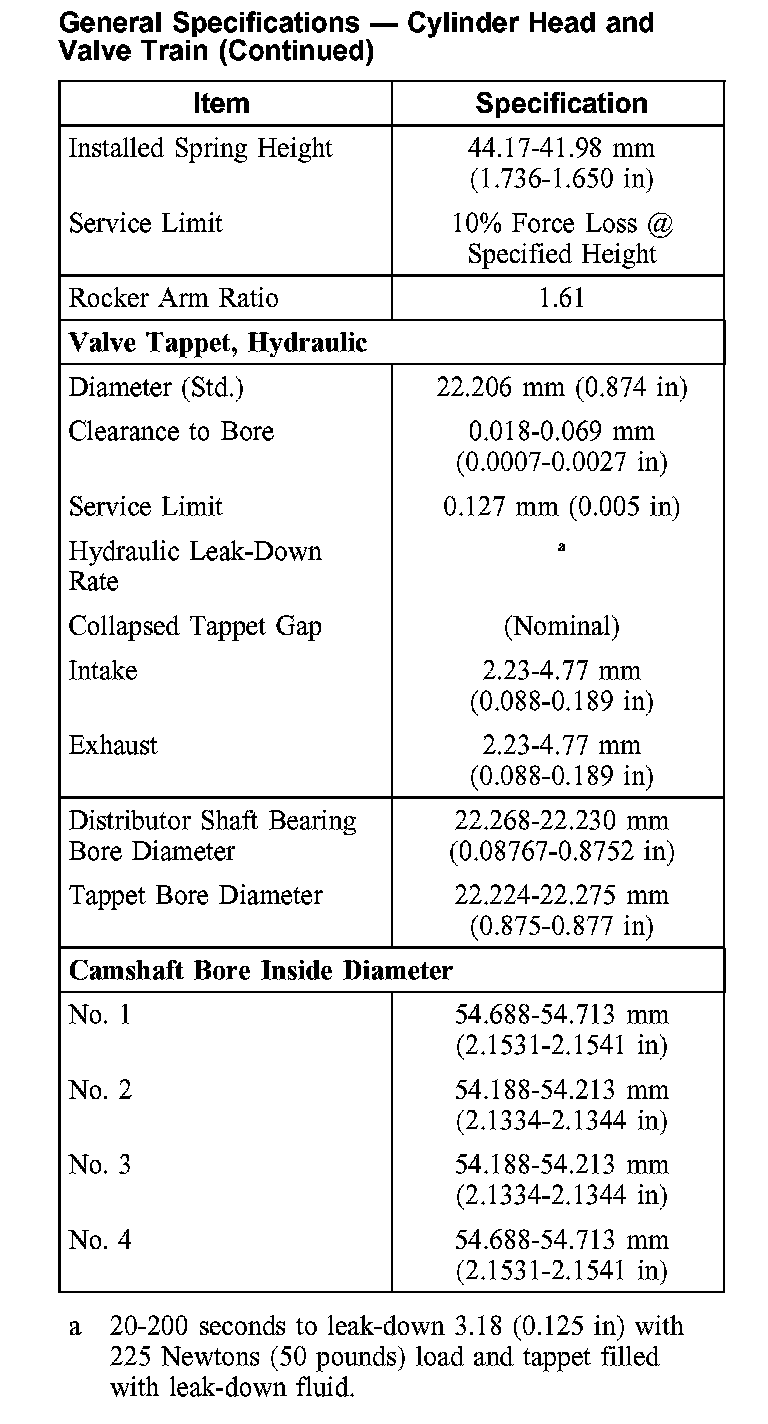

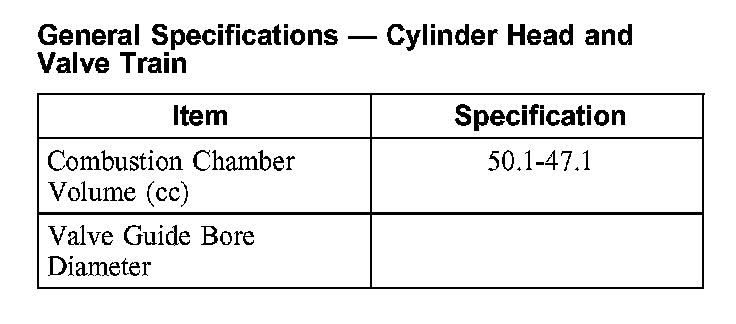

General Specifications - Cylinder Head and Valve Train:

General Specifications - Cylinder Head and Valve Train:

General Specifications - Cylinder Head and Valve Train:

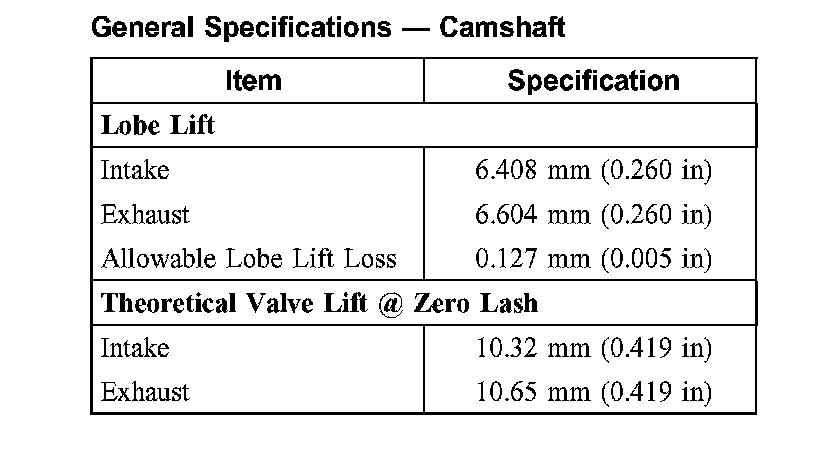

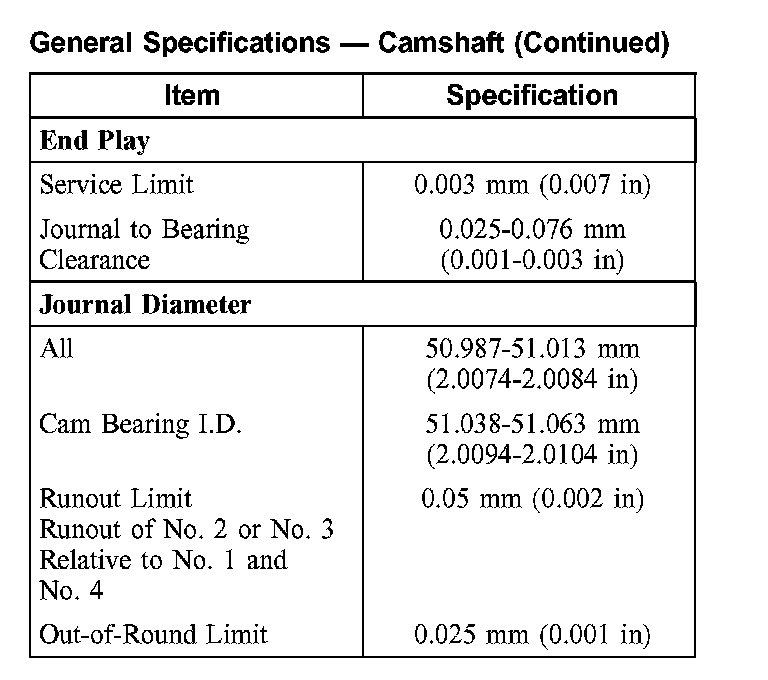

General Specifications - Camshaft:

General Specifications - Camshaft:

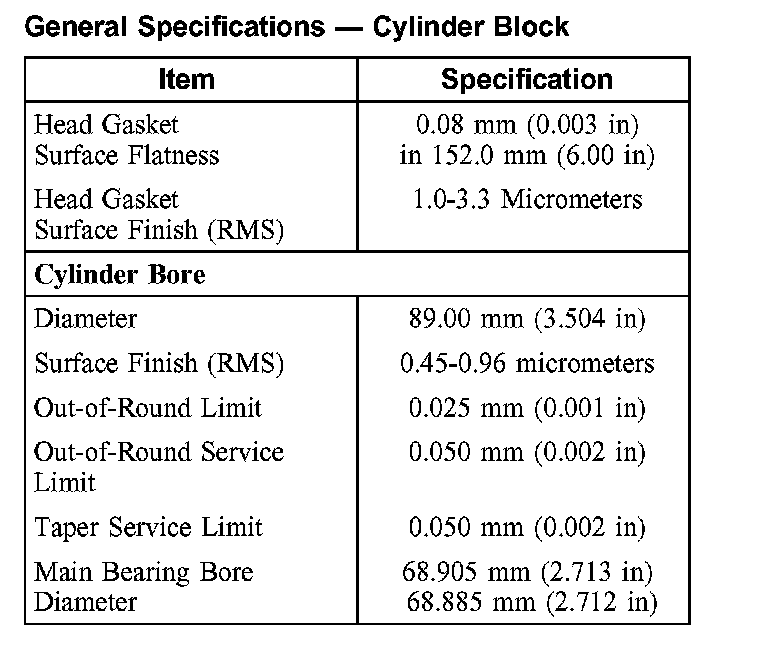

General Specifications - Cylinder Block:

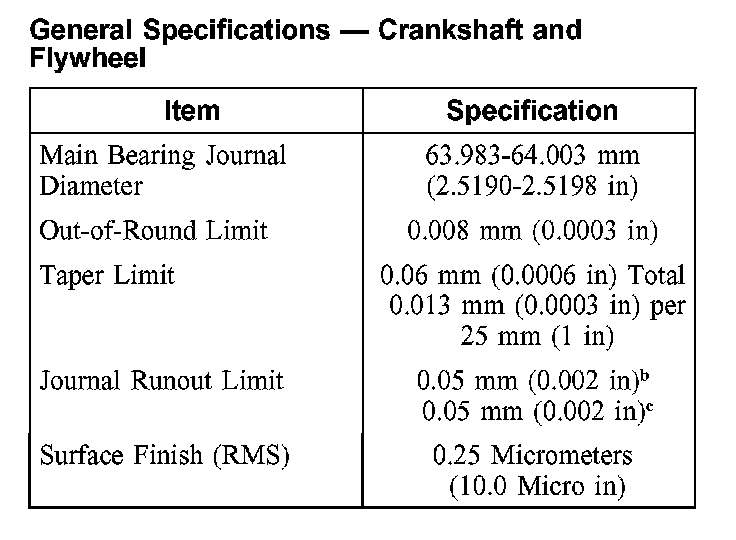

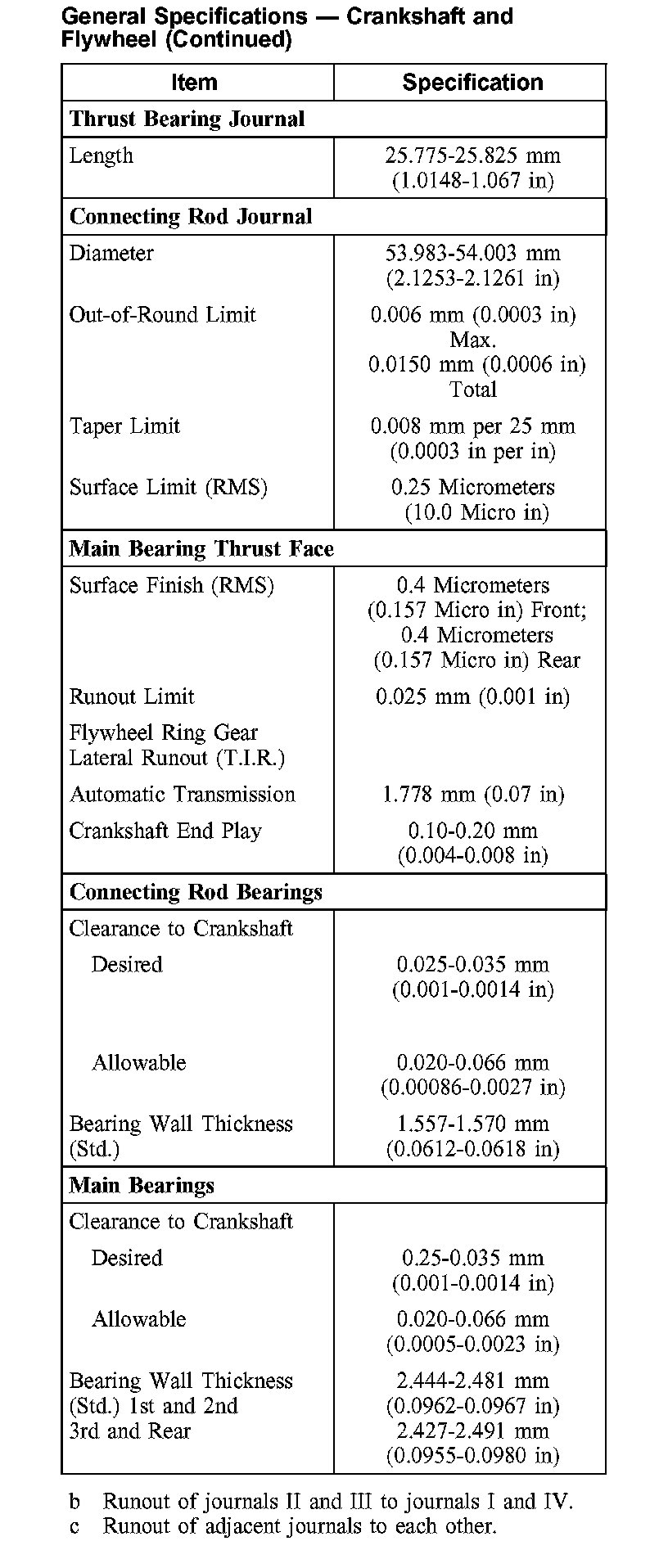

General Specifications - Crankshaft and Flywheel:

General Specifications - Crankshaft and Flywheel:

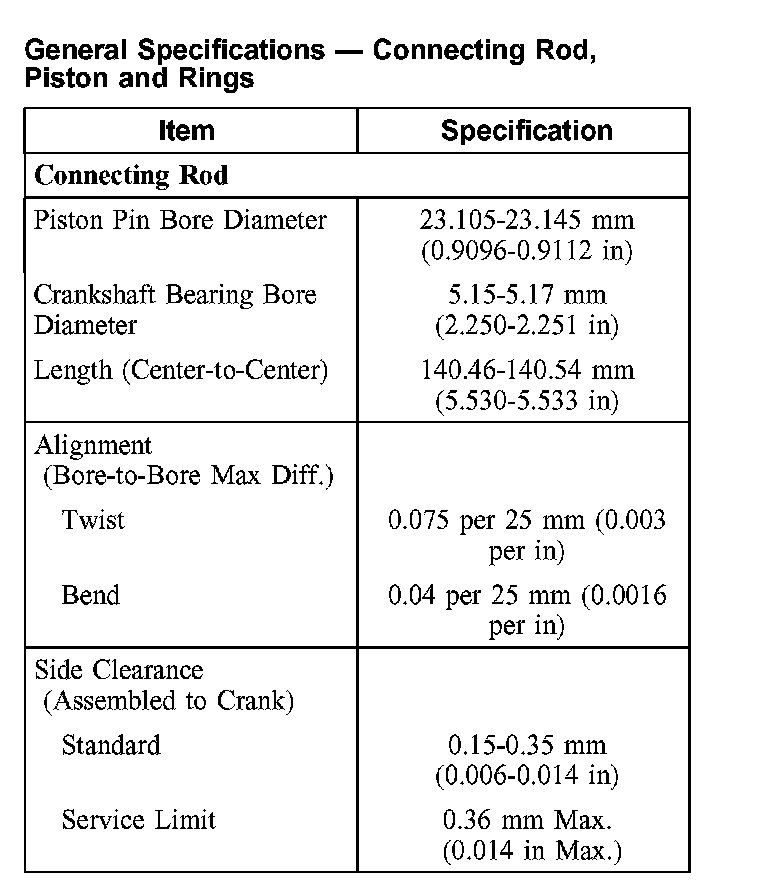

General Specifications - Connecting Rod, Piston and Rings:

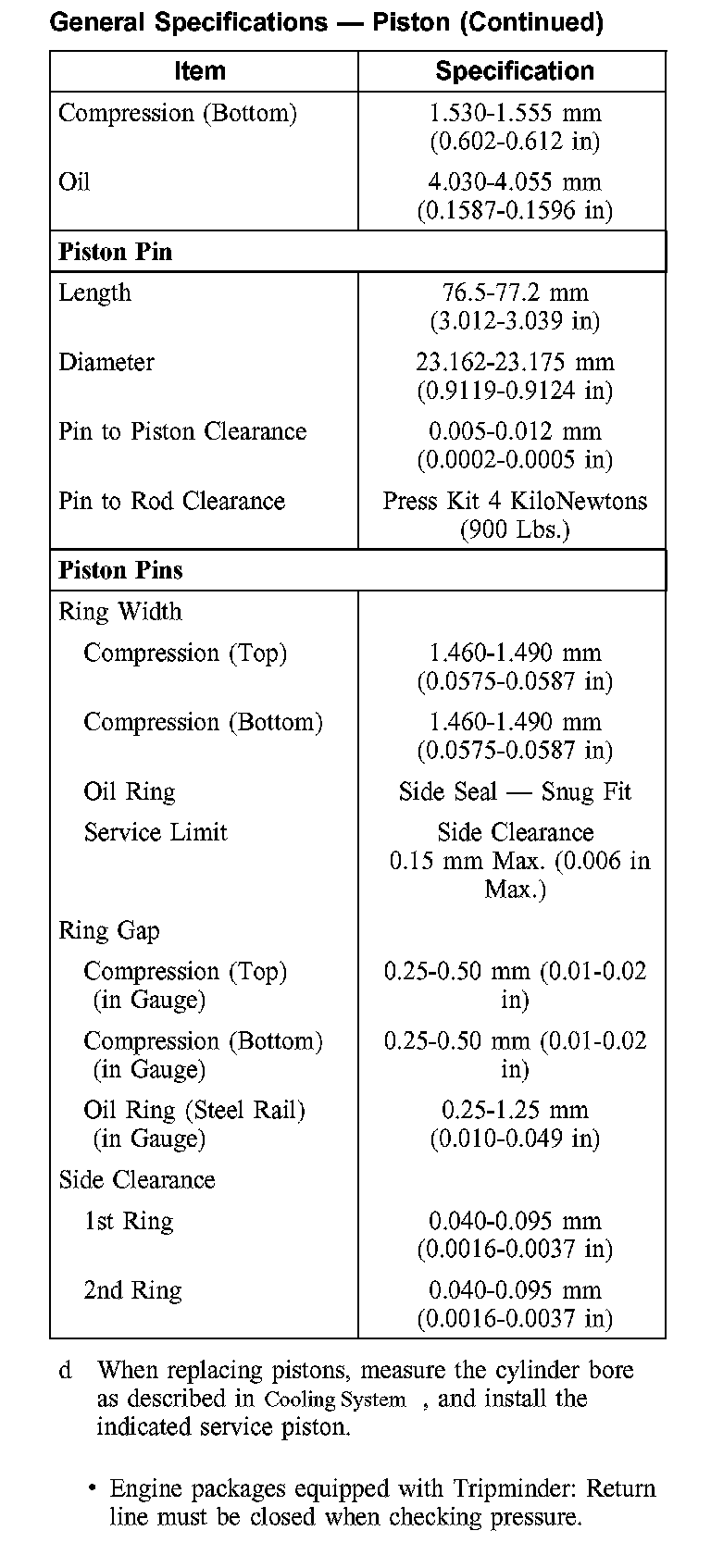

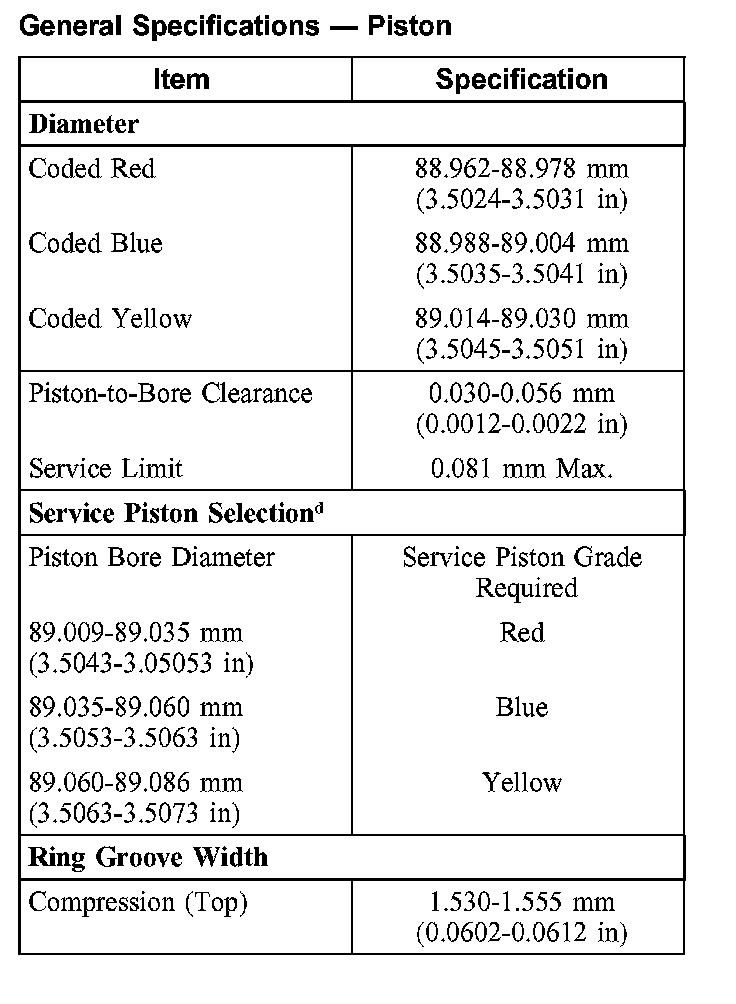

General Specifications - Piston:

General Specifications - Piston:

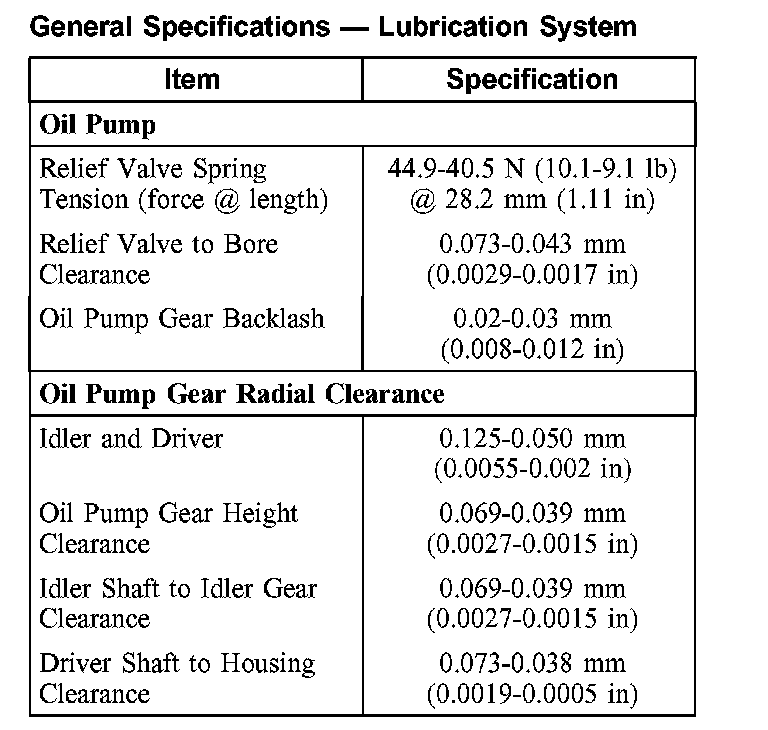

General Specifications - Lubrication System:
