Exhaust Gas Recirculation (EGR) System Components - Exploded View

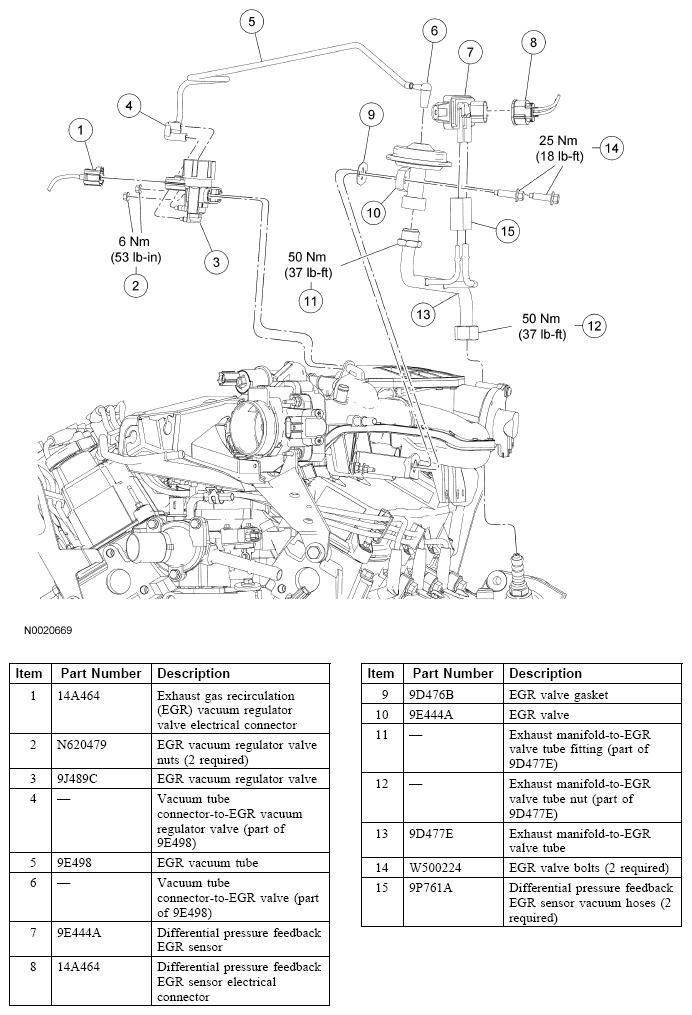

Fig 1: Exhaust Gas Recirculation (EGR) System Replacement Components With Torque Specifications
G04709633Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures in this article.
