Engine Front Cover: Notes

MATERIAL

Item Specification
Thread Sealant with PTFE TA-24 WSK-M2G350-A2

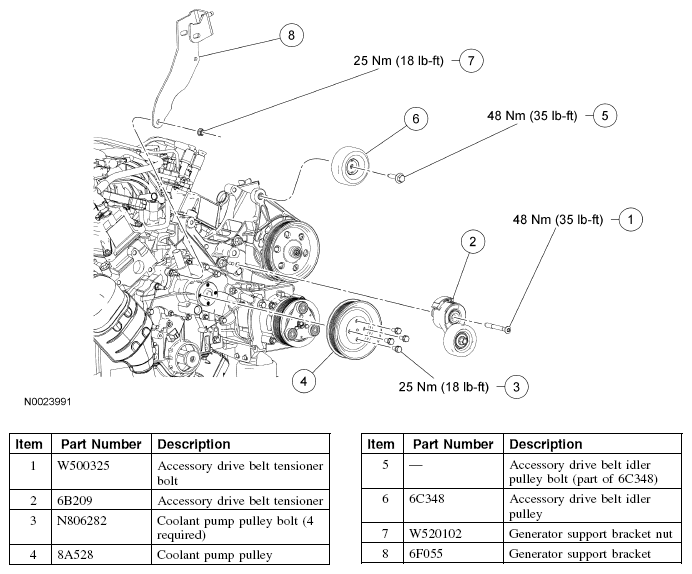

Fig 1: Engine Front Cover Replacement Components With Torque Specifications (1 Of 2)
G04709092Courtesy of FORD MOTOR CO.

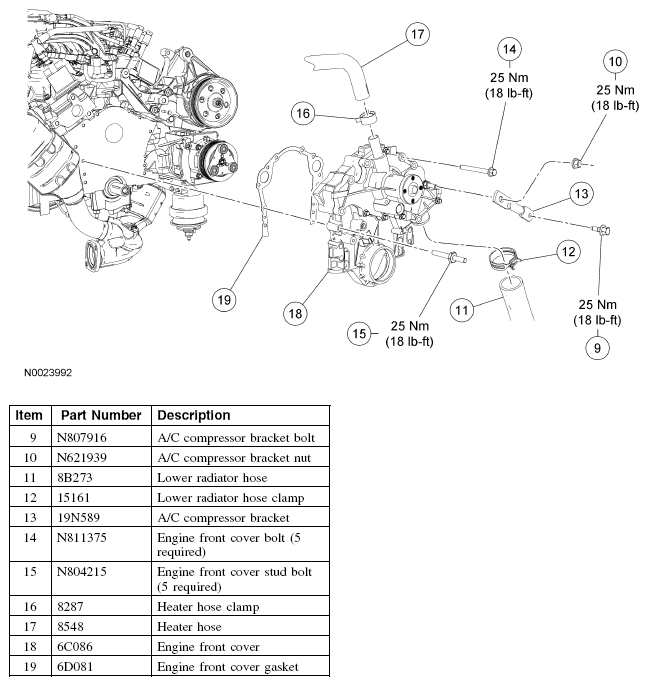

Fig 2: Engine Front Cover Replacement Components With Torque Specifications (2 Of 2)
G04709093Courtesy of FORD MOTOR CO.
