Spring Lock Couplings: Connect

To connect, push both of the coupling ends together until the spring lock is in place.
- Inspect and clean both coupling ends.
- Lubricate the O-ring seals with engine oil.

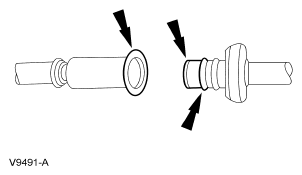

Fig 1: Locating Coupling Components

Courtesy of FORD MOTOR CO.
