Steering Gear: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

G04708805
 Holding Fixture, Transmission 307-003 (T57L-500-B)
G04708806
 Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A)
MATERIAL SPECIFICATION

Item Specification
Premium Long-Life Grease XG-1-C ESA-M1C75-B

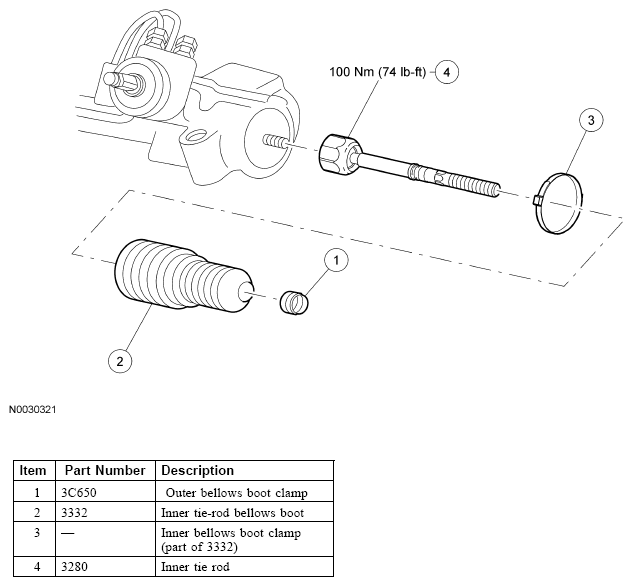

Fig 1: Steering Gear Replacement Components With Torque Specifications
G04708807Courtesy of FORD MOTOR CO.
