Transmission Selector Lever - Column Shift: Notes

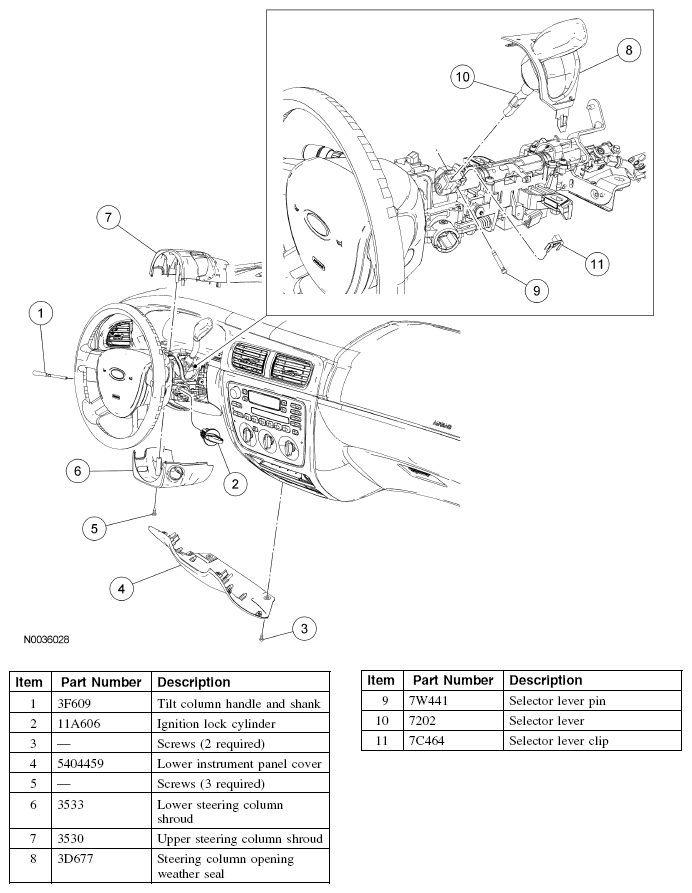

Fig 1: Exploded View Of Transmission Selector Lever - Column Shift
G04710577Courtesy of FORD MOTOR CO.
