Final Drive: Assembly

NOTE: If excessive wobble or rotational binding or damage is found, a new final drive planet and carrier will need to be installed.

Inspect the differential pinion and side gears for looseness, discoloration, cracks or excessive gear wear.
1. Inspect the final drive planet gears.
2. Inspect the pinion shaft bores.
Fig 1: Identifying Pinion Shaft Bore And Final Drive Planet Gears
Courtesy of FORD MOTOR CO.
Install the differential side gear and differential side gear thrust washer.
1. Install the differential side gear and differential side gear thrust washer.
2. Install the output shaft.
3. Install the retaining ring.
Fig 2: Identifying Output Shaft And Retaining Ring
Courtesy of FORD MOTOR CO.

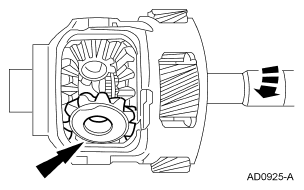

Install the differential side gear and differential side gear thrust washer.

Fig 3: Locating Differential Side Gear And Differential Side Gear Thrust Washer
Courtesy of FORD MOTOR CO.
Install the differential pinion gears and differential pinion thrust washers.

Fig 4: Locating Differential Pinion Gears
Courtesy of FORD MOTOR CO.
Install the differential pinion shaft.

Fig 5: Installing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

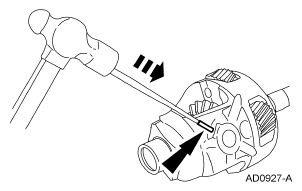

Install the differential pinion shaft roll pin.

Fig 6: Installing Differential Pinion Shaft Roll Pin
Courtesy of FORD MOTOR CO.
Install the final drive sun gear and deflector assembly.

Fig 7: Locating Final Drive Sun Gear And Deflector
Courtesy of FORD MOTOR CO.
Install the park gear.

Fig 8: Locating Park Gear
Courtesy of FORD MOTOR CO.
Install the No. 16 final drive gear front thrust bearing.

Fig 9: Locating Final Drive Gear Front Thrust Bearing
Courtesy of FORD MOTOR CO.
Install new retaining circle clips.

Fig 10: Locating Retaining Circle Clips
Courtesy of FORD MOTOR CO.
Install the low intermediate clutch piston and rear planet support.

Fig 11: Locating Low Intermediate Clutch Piston
Courtesy of FORD MOTOR CO.
