Low-Intermediate Clutch Cylinder: Notes

SPECIAL TOOL CHART

G04710238Courtesy of FORD MOTOR CO.
 Slide Hammer 100-001 (T50T-100-A)
G04710239Courtesy of FORD MOTOR CO.
 Actuator Pin 1/8-Inch Diameter 303-D010 (D80L-100-F) or equivalent
G04710240Courtesy of FORD MOTOR CO.
 Collet, 3/8-Inch - 7/16-Inch 303-D015 (D80L-100-L)
G04710241Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
G04710242Courtesy of FORD MOTOR CO.
 Protector, Piston Seal 307-311 (T94P-77001-DH)
G04710243Courtesy of FORD MOTOR CO.
 Installer, Lube Tube Fluid Seal 307-315 (T94P-77001-GH)

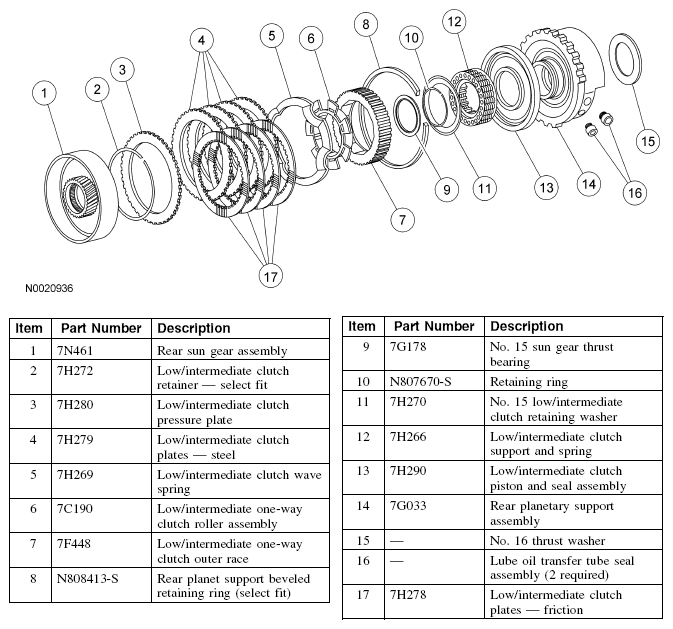

Fig 1: Exploded View Of Low-Intermediate Clutch Cylinder
G04710244Courtesy of FORD MOTOR CO.


SPECIAL TOOL CHART

G04710259Courtesy of FORD MOTOR CO.
 Slide Hammer 100-001 (T50T-100-A)
G04710260Courtesy of FORD MOTOR CO.
 Actuator Pin 1/8-Inch Diameter 303-D010 (D80L-100-F) or equivalent
G04710261Courtesy of FORD MOTOR CO.
 Collet, 3/8-Inch - 7/16-Inch 303-D015 (D80L-100-L)
G04710262Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
G04710263Courtesy of FORD MOTOR CO.
 Protector, Piston Seal 307-311 (T94P-77001-DH)
G04710264Courtesy of FORD MOTOR CO.
 Installer, Lube Tube Fluid Seal 307-315 (T94P-77001-GH)

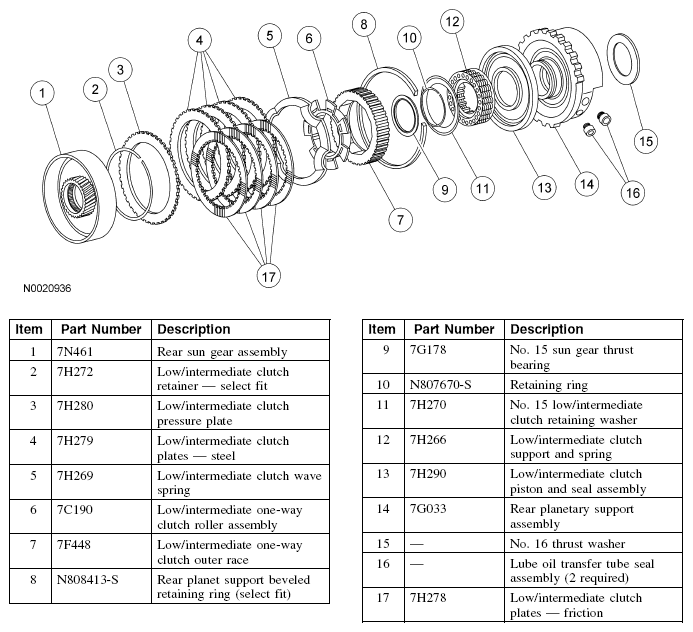

Fig 1: Exploded View Of Low-Intermediate Clutch Cylinder
G04710265Courtesy of FORD MOTOR CO.
