External Controls

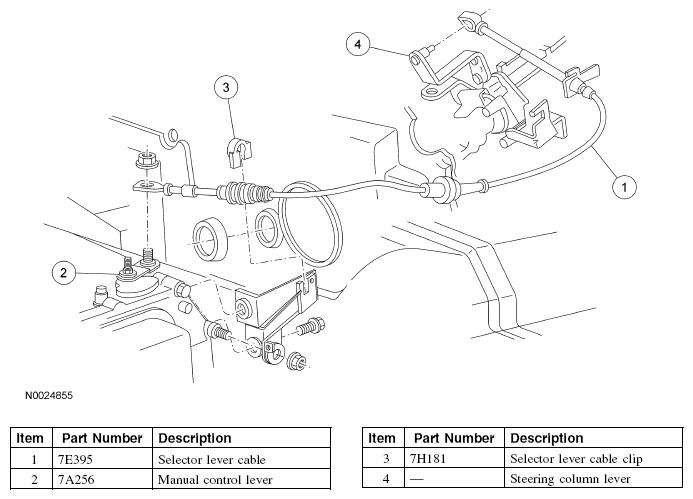

External Controls - Column Shift

Fig 1: Identifying External Controls Components - Column Shift

Courtesy of FORD MOTOR CO.

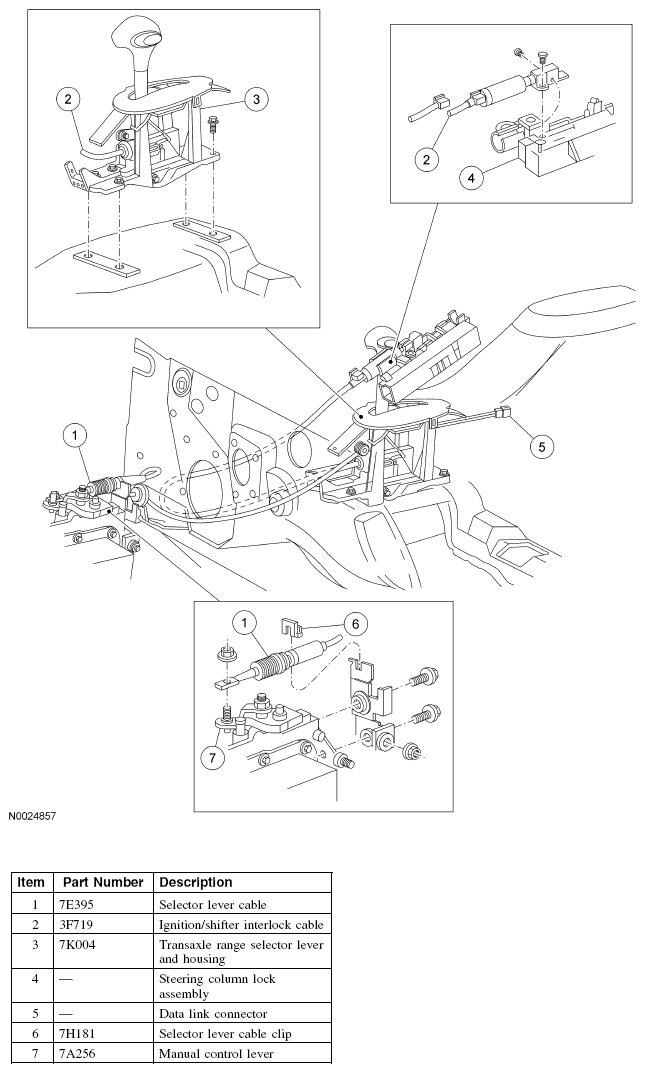

External Controls - Floor Shift

Fig 2: Identifying External Controls Components - Floor Shift

Courtesy of FORD MOTOR CO.

The transaxle shift control linkage consists of:

• a steering column or floor-mounted transaxle range selector lever.
• a shift cable connecting the steering column to the transaxle range selector lever.
• an ignition/shifter interlock cable on floor-shift vehicles which connects the transaxle range selector lever to the steering column lock assembly.
• an ignition/shift lock actuator that is integral to the ignition/shifter interlock cable.

The ignition/shifter interlock cable:

• locks the transaxle range selector lever in the PARK position when the ignition switch is in the lock position.
• requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the lock position.
