Forward Clutch Cylinder: Notes

SPECIAL TOOL CHART

G04710147Courtesy of FORD MOTOR CO.
 Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent
G04710148Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
G04710149Courtesy of FORD MOTOR CO.
 Protector, Piston Seal 307-175 (T86P-70548-A)

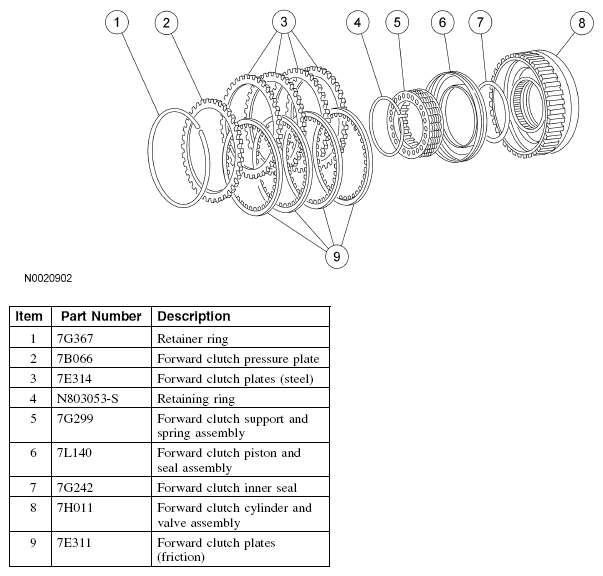

Fig 1: Exploded View Of Forward Clutch Cylinder
G04710150Courtesy of FORD MOTOR CO.
