Main Control Valve Body: Notes

SPECIAL TOOL CHART

G04710066Courtesy of FORD MOTOR CO.
 Remover, Pump Bearing/Seal 307-394
Fig 1: Identifying Main Control Valve Body Components
G04710067Courtesy of FORD MOTOR CO.

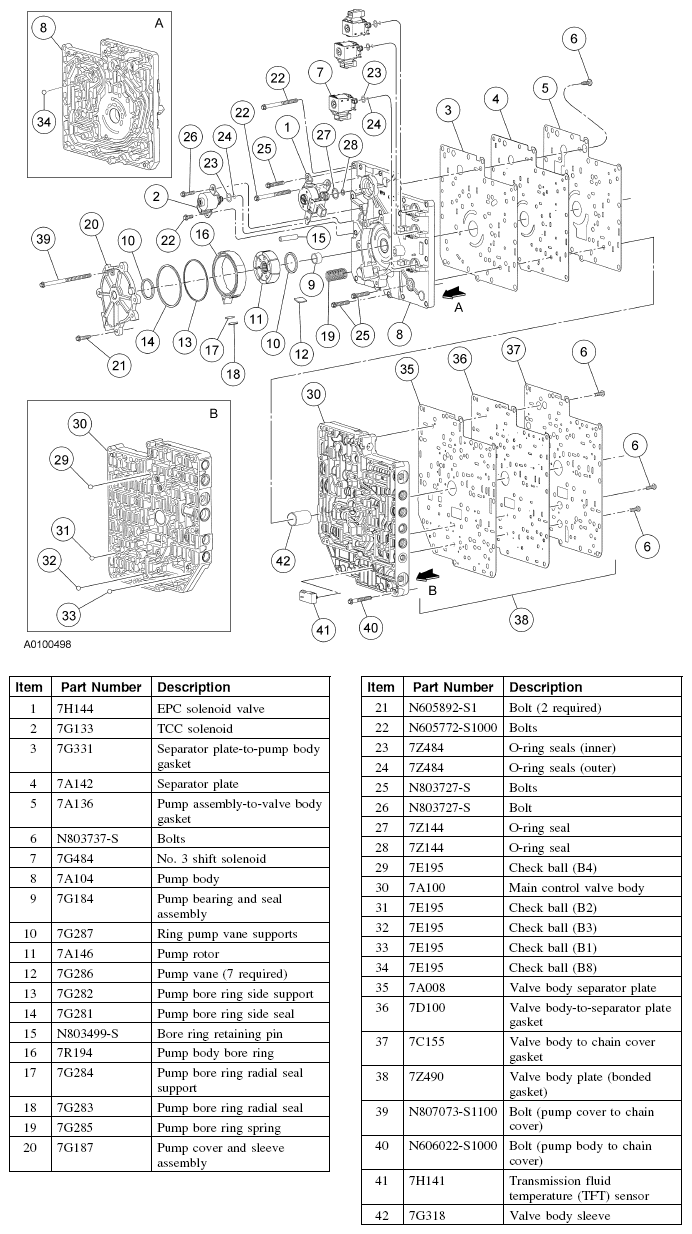

Fig 2: Identifying Main Control Pump Assembly Components
G04710068Courtesy of FORD MOTOR CO.
