Upper Intake Manifold: Notes

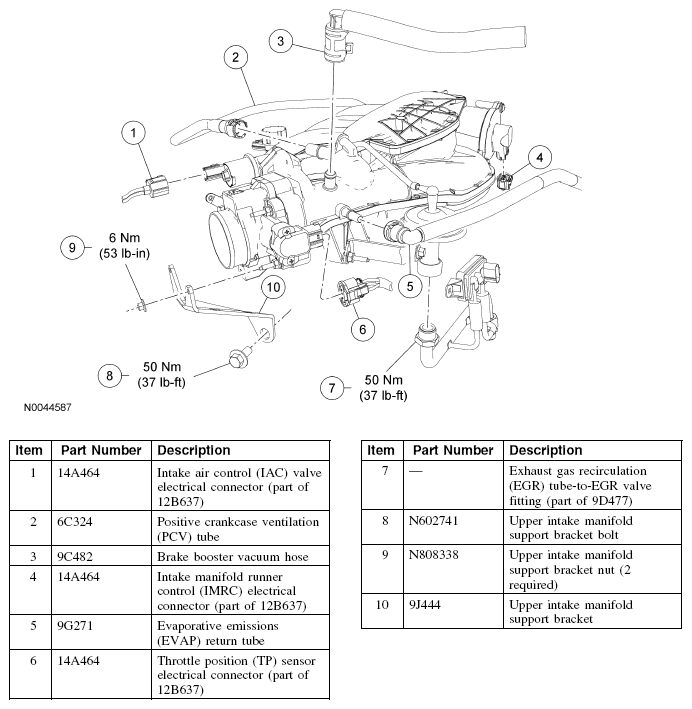

Fig 1: Upper Intake Manifold Replacement Components With Torque Specifications (1 Of 2)
G04709065Courtesy of FORD MOTOR CO.

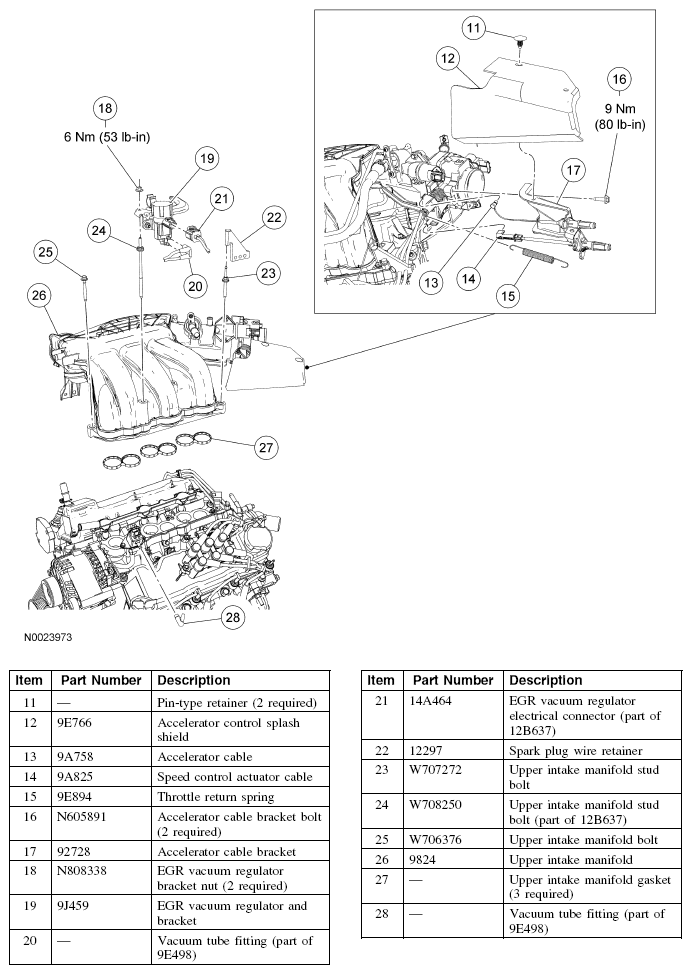

Fig 2: Upper Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
G04709066Courtesy of FORD MOTOR CO.
