Accelerator Control System Components - Exploded View

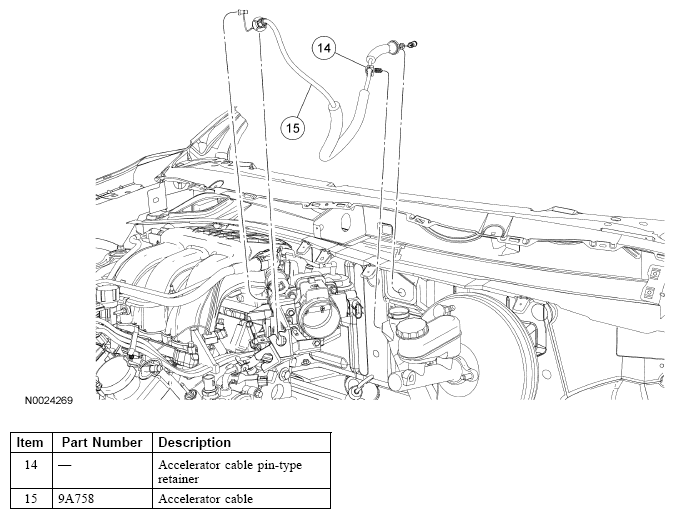

Fig 1: Accelerator Control System Components - Exploded View (1 of 3) (With torque specifications)

Courtesy of FORD MOTOR CO.

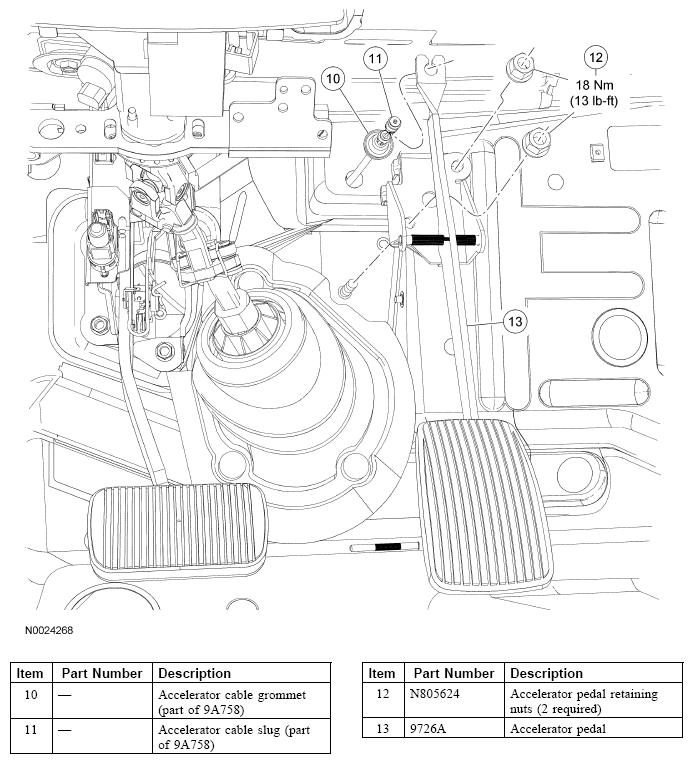

Fig 2: Accelerator Control System Components - Exploded View (2 of 3) (With torque specifications)

Courtesy of FORD MOTOR CO.

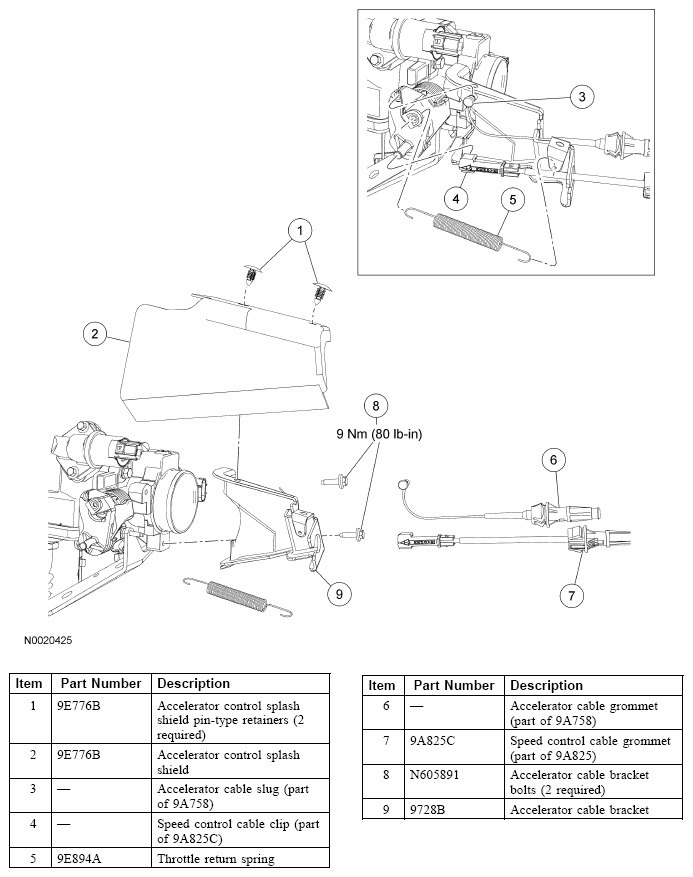

Fig 3: Accelerator Control System Components - Exploded View (3 of 3)

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedures in this article.
