Digital Transmission Range (TR) Sensor: Notes

SPECIAL TOOL CHART

G04709902Courtesy of FORD MOTOR CO.
 Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

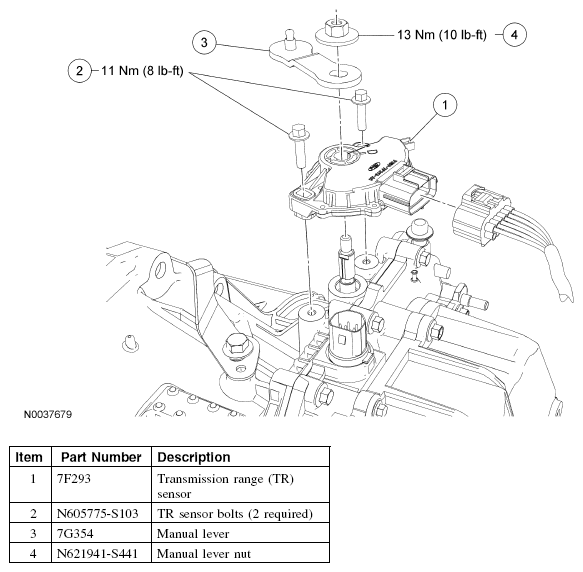

Fig 1: Digital Transmission Range (TR) Sensor With Torque Specifications
G04709903Courtesy of FORD MOTOR CO.
