Cruise Control Servo: Service and Repair

SPEED CONTROL ACTUATOR







Removal and Installation

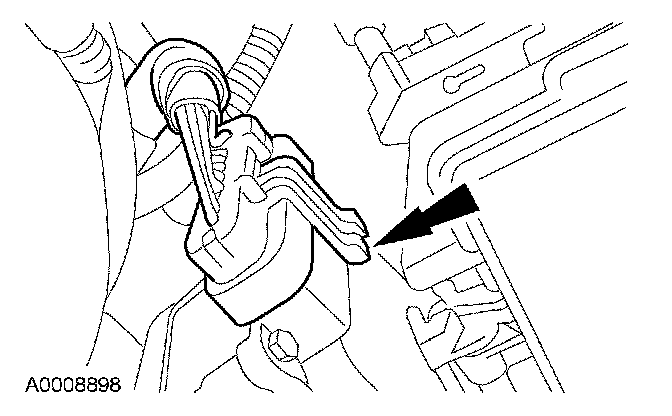

1. Disconnect the speed control actuator electrical connector.
- Press the connector tab.
- Disconnect the connector.







2. Release the speed control cable cap.

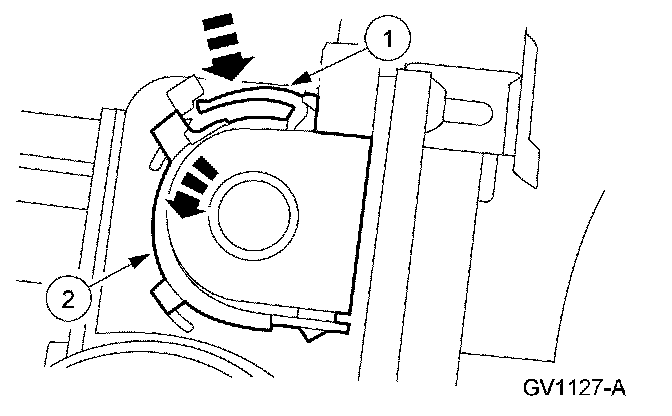

1 Press the speed control cable cap retaining tab.
2 Rotate the speed control cable cap counterclockwise and pull the cable cap away from the actuator housing.







3. Disconnect the speed control cable.

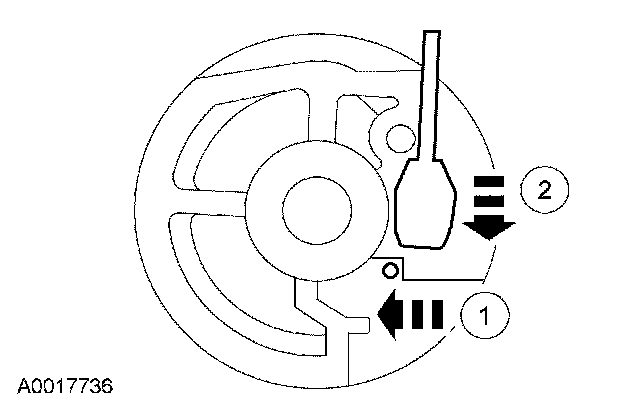

1 Press the spring retainer.
2 Slide the core wire end out of the speed control actuator pulley and disconnect the speed control actuator cable.

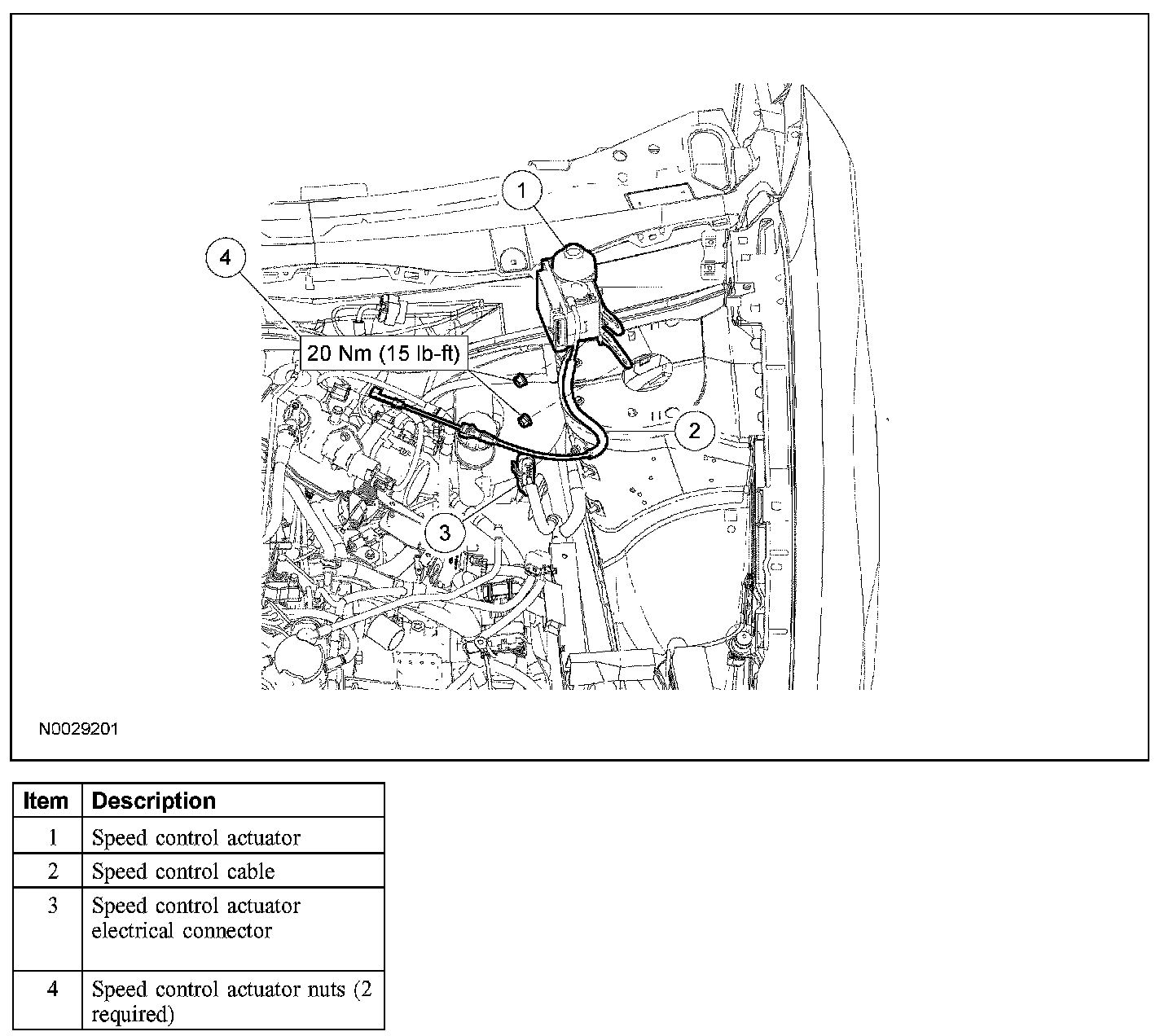

4. Remove the 2 nuts and the speed control actuator.
- To install, tighten to 20 Nm (15 lb-in).

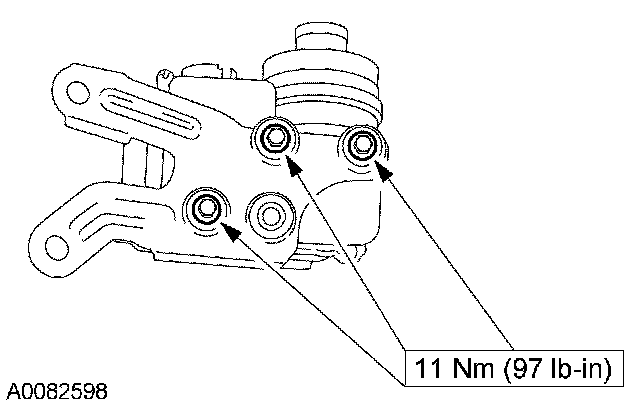

5. Remove the bracket from the speed control actuator.
- To install, tighten to 11 Nm (97 lb-in).

6. To install, reverse the removal procedure.
