Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ENGINE COOLANT TEMPERATURE (ECT) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Drain the cooling system.
3. Disconnect the engine coolant temperature (ECT) sensor electrical connector.

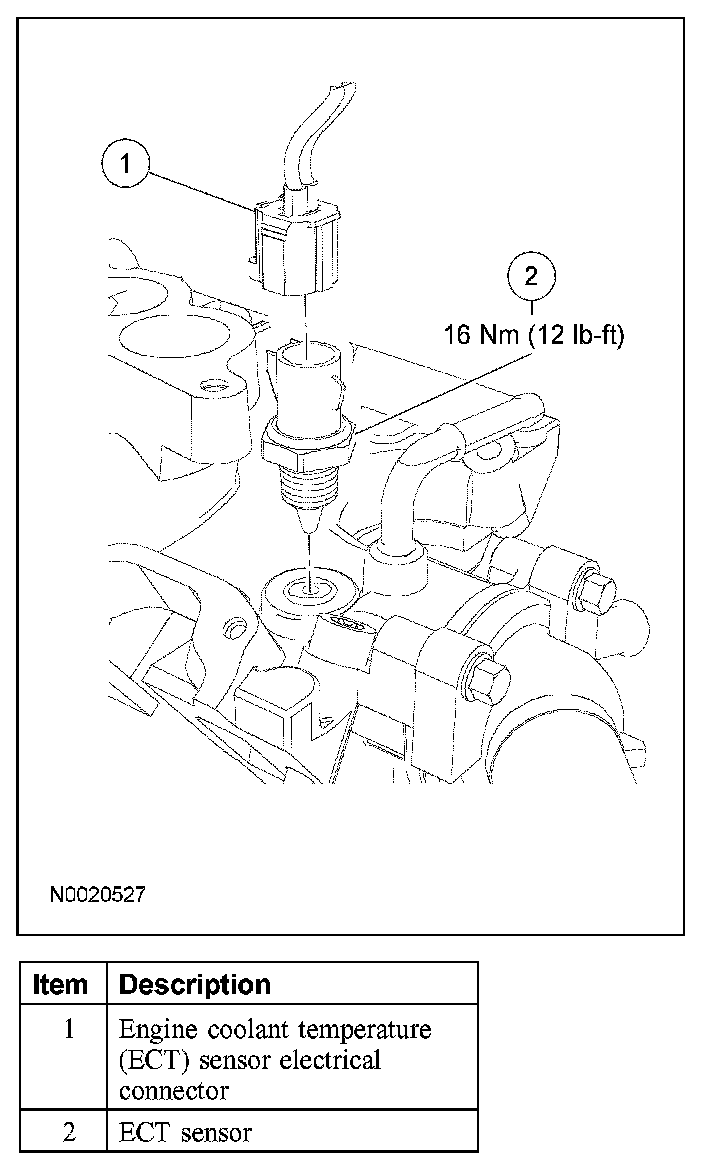

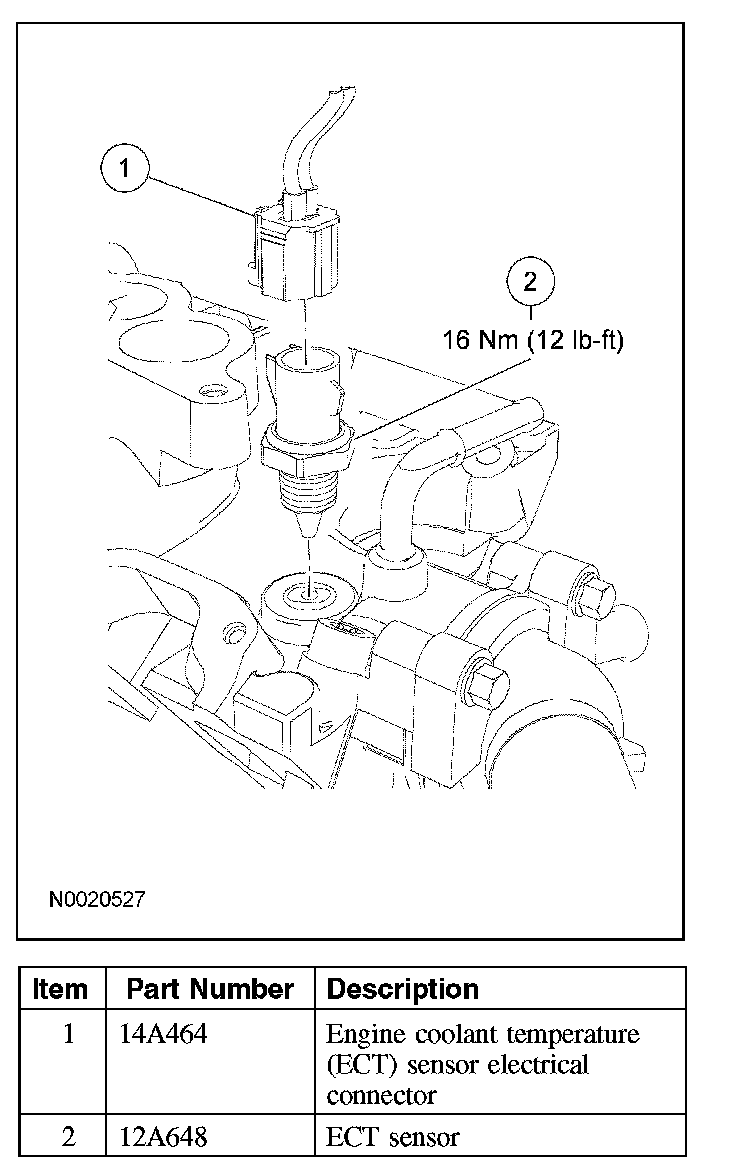

4. Remove the ECT sensor.
- To install, tighten to 16 Nm (12 lb-ft).

5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
