Audio Control Switch / Climate Control Switch Connector

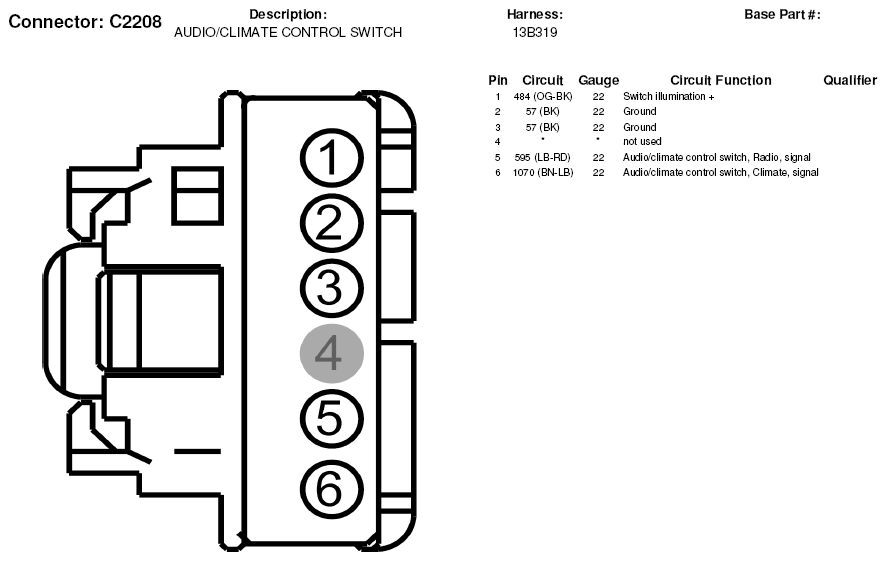

Fig 1: Audio Control Switch / Climate Control Switch Connector End View (C2208)
Courtesy of FORD MOTOR CO.
