Powertrain Control Module Connectors

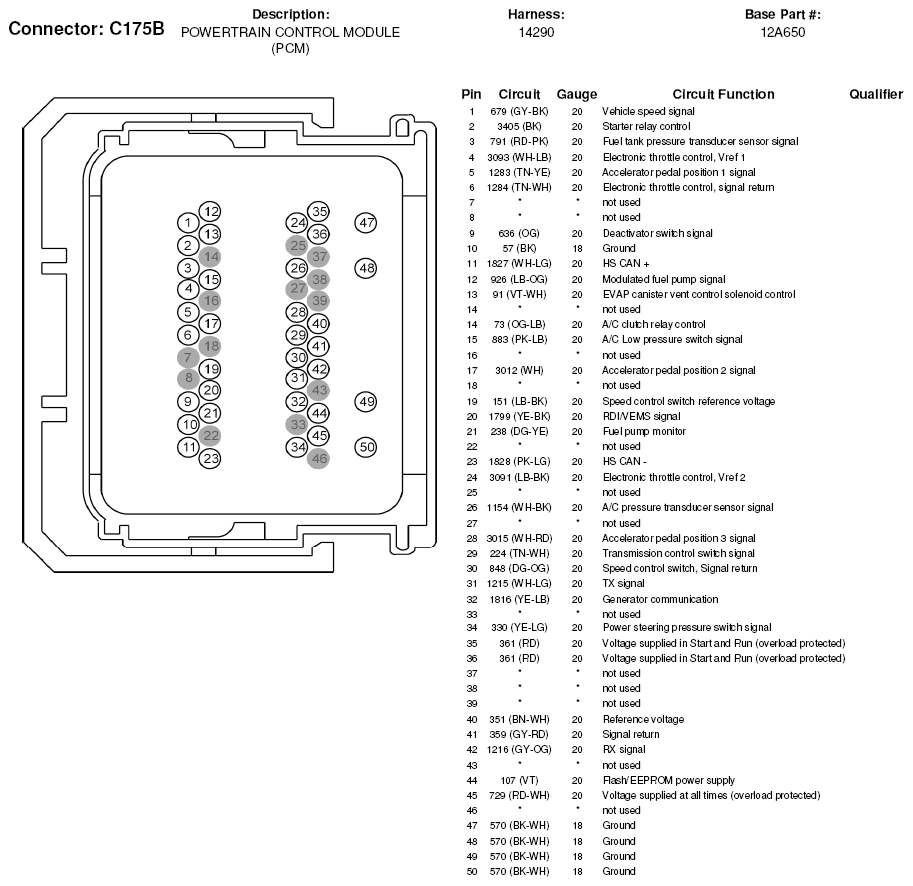

Fig 1: Powertrain Control Module Connector End View (C175B)
G05177994Courtesy of FORD MOTOR CO.

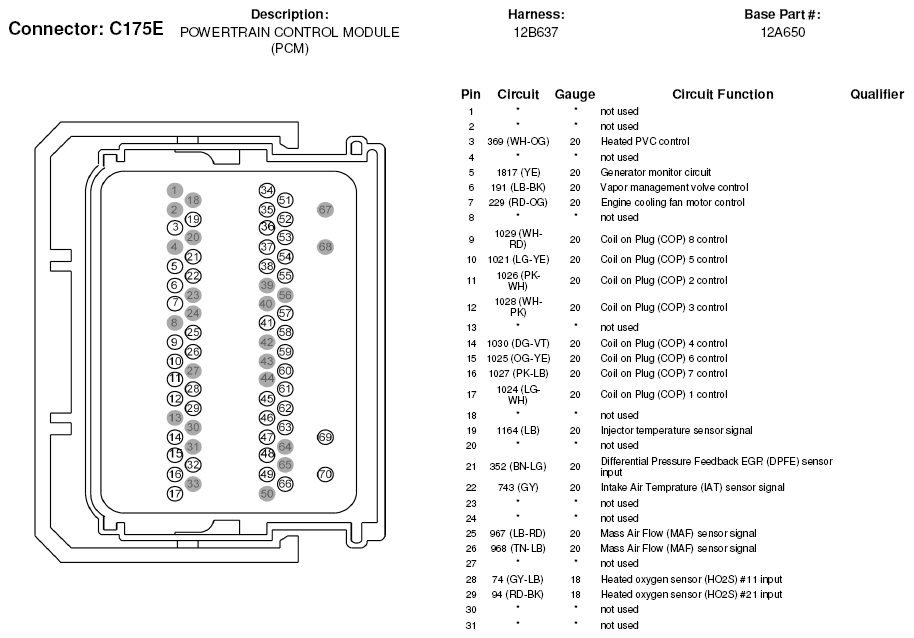

Fig 2: Powertrain Control Module Connector End View (C175E) (1 Of 2)
G05177995Courtesy of FORD MOTOR CO.

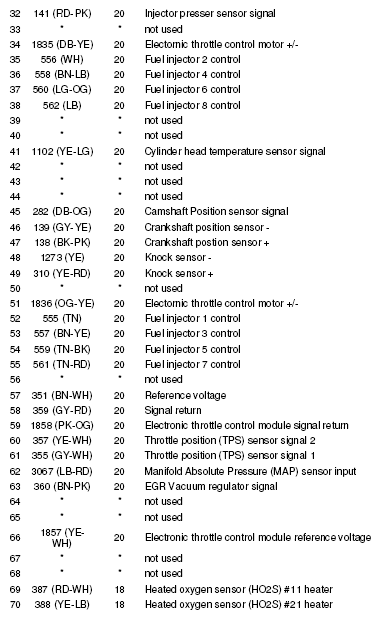

Fig 3: Powertrain Control Module Connector End View (C175E) (2 Of 2)
G05177996Courtesy of FORD MOTOR CO.

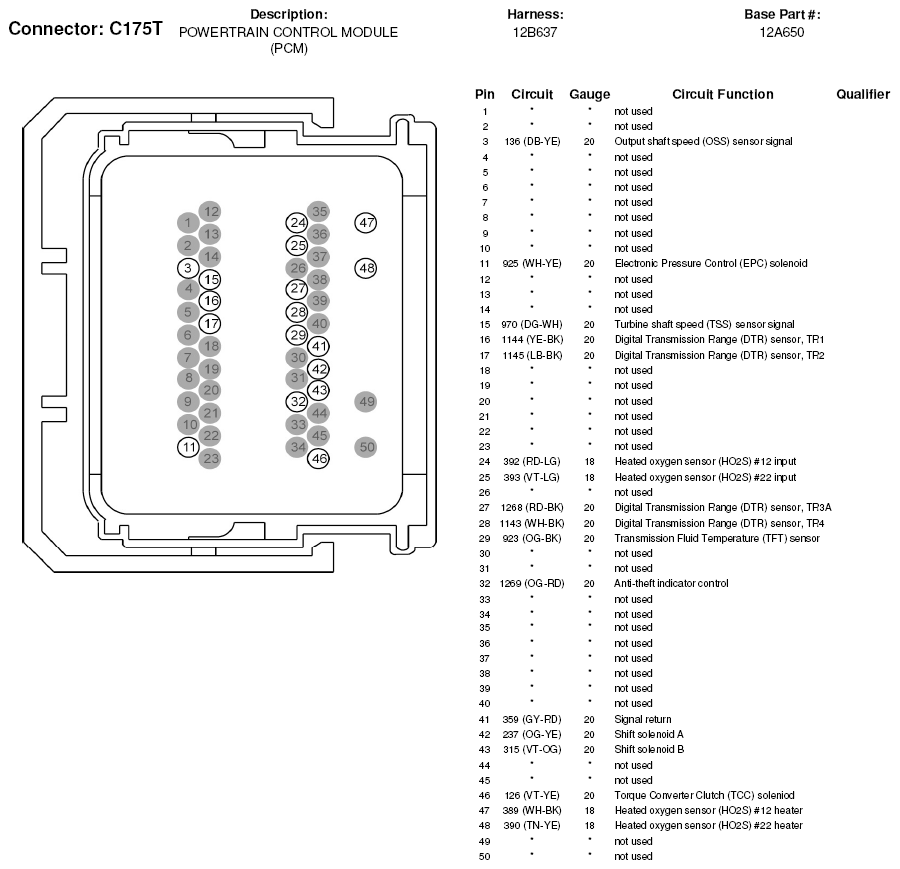

Fig 4: Powertrain Control Module Connector End View (C175T)
G05177997Courtesy of FORD MOTOR CO.
