Exhaust Gas Recirculation (EGR) System Components - Exploded View

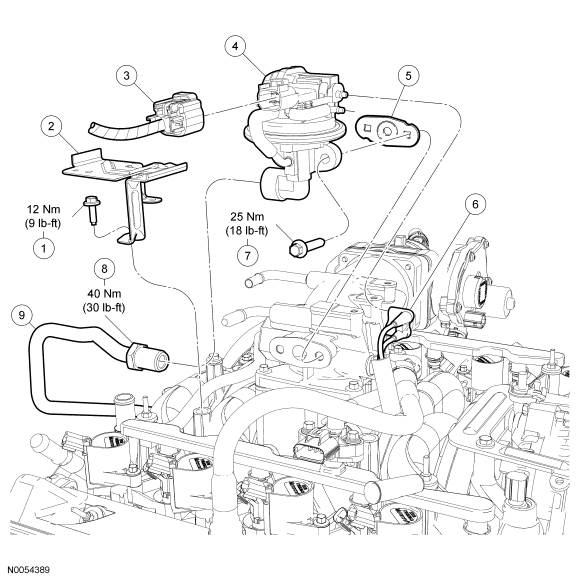

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807309S	Intake manifold shield retaining bolt (2 required)
2	9F460A	Intake manifold shield
3	14A464	Exhaust gas recirculation (EGR) system module electrical connector
4	9D475	EGR system module
5	9D476	EGR system module gasket
6	9E499	EGR vacuum connector
7	-	EGR system module retaining bolt (2 required)
8	-	EGR tube fitting (part of 9D475)
9	9D477	EGR tube

1. For additional information, refer to the procedures in this article.
