Exhaust System - Exploded View

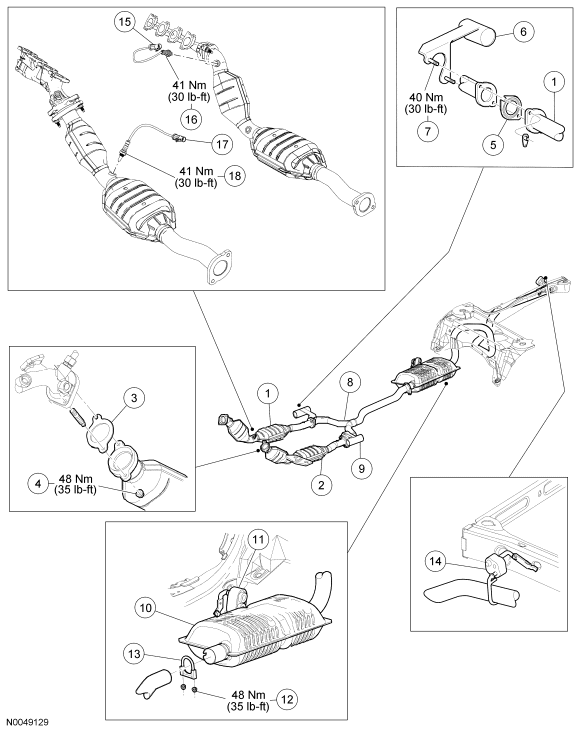

Fig 1: Exploded View Of Exhaust System - Single Exhaust With Torque Specifications

GF0014189

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5E212	Catalytic converter, RH
2	5E214	Catalytic converter, LH
3	5F263	Gasket
4	W705443	Catalytic converter-to-exhaust manifold nut (4 required)
5	5E241	Gasket
6	5F240	Damper, RH (except police vehicles)
7	56143	Catalytic converter-to-exhaust inlet pipe bolt (4 required)
8	5246	Exhaust inlet pipe
9	5F240	Damper, LH (except police vehicles)
10	5C258	Muffler
11	5A262	Muffler isolator and bracket
12	N802771	Clamp nut (2 required)
13	N802771	Clamp
14	5256	Tailpipe isolator and bracket
15	14A464	Heated oxygen sensor (HO2S) electrical connector (2 required)
16	9F472	HO2S (2 required)
17	14A464	Catalyst monitor sensor (CMS) electrical connector (2 required)
18	9G444	CMS (2 required)

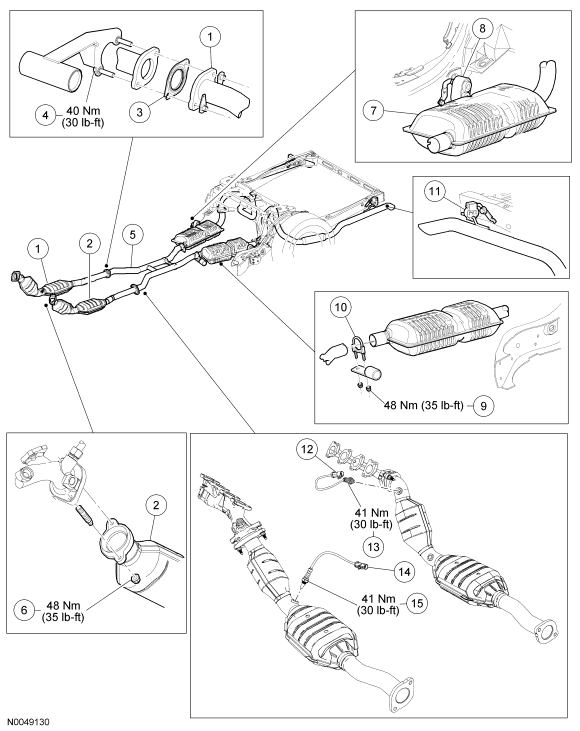

Fig 2: Exploded View Of Exhaust System - Dual Exhaust With Torque Specifications

GF0014190

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5E212	Catalytic converter, RH
2	5E214	Catalytic converter, LH
3	5F263	Gasket
4	56143	Catalytic converter-to-exhaust inlet pipe bolt (4 required)
5	5246	Exhaust inlet pipe
6	W705443	Catalytic converter-to-exhaust manifold nut (4 required)
7	5C258	Muffler (2 required)
8	5A262	Muffler isolator and bracket (2 required)
9	N802771	Clamp nut (4 required)
10	N802771	Clamp (2 required)
11	5256	Tailpipe isolator and bracket (2 required)
12	14A464	HO2S electrical connector (2 required)
13	9F472	HO2S (2 required)
14	14A464	CMS electrical connector (2 required)
15	9G444	CMS (2 required)

For additional information, refer to the procedures.
