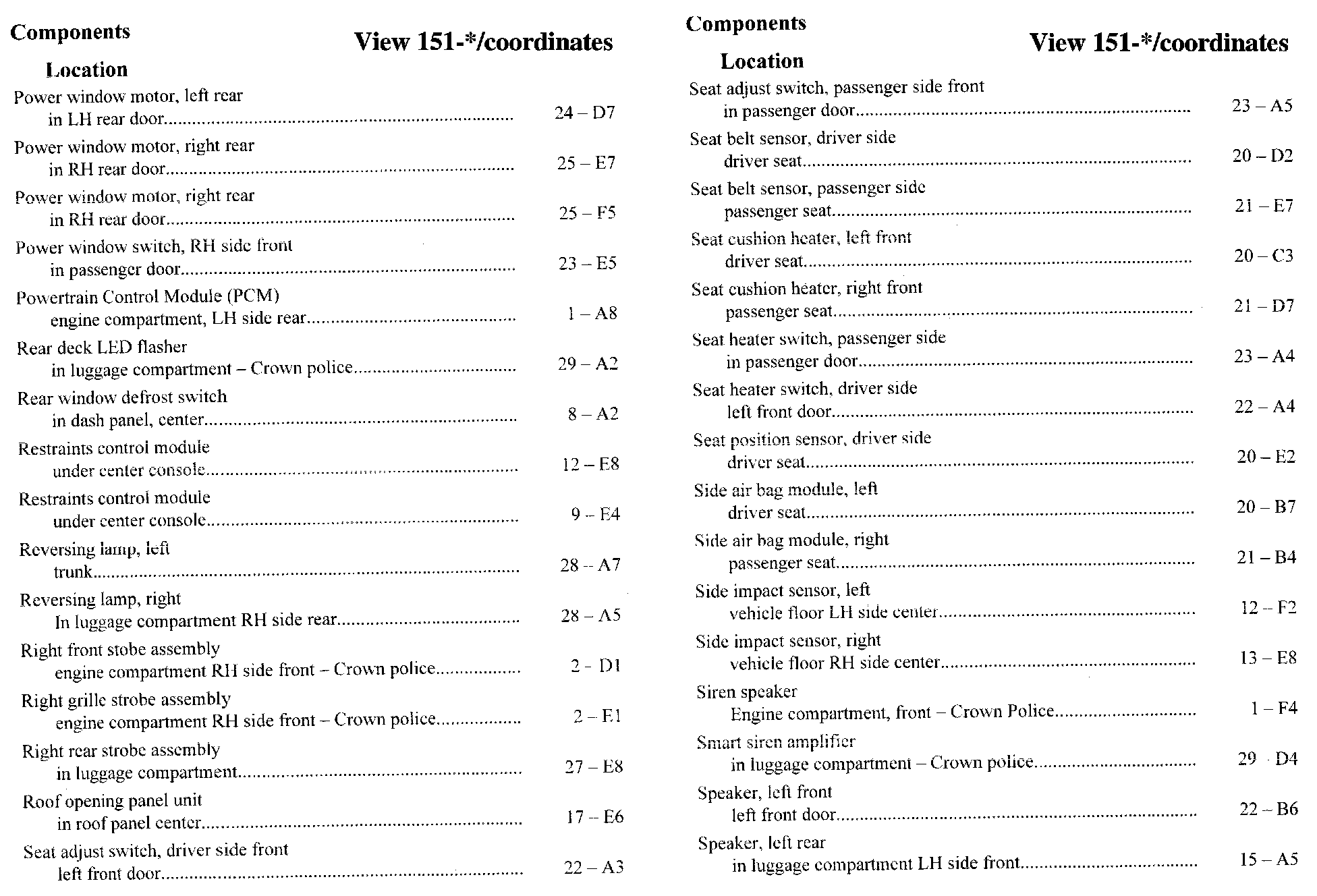

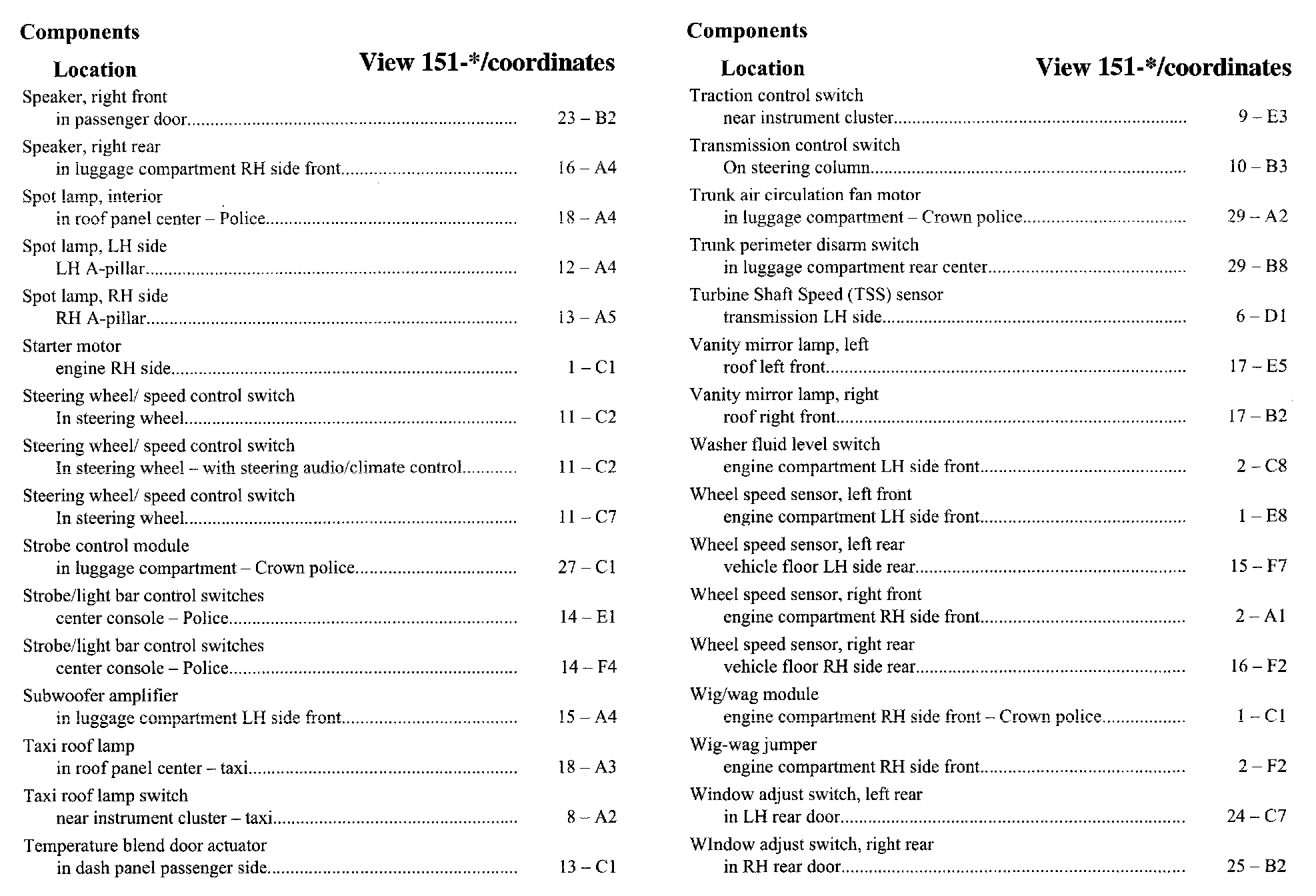

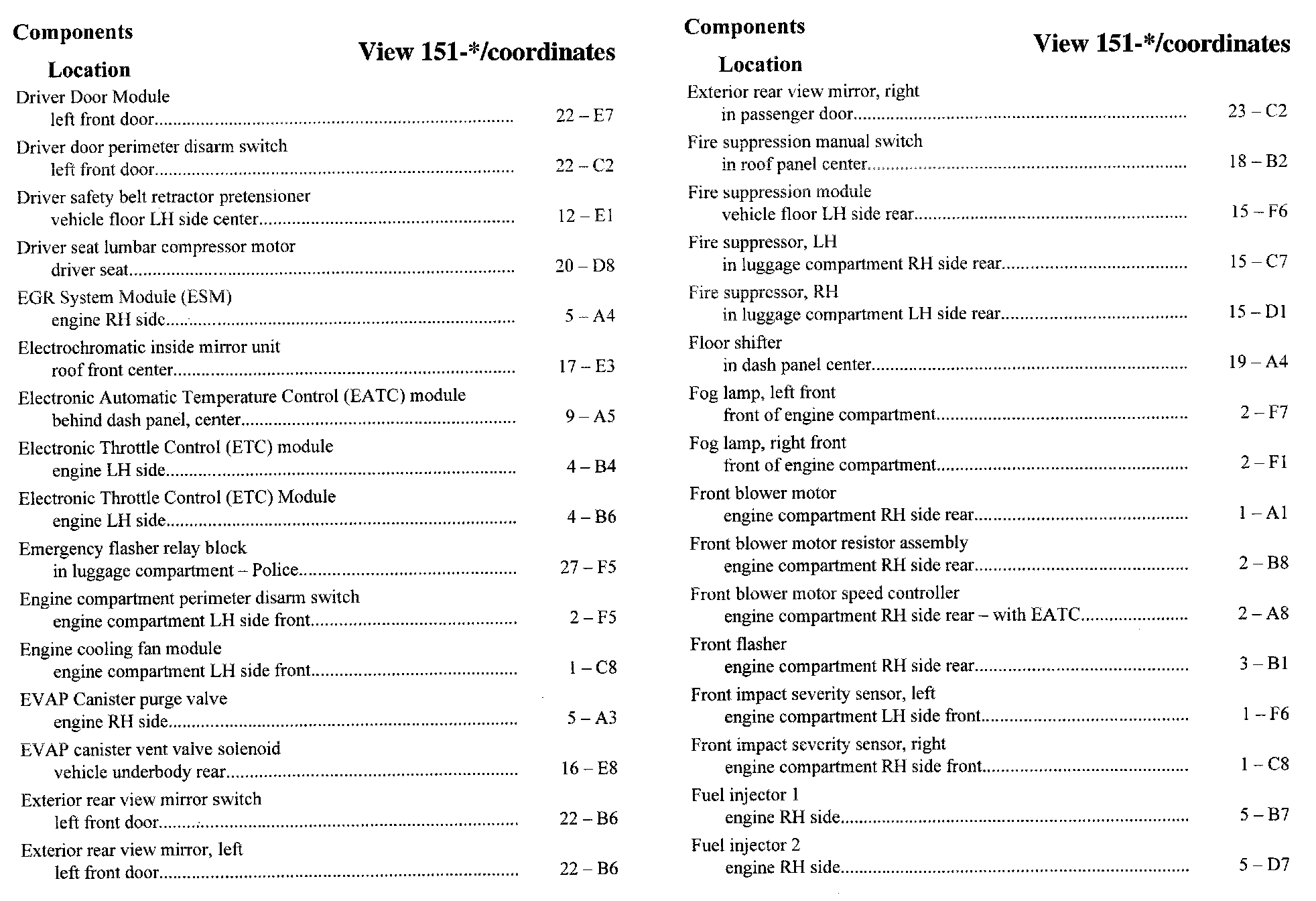

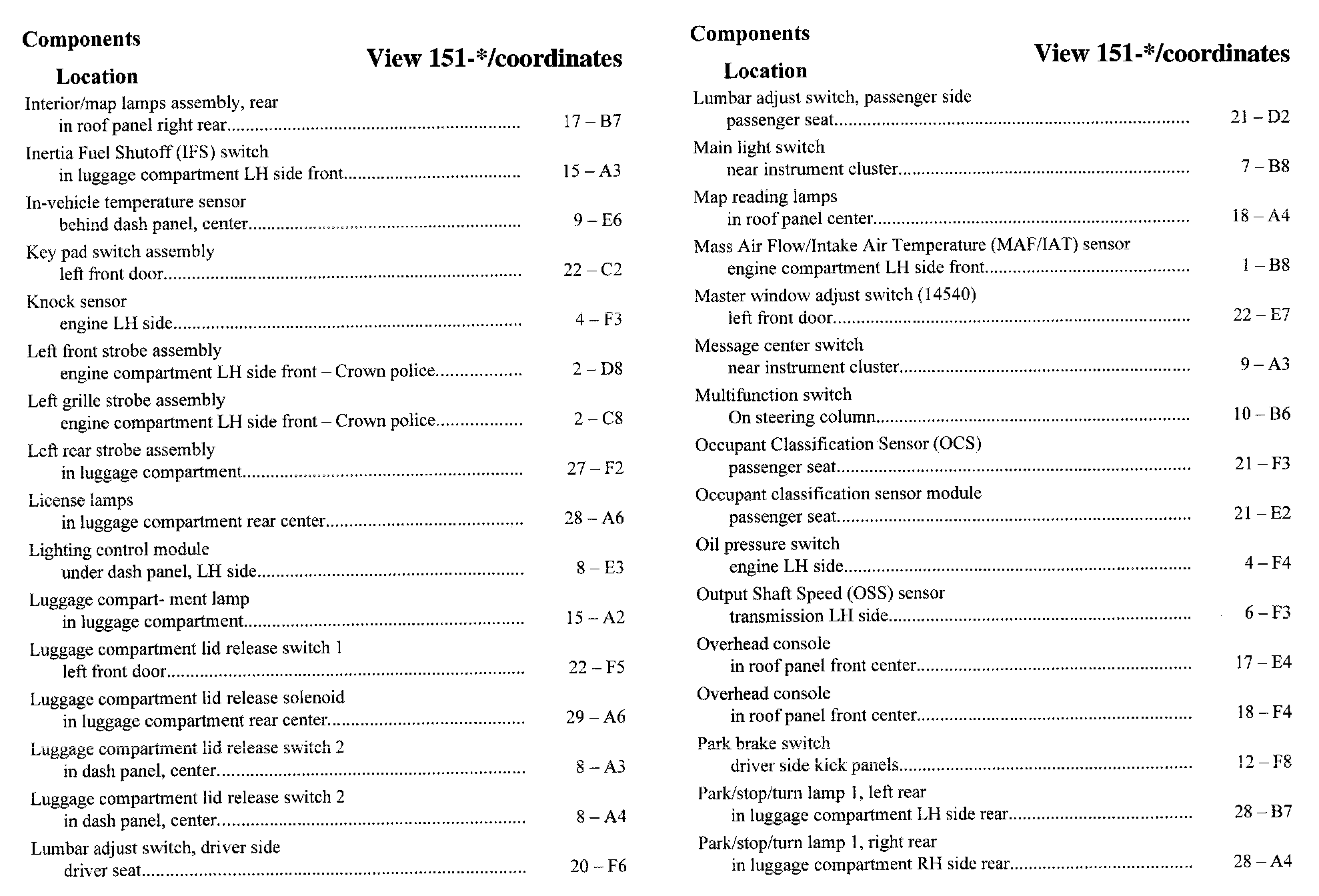

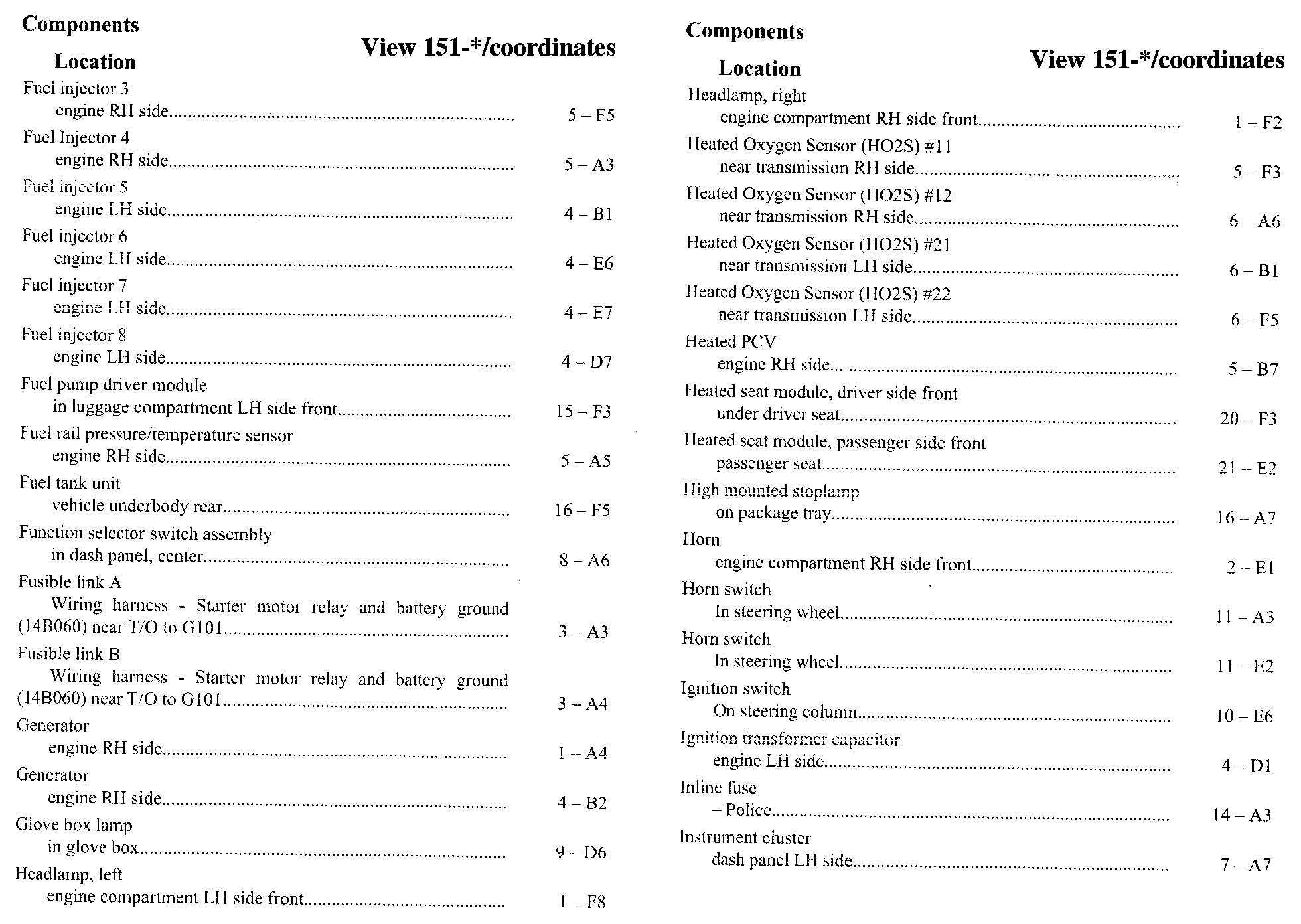

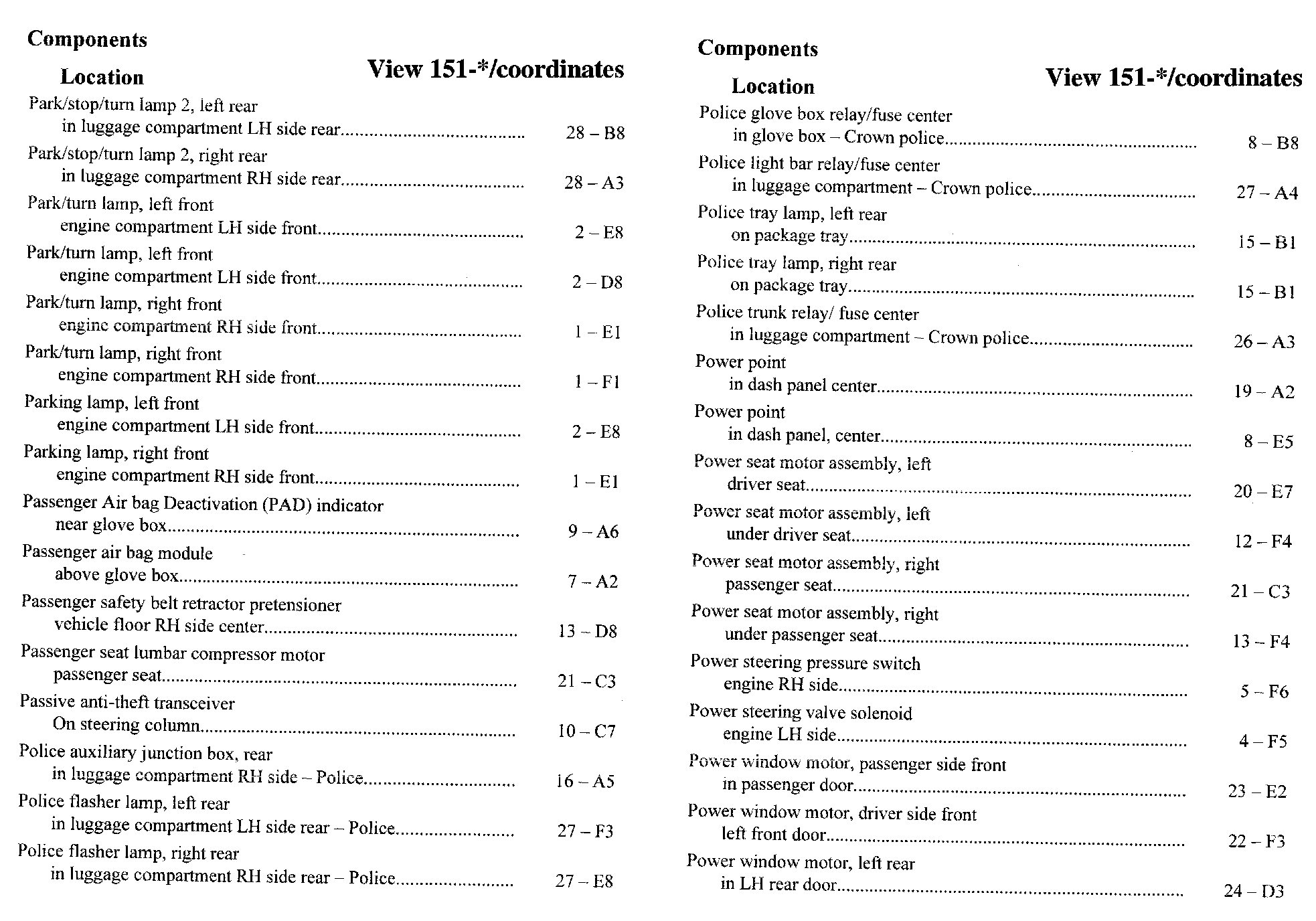

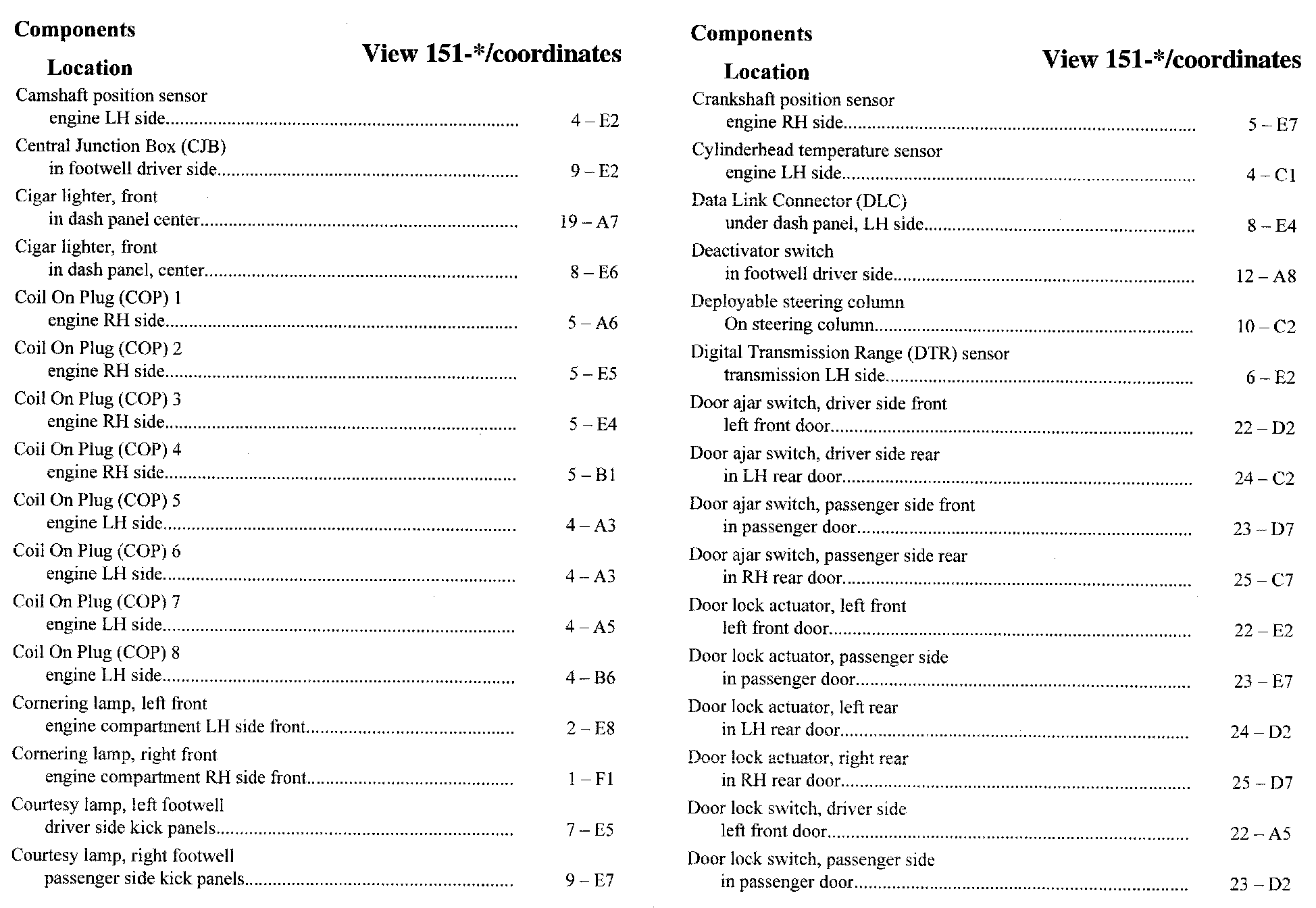

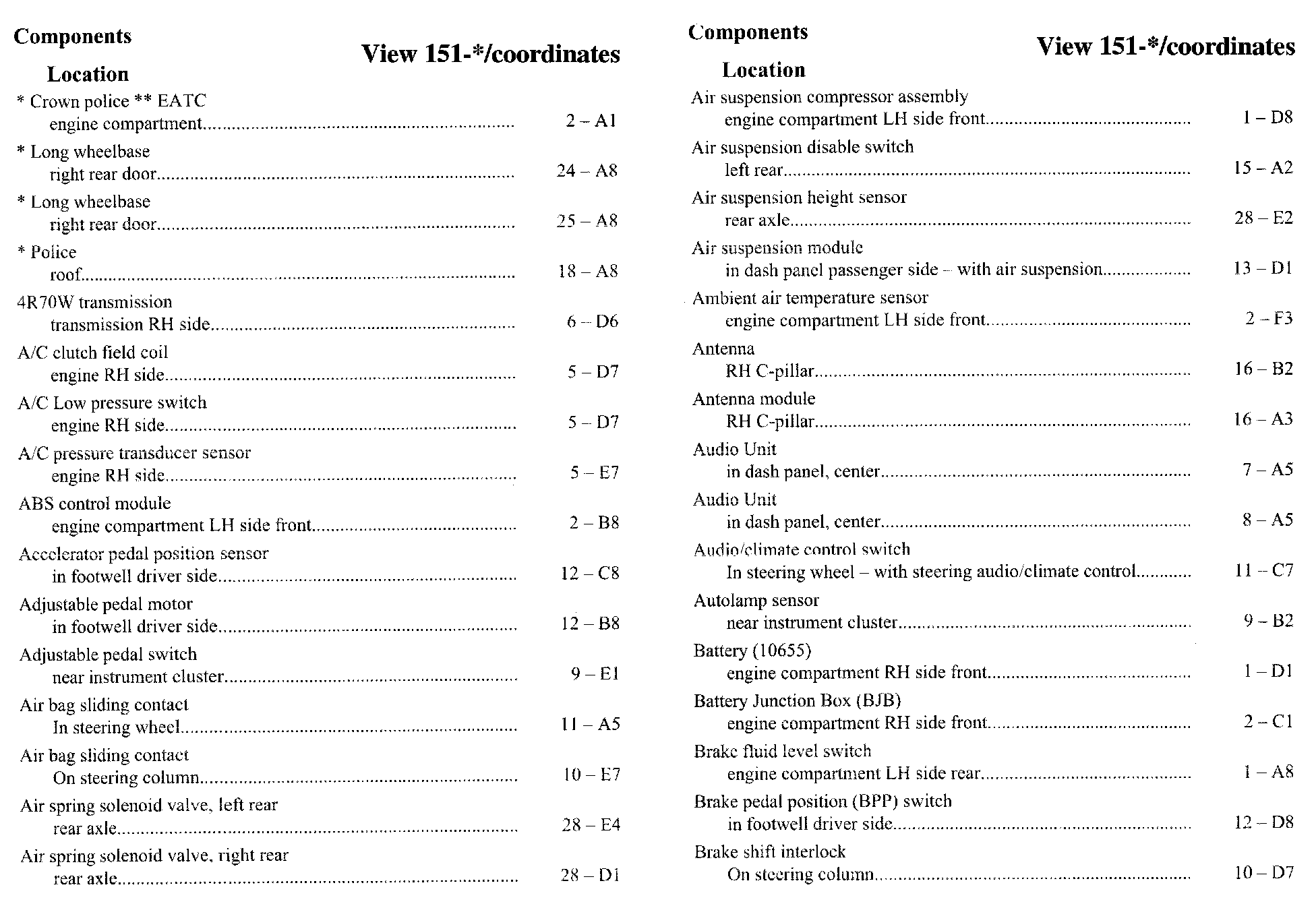

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

Cr-Br:

Ca-Do:

Dr-Fu:

Fu-In:

In-Pa:

Pa-Po:

Po-Sp:

Sp-WI:

Wi-Wi:
