Home >> Ford >> 2007 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Locations >> Lighting Control Module

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Lighting Control Module

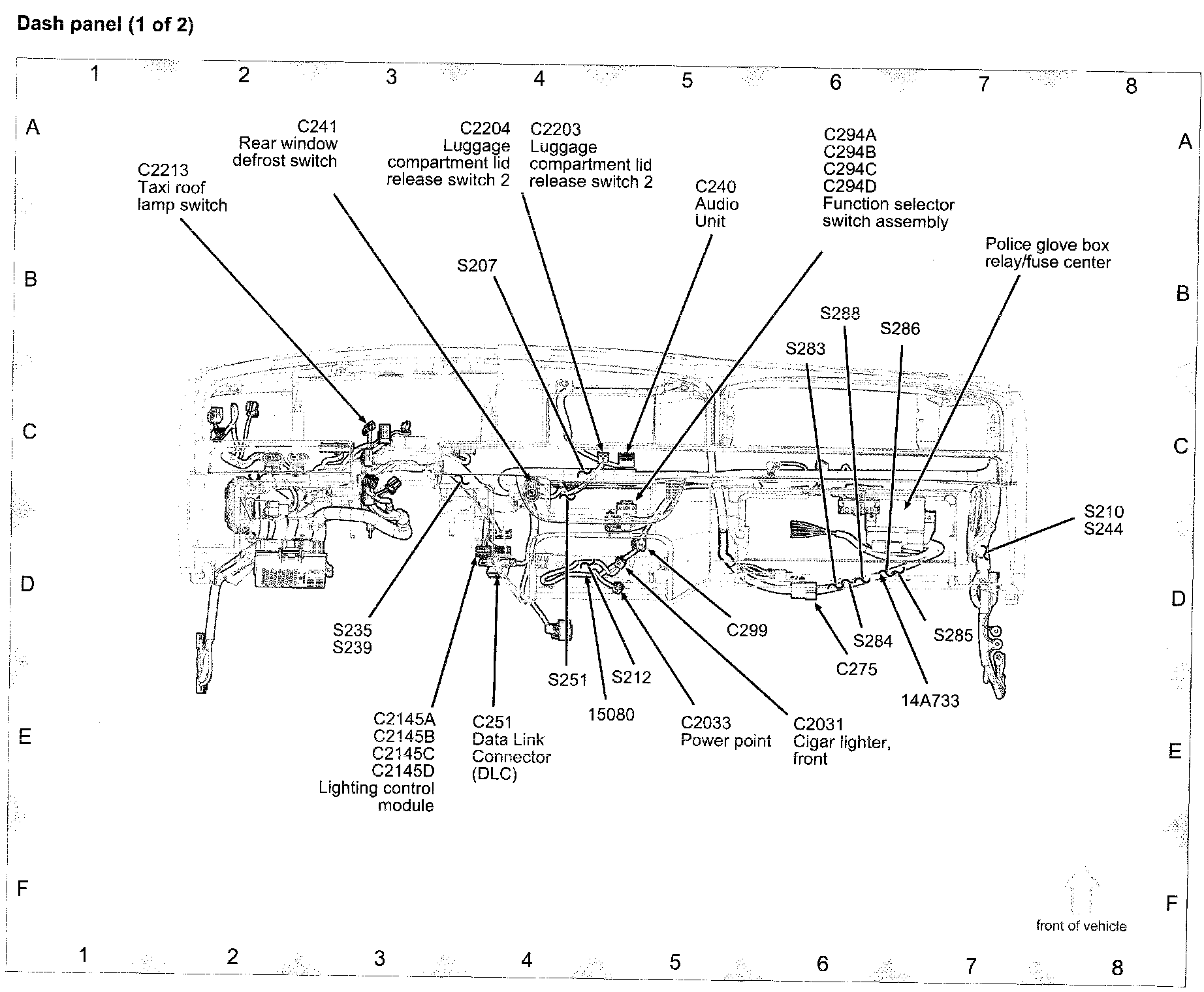

View 151-8 (Dash Panel (1 0f 2)):
