System Specifications

Timing chain tensioner bolts 25 Nm (18 ft. lbs.)

Crankshaft pulley bolt
Step 1: 90 Nm (66 ft. lbs.)
Step 2: Loosen the bolt.
Step 3: 50 Nm (37 ft. lbs.)
Step 4: additional 90 degrees

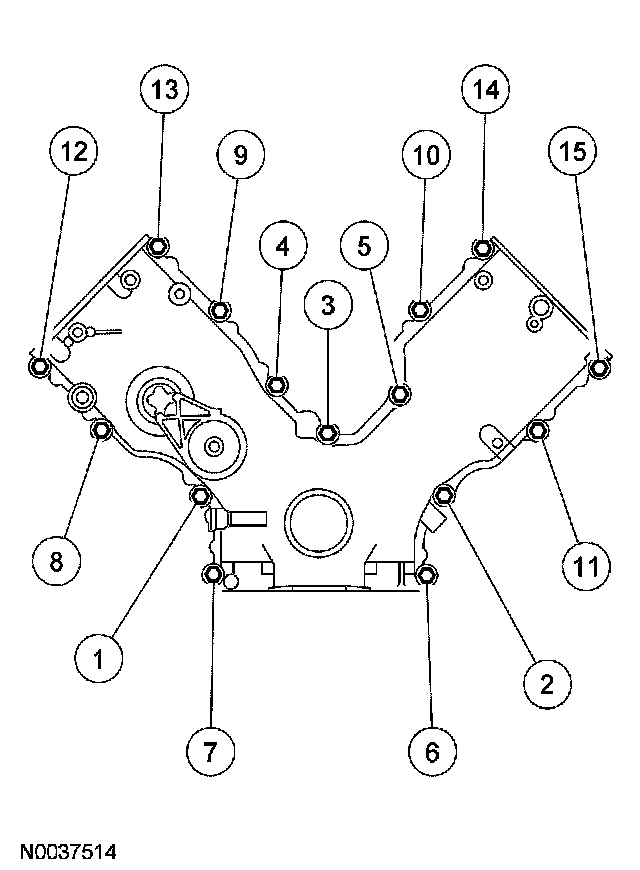

Front cover fasteners 25 Nm (18 ft. lbs.)





Front oil pan bolts
Stage 1: 20 Nm (15 ft. lbs.)
Stage 2: additional 60 degrees
