Anti-Lock Brake System Control Module Connector

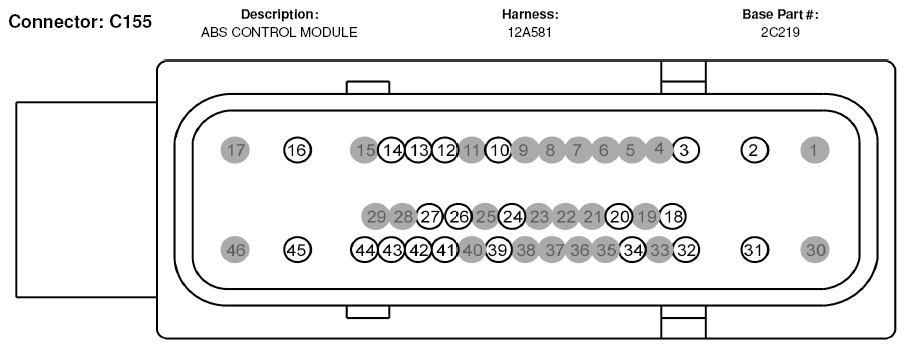

Fig 1: Anti-Lock Brake System Control Module Connector End View (C155) (1 of 2)
G05181157Courtesy of FORD MOTOR CO.

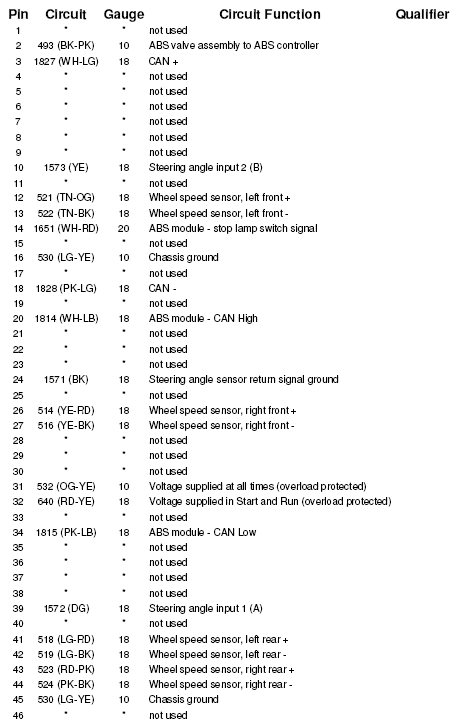

Fig 2: Anti-Lock Brake System Control Module Connector End View (C155) (2 of 2)
G05181158Courtesy of FORD MOTOR CO.
