Selector Lever: Notes

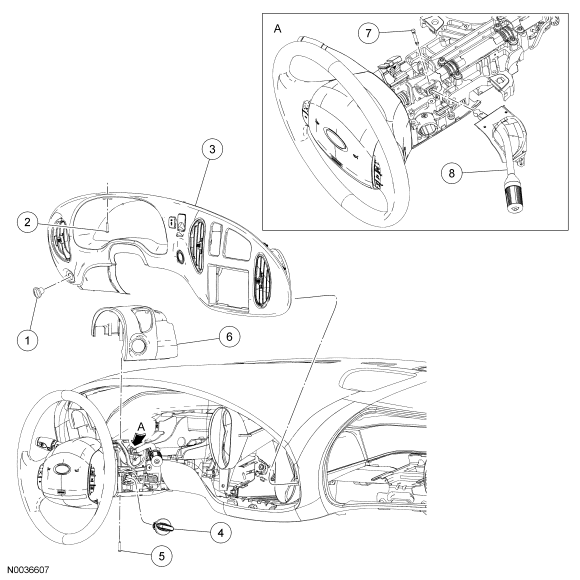

Fig 1: Exploded View Of Selector Lever
GF0012504Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11654 Headlamp switch knob
2 - Screw (2 required)
3 6C24 Instrument panel cluster opening finish panel
4 7C24 Ignition lock cylinder
5 55929 Screw (3 required)
6 3530 Upper steering column shroud
7 76357 Selector lever pin
8 7202 Selector lever
