Powertrain Control Module (PCM): Notes

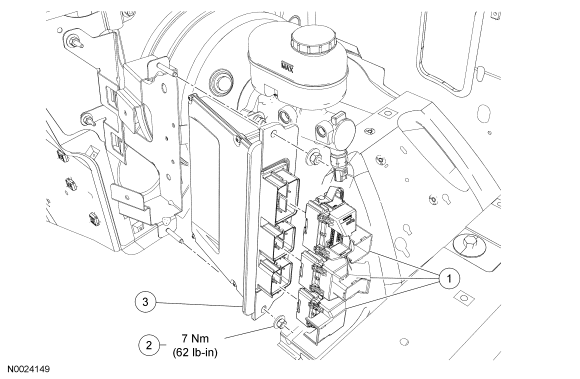

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications
GF0012070Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Powertrain control module (PCM) electrical connectors (3 required) (part of 12B637 and 12A581)
2 N621906 PCM nut (2 required)
3 12A651 PCM
