Fuel Injector Control Module Connector

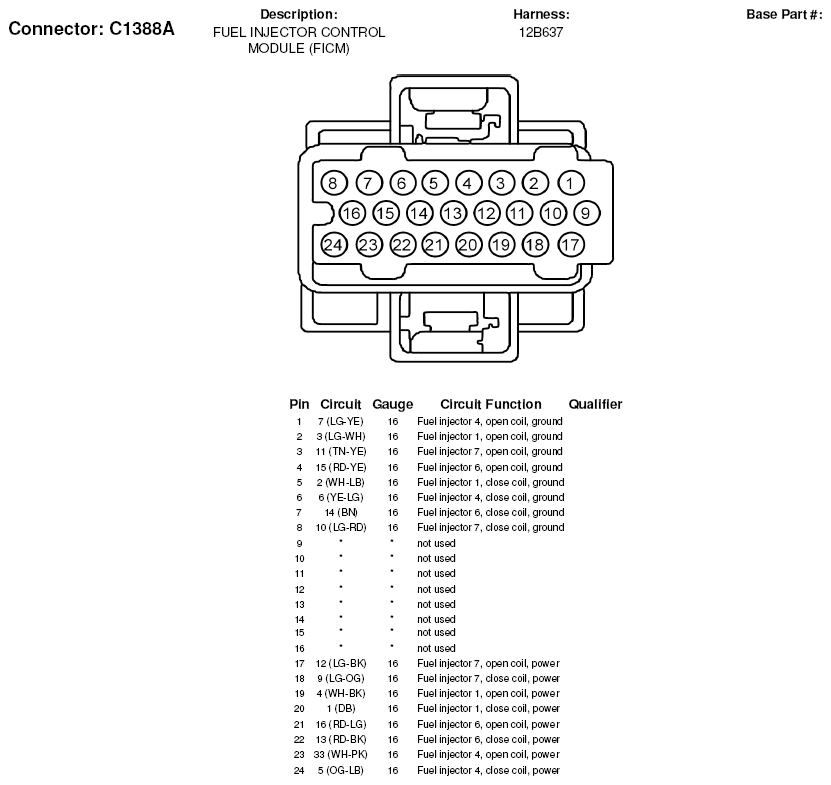

Fig 1: Fuel Injector Control Module Connector End View (C1388A)
Courtesy of FORD MOTOR CO.

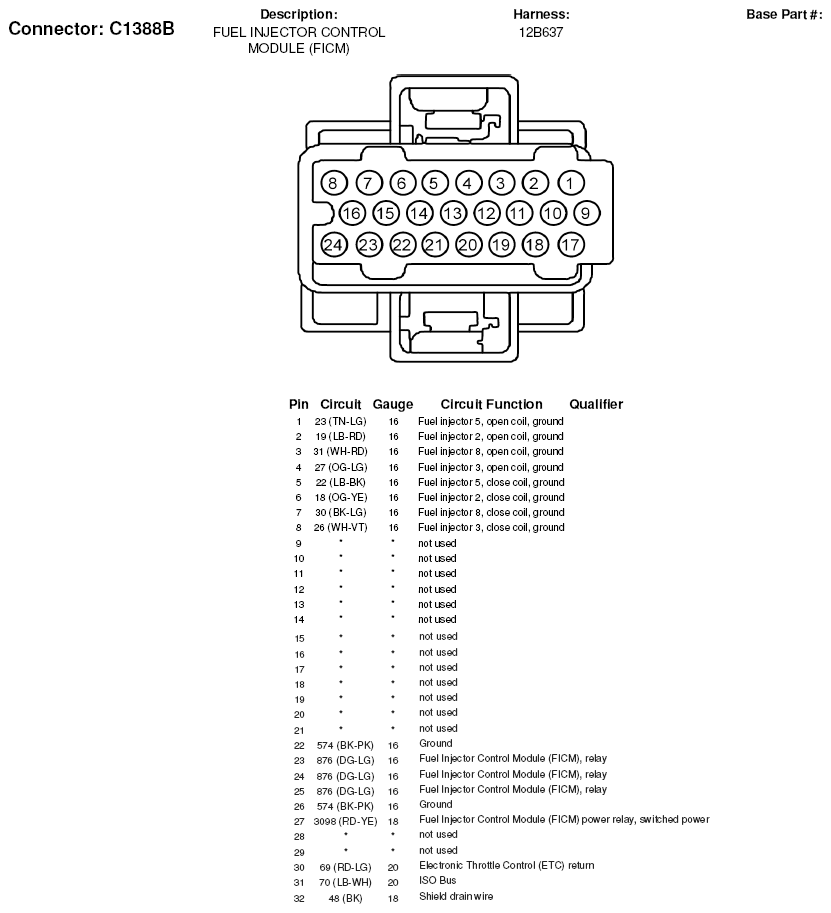

Fig 2: Fuel Injector Control Module Connector End View (C1388B)
Courtesy of FORD MOTOR CO.

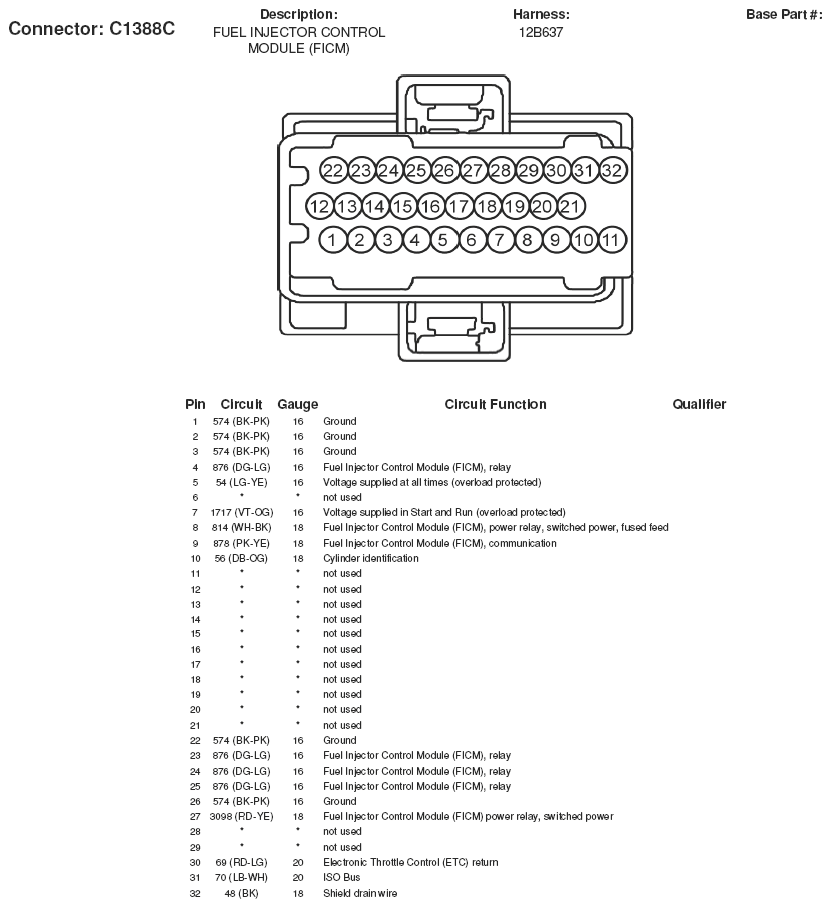

Fig 3: Fuel Injector Control Module Connector End View (C1388C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
