Powertrain Control Module Connectors

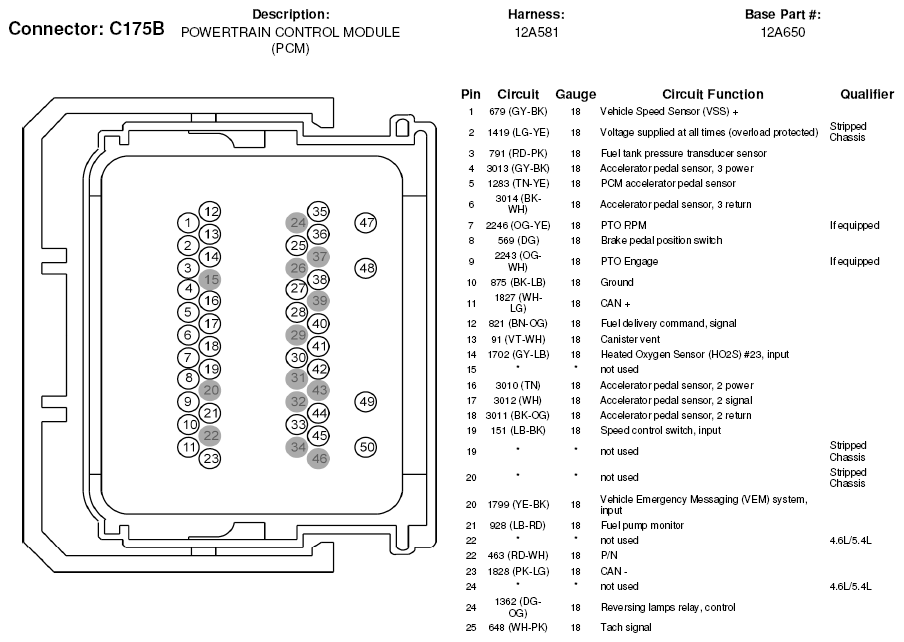

Fig 1: Powertrain Control Module Connector End View (C175B) (1 Of 2)
G05181164Courtesy of FORD MOTOR CO.

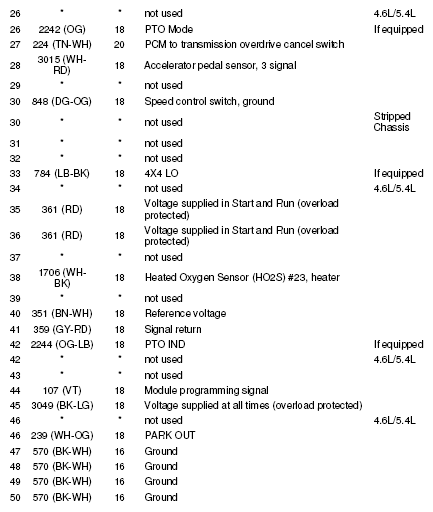

Fig 2: Powertrain Control Module Connector End View (C175B) (2 Of 2)
G05181165Courtesy of FORD MOTOR CO.

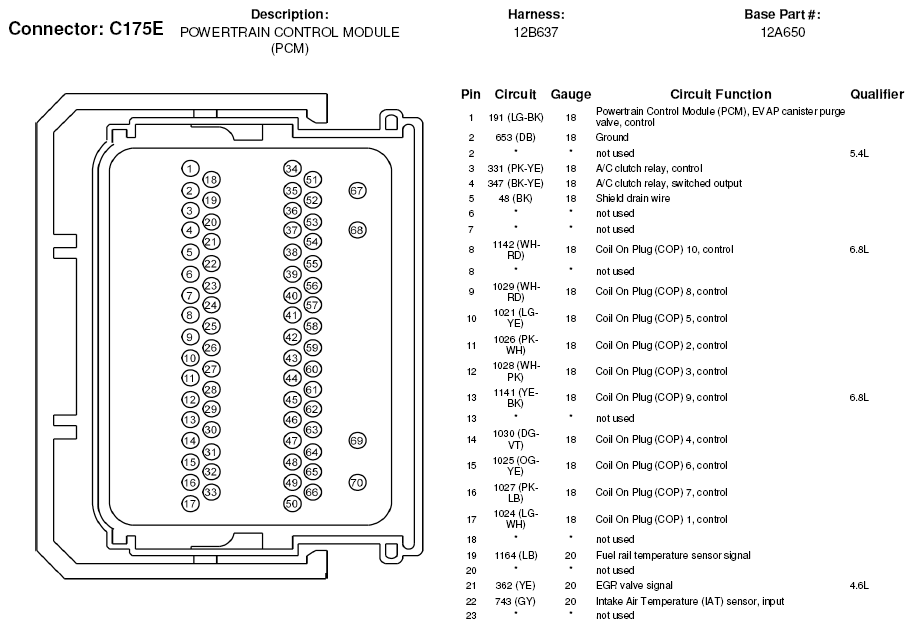

Fig 3: Powertrain Control Module Connector End View (C175E) (1 Of 2)
G05181166Courtesy of FORD MOTOR CO.

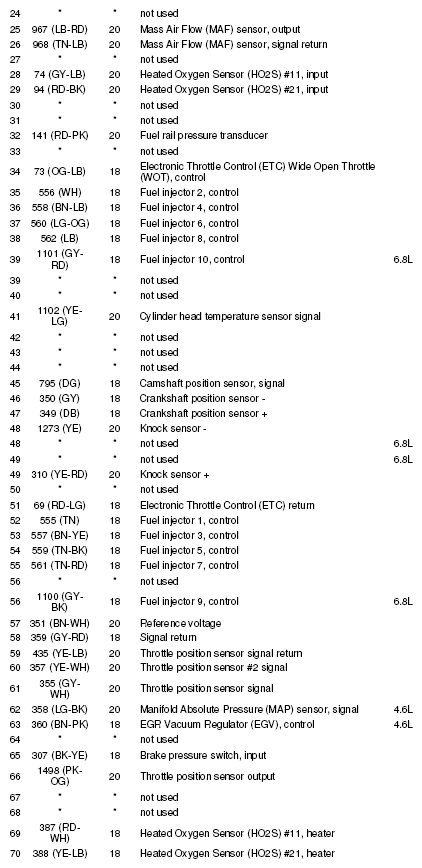

Fig 4: Powertrain Control Module Connector End View (C175E) (2 Of 2)
G05181167Courtesy of FORD MOTOR CO.

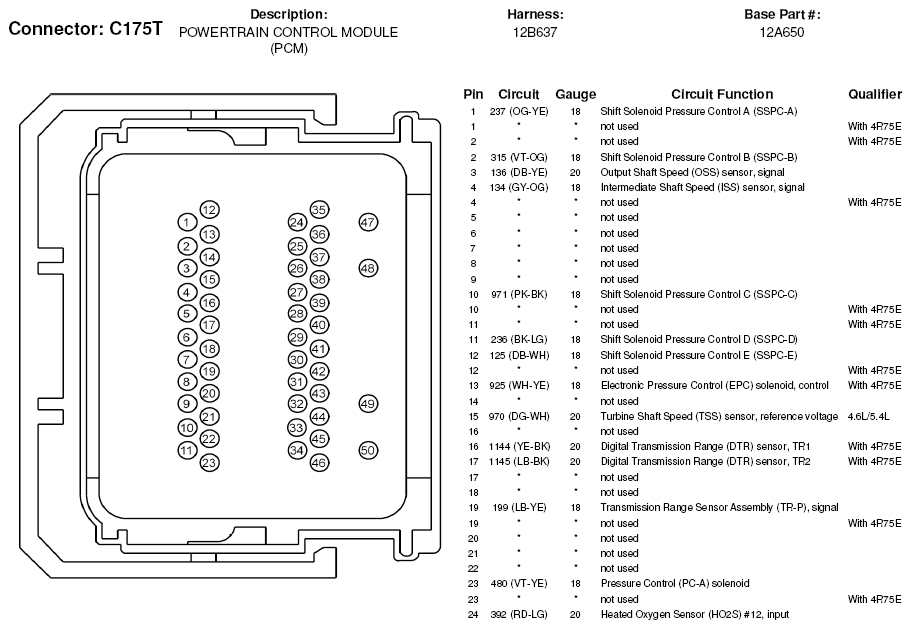

Fig 5: Powertrain Control Module Connector End View (C175T) (1 Of 2)
G05181168Courtesy of FORD MOTOR CO.

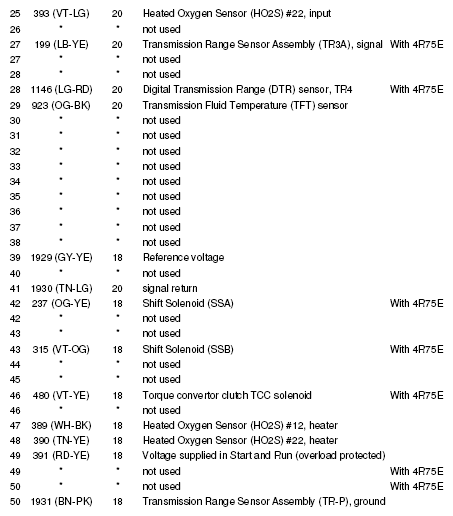

Fig 6: Powertrain Control Module Connector End View (C175T) (2 Of 2)
G05181169Courtesy of FORD MOTOR CO.

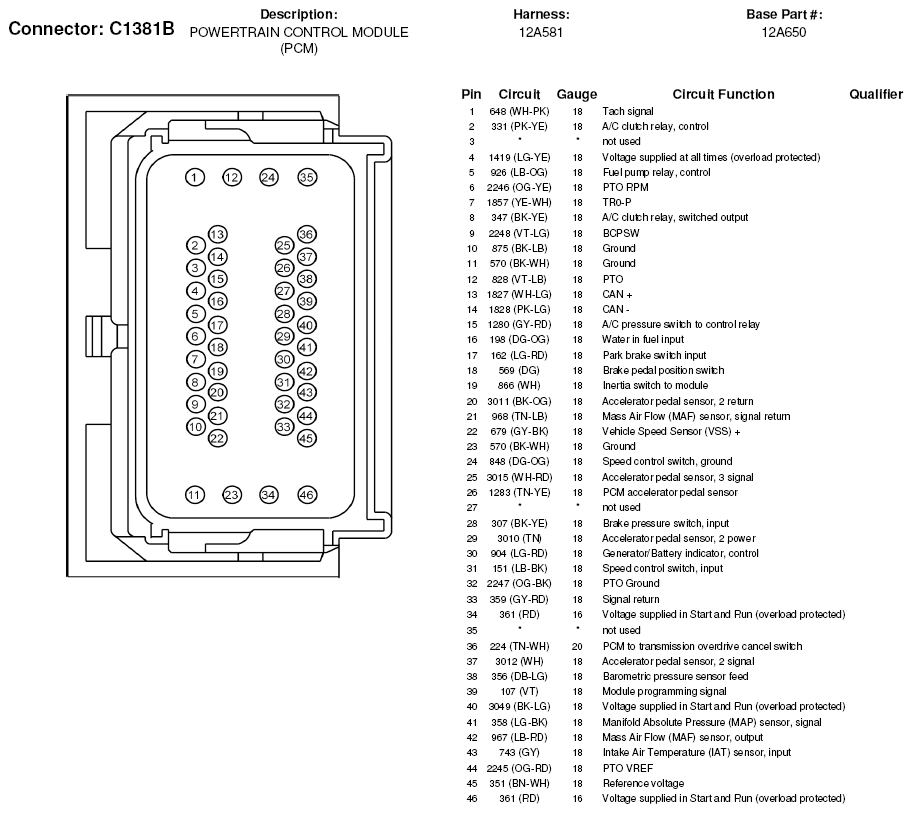

Fig 7: Powertrain Control Module Connector End View (C1381B)
G05181356Courtesy of FORD MOTOR CO.

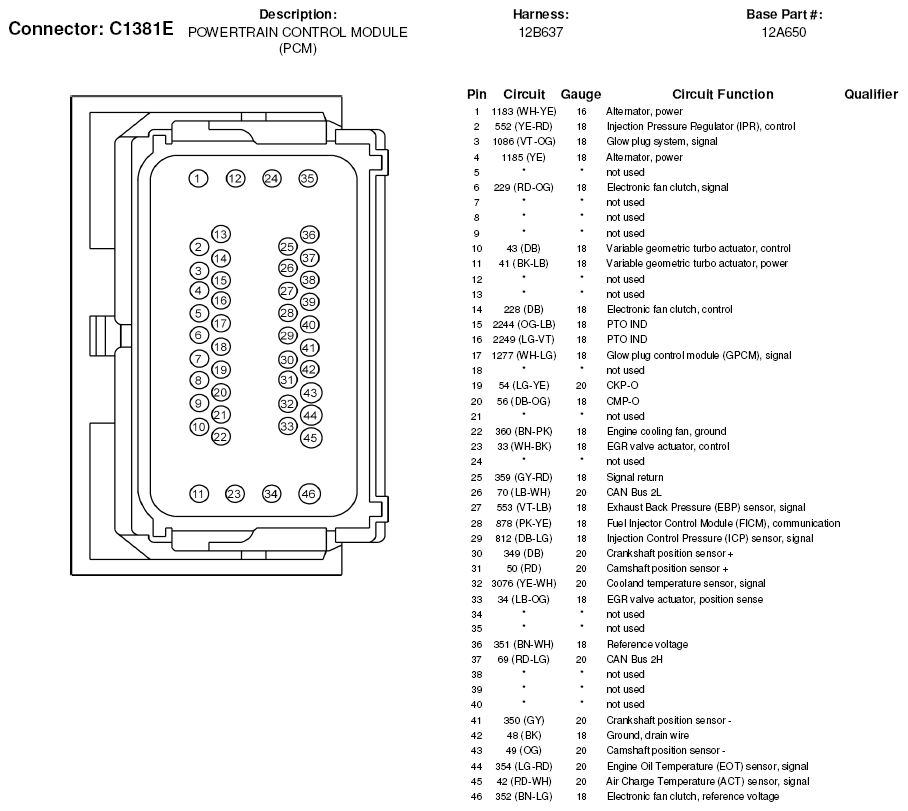

Fig 8: Powertrain Control Module Connector End View (C1381E)
G05181357Courtesy of FORD MOTOR CO.

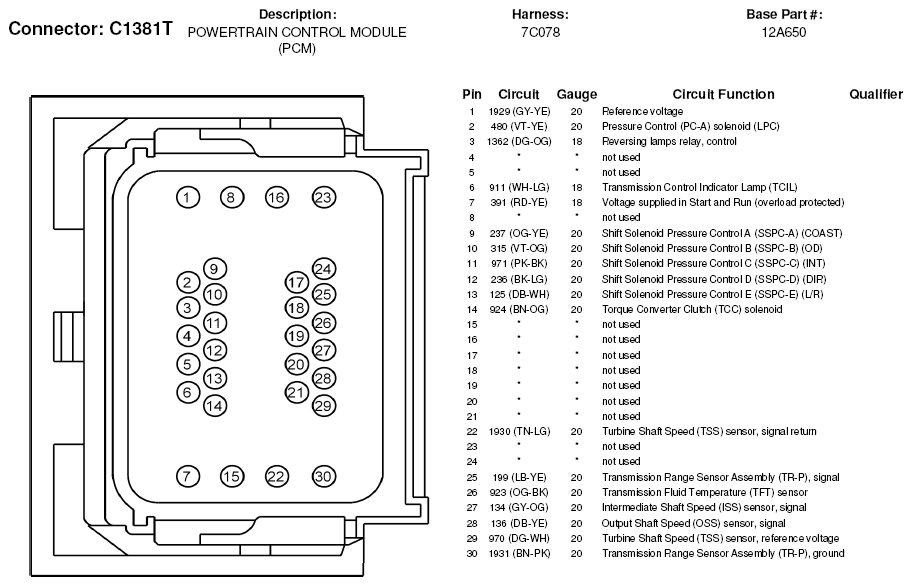

Fig 9: Powertrain Control Module Connector End View (C1381T)
G05181358Courtesy of FORD MOTOR CO.
