Vehicle Security Module Connector

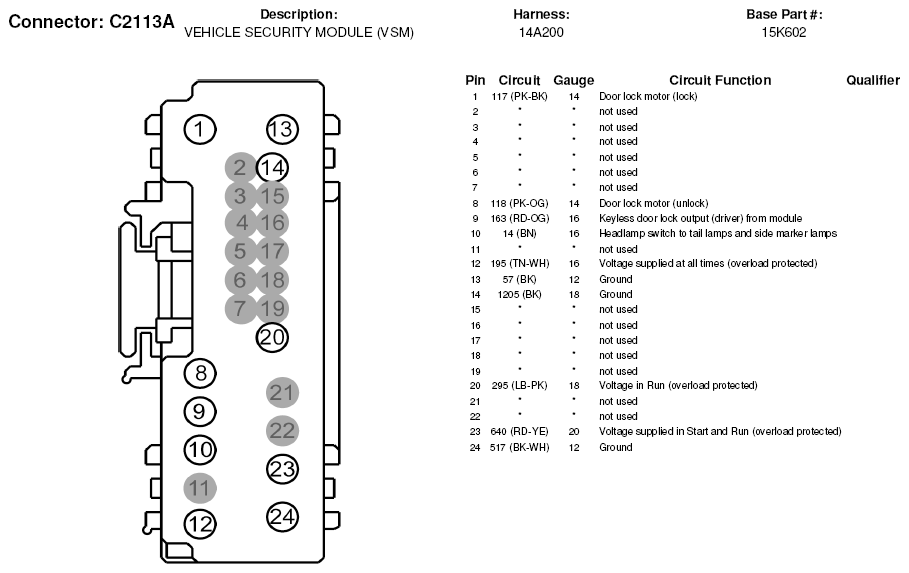

Fig 1: Vehicle Security Module Connector End View (C2113A)
G05181390Courtesy of FORD MOTOR CO.

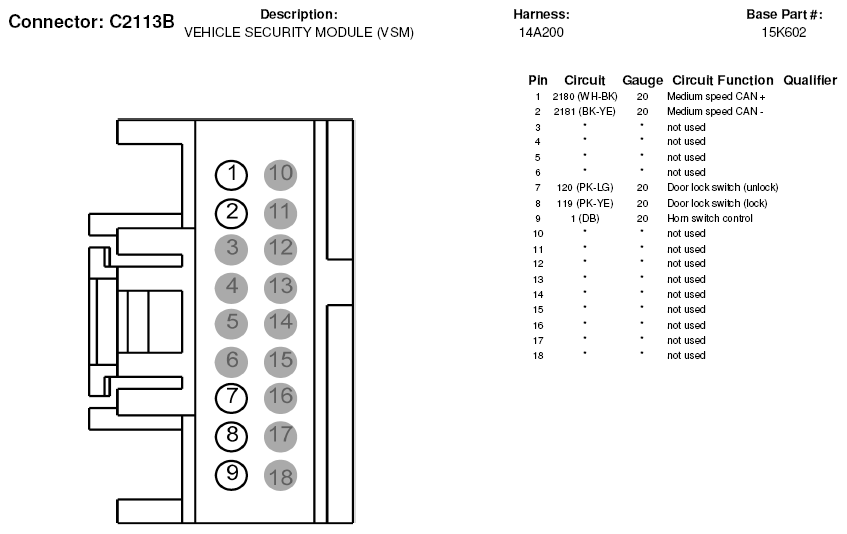

Fig 2: Vehicle Security Module Connector End View (C2113B)
G05181391Courtesy of FORD MOTOR CO.
