Solenoid Body: Notes
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

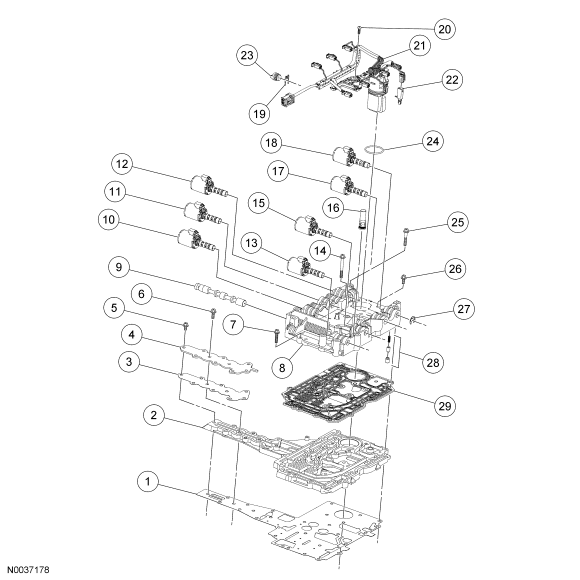

| Item | Part Number | Description |
|---|---|---|
| 1 | 7C155 | Solenoid body-to-case gasket |
| 2 | - | Ditch plate |
| 3 | 7H038 | Backing plate gasket |
| 4 | - | Backing plate |
| 5 | W300512 | Backing plate-to-manifold bolts |
| 6 | W500100-S300 | Backing plate-to-case bolts |
| 7 | N805326-S | Solenoid-to-case bolts |
| 8 | - | Manifold body |
| 9 | 7D376 | Manual valve |
| 10 | 7J136 | Low reverse clutch solenoid SSPC-E |
| 11 | 7J136 | Direct clutch solenoid SSPC-D |
| 12 | 7J136 | Intermediate clutch solenoid SSPC-C |
| 13 | 7J136 | Coast clutch solenoid SSPC-A |
| 14 | W708500-S300 | Solenoid-to-case bolt |
| 15 | 7J136 | Overdrive clutch solenoid SSPC-B |
| 16 | - | Line pressure relief valve |
| 17 | 7J136 | Torque converter clutch (TCC) solenoid |
| 18 | 7G383 | Line pressure control solenoid PC-A |
| 19 | 7E335 | Pressure switch retaining clip (W) |
| 20 | - | Wiring harness retaining bolt |
| 21 | 7G276 | Wiring harness |
| 22 | 7H141 | Transmission fluid temperature (TFT) sensor |
| 23 | 7E440 | Direct clutch bore plug |
| 24 | 7Z276 | Bulkhead connector O-ring seal |
| 25 | W300511 | Manifold-to-ditch plate bolt |
| 26 | W300513 | Manifold-to-ditch plate bolt |
| 27 | 7J137 | Shift solenoid retaining clip (E) |
| 28 | - | Cold pressure relief valve |
| 29 | 7H200 | Filter plate gasket |
