Output Shaft Speed (OSS) Sensor: Notes

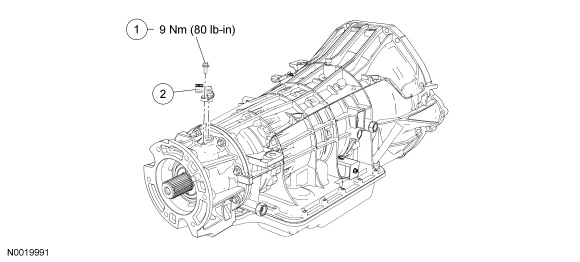

Fig 1: Output Shaft Speed (OSS) Sensor
GF0006806Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N805503-S100 Output shaft speed (OSS) sensor retaining bolt
2 7H103 OSS sensor
