Transmission Support CROSSMEMBER: Notes

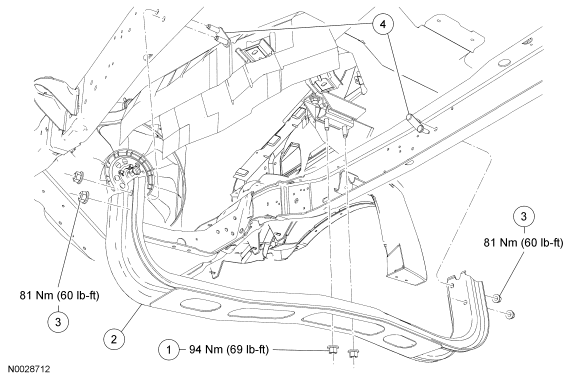

Fig 1: Transmission Support Crossmember
GF0011584Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Transmission insulator nut
2 6A023 Transmission support crossmember
3 379696-S2 Transmission crossmember nuts (4 required)
4 5R132 Transmission crossmember frame bolts (2 required)
