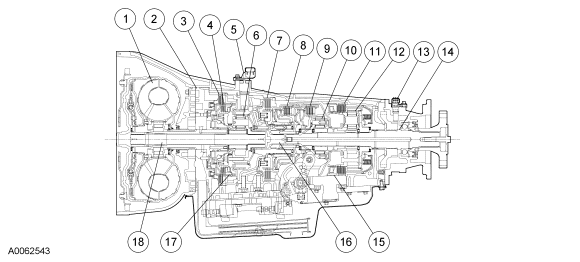

| 1 |
7902 |
Torque converter |
| 2 |
7A103 |
Pump assembly |
| 3 |
- |
Overdrive clutch assembly |
| 4 |
- |
Coast clutch assembly |
| 5 |
7M101 |
Turbine shaft speed (TSS) intermediate shaft speed sensor |
| 6 |
7B446 |
Overdrive planet assembly |
| 7 |
- |
Intermediate clutch assembly |
| 8 |
- |
Direct clutch assembly |
| 9 |
- |
Forward clutch assembly |
| 10 |
7A398 |
Forward planet assembly |
| 11 |
- |
Reverse clutch assembly |
| 12 |
7D006 |
Reverse planet assembly |
| 13 |
7H103 |
Output shaft speed (OSS) sensor |
| 14 |
7060 |
Output shaft assembly |
| 15 |
7A089 |
Low/reverse mechanical diode one-way clutch (OWC) |
| 16 |
7A658 |
Center shaft assembly |
| 17 |
7A089 |
Coast mechanical diode/OWC |
| 18 |
7017 |
Input shaft |
