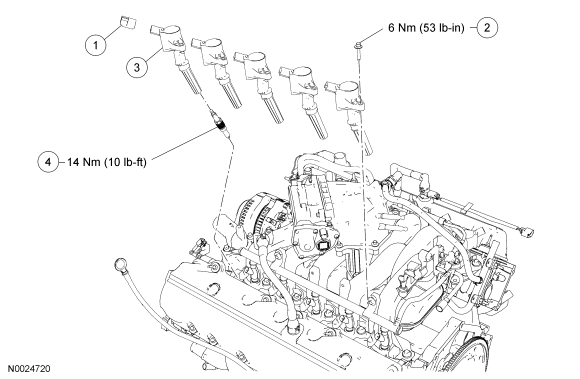

Engine Ignition Components - Exploded View
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH ignition coil electrical connectors (5 required) (part of 12B637) |
| 2 | W706175 | LH ignition coil retaining bolts (5 required) |
| 3 | 12A366 | LH ignition coils (5 required) |
| 4 | 12405 | LH spark plugs (5 required) |
- For additional information, refer to the procedures in this article.
