Steering Column Shaft: Notes

NOTE: Non-commercial chassis shown, commercial chassis similar.

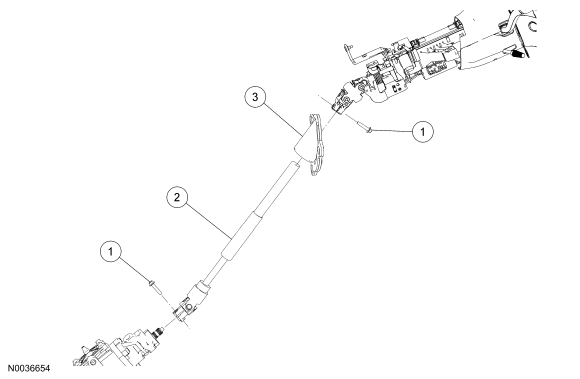

Fig 1: Exploded View Of Steering Column Shaft
GF0012599Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808684 Steering column shaft bolts (2 required)
2 3B676 Steering column shaft
3 3D677 Steering column shaft dash panel seal
