Test A: Powertrain Control Module (PCM) Power Relay



PINPOINT TEST A: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

This pinpoint test is intended to diagnose the following:

^ harness circuits: B+, IGN START/RUN, VPWR, GND and PWRGND

^ PCM power relay PCM

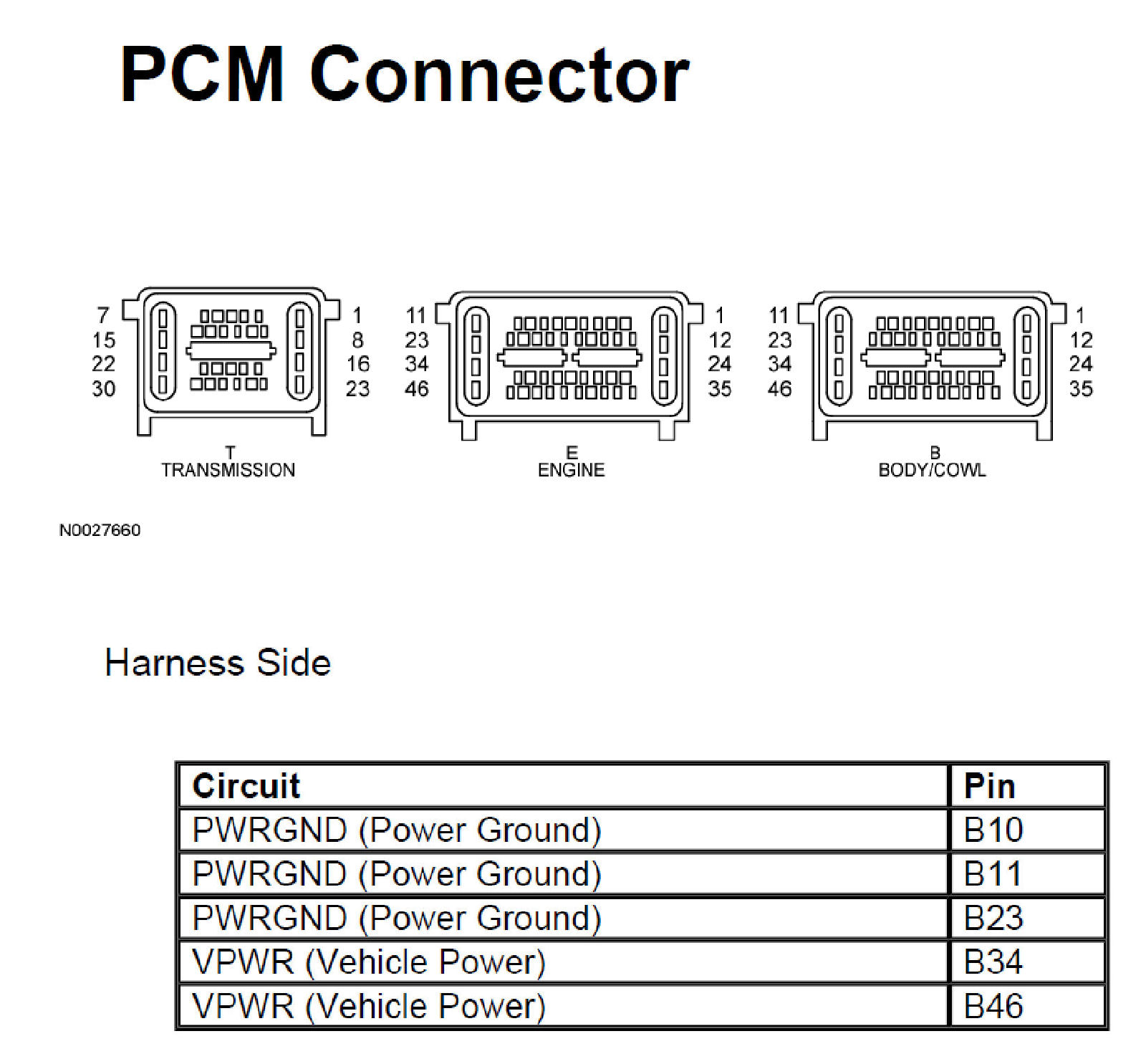

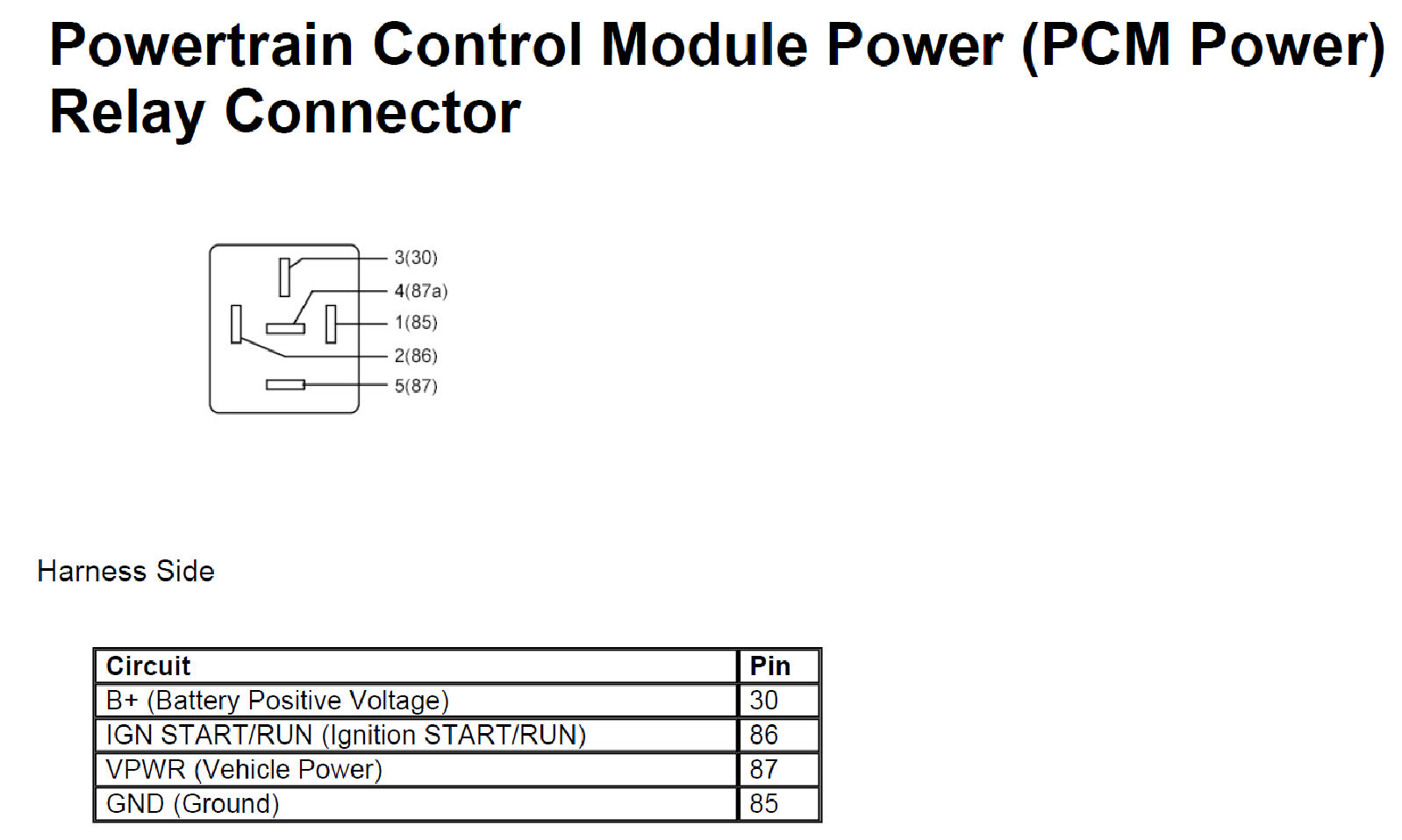

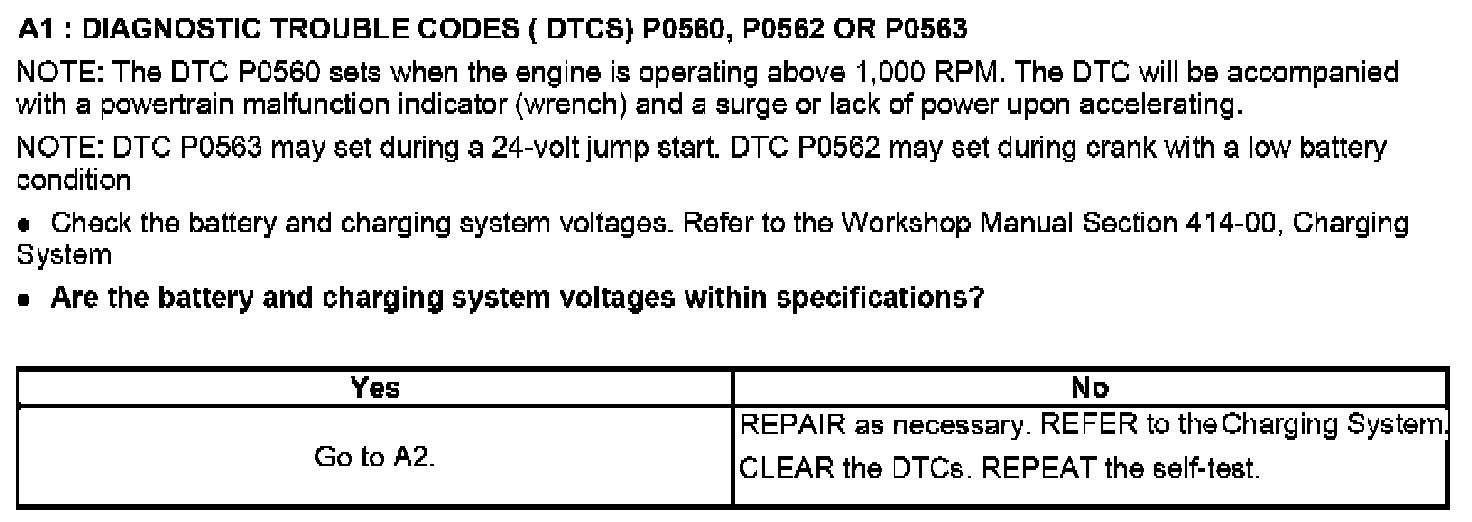

A1:

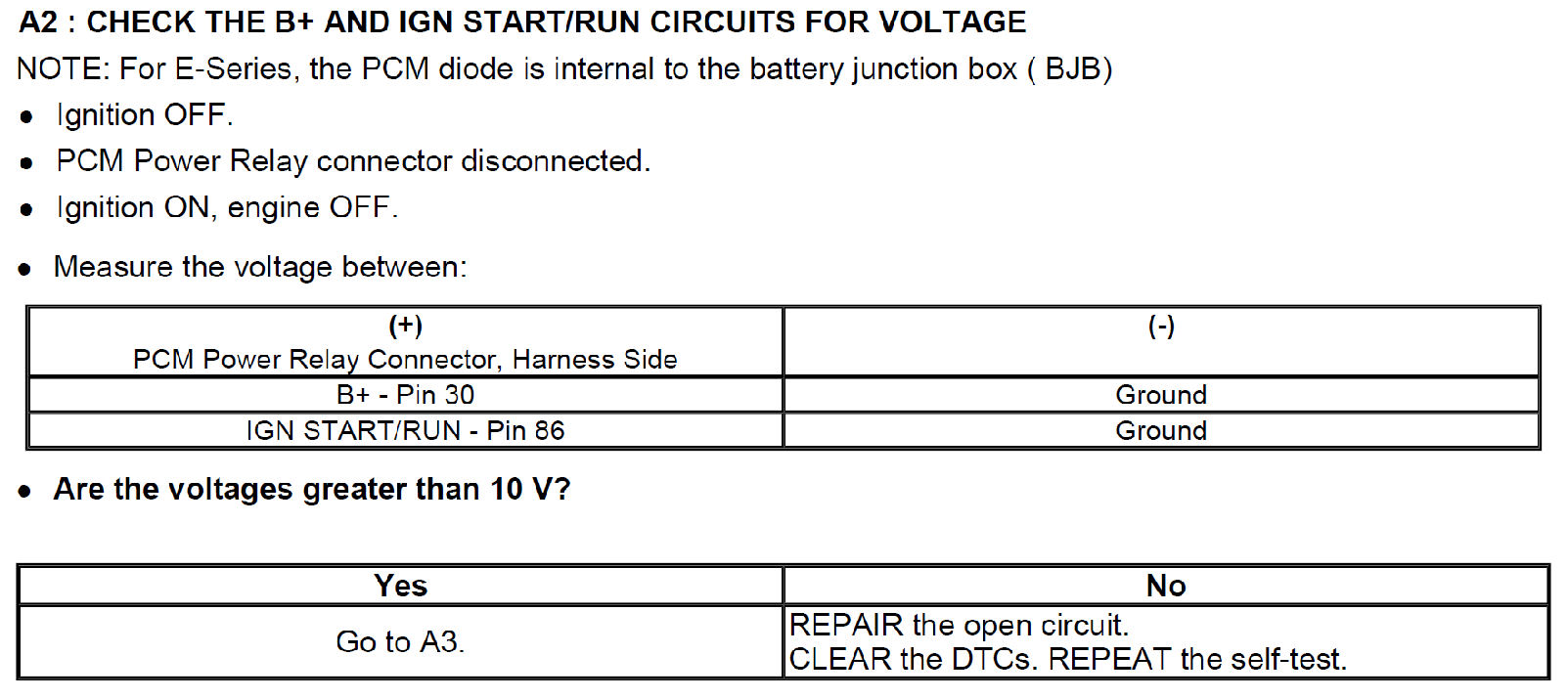

A2:

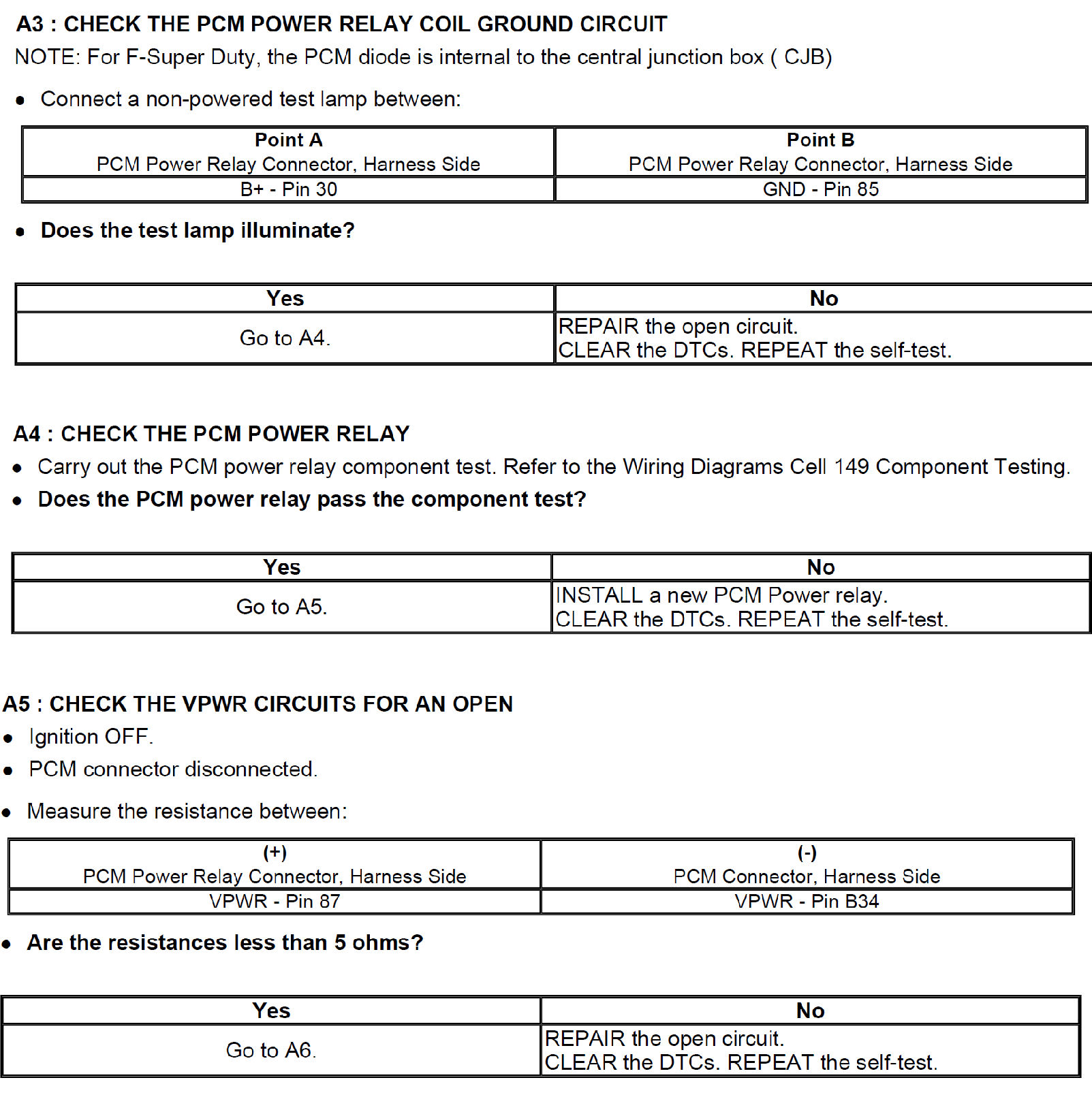

A3 - A5:

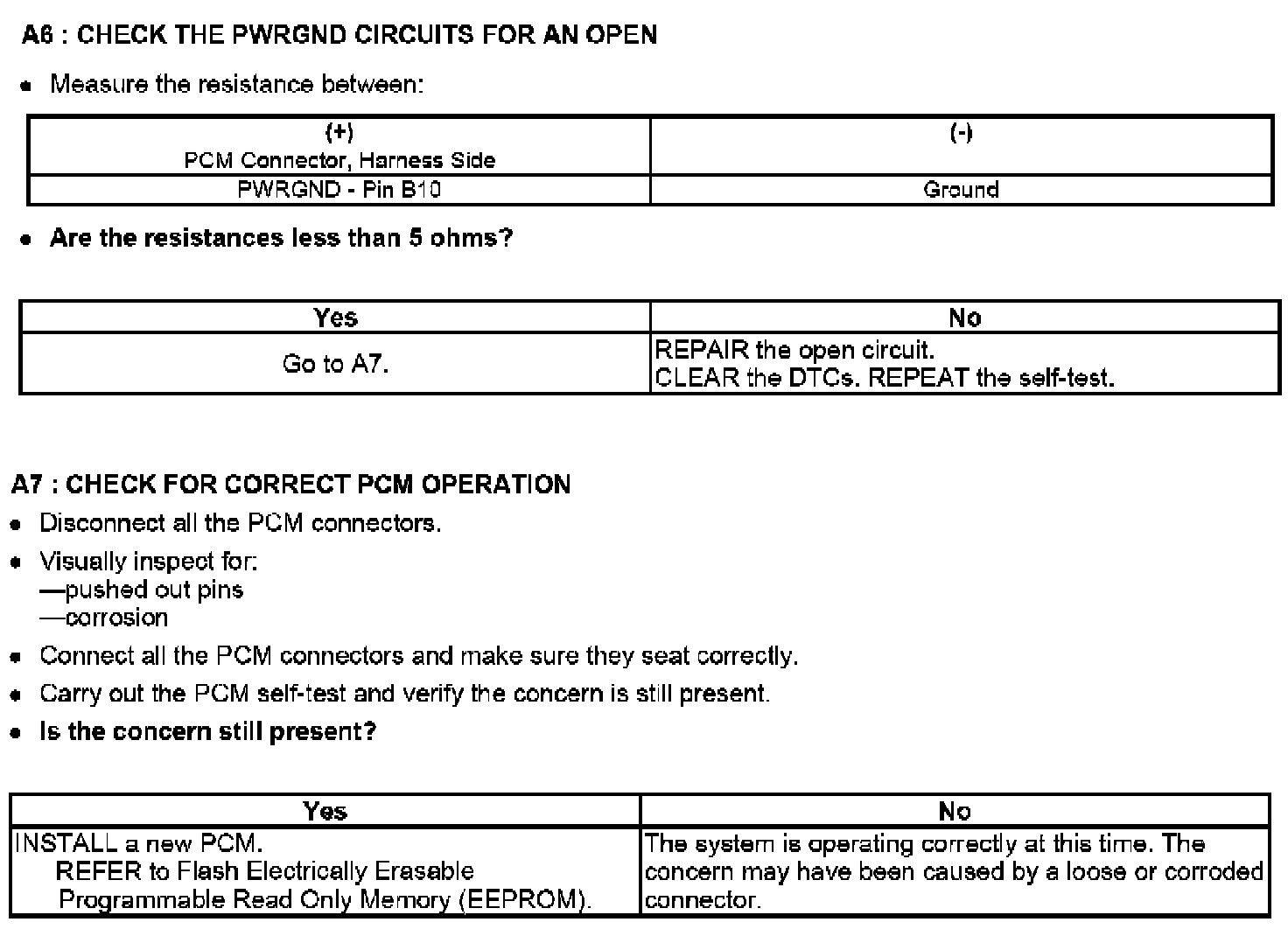

A6 - A7:
