Fuel Tank Protection Bracket




Fuel Tank Protection Bracket

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

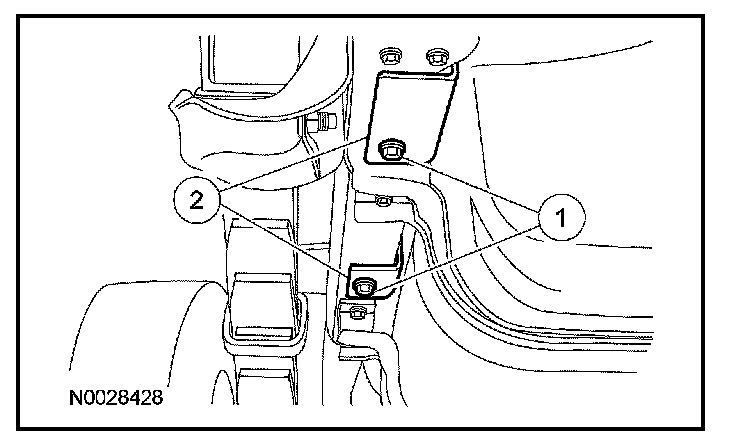

2. Remove the fuel tank protection bracket.
1 Remove the fuel tank protection bracket bolts.
- To install, tighten to 48 Nm (35 lb-ft).

2 Remove the fuel tank protection bracket.







3. To install, reverse the removal procedure.
