Internal Harness Service: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Push the bulkhead connector through the transmission solenoid body, twist it to lock it in place.

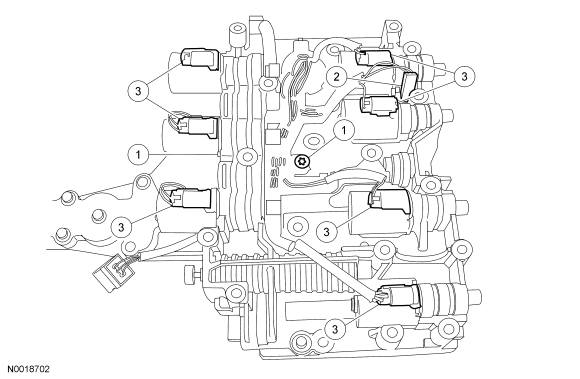

    2. Fig 1: Identifying Solenoid Electrical Connectors
    GF0006824Courtesy of FORD MOTOR CO.
  2. Connect the internal wiring harness.
    • Install the 2 screws.
    • Connect the transmission fluid temperature sensor electrical connector.
    • Connect the solenoid electrical connectors.
    3. Fig 2: Identifying Bulkhead Connector O-Ring
    G03889120Courtesy of FORD MOTOR CO.
    NOTE: The O-ring must be installed in the top slot.
  3. Install a new solenoid body bulkhead connector O-ring.
  4. Install the solenoid body. For additional information, refer to Solenoid Body Assembly .
