Line Pressure Control Solenoid - Pc-A: Installation

WARNING: This page is about a different variant/trim than selected.

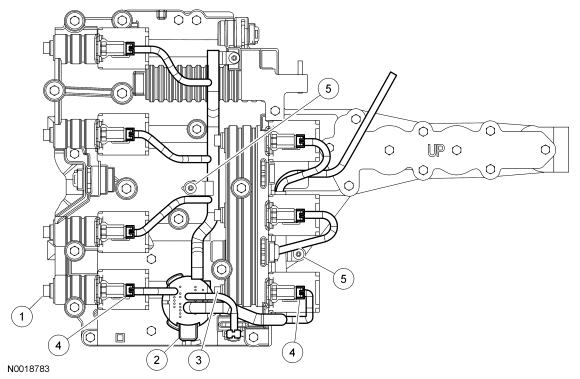

Fig 1: Identifying Solenoid Body Electrical Wire Harness
GF0006834Courtesy of FORD MOTOR CO.
  1. Assemble the main control valve body.
    • Install the pressure control solenoid (PC-A) and install the (E) retaining clip.
    • Push the bulkhead connector through the solenoid body and twist the bulkhead connector locking it into place
    • Install the shift solenoid (SSPC-C) back into place and install the (E) retaining clip.
    • Connect the electrical connectors to the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C).
    • Install the wire harness to solenoid body and tighten the bolts.
    2. Fig 2: Locating Solenoid Body Electrical Connector O-Ring Seal
    G03889078Courtesy of FORD MOTOR CO.
  2. Remove the solenoid body electrical connector O-ring seal.
  3. Install the transmission main control valve body. For additional information, refer to Solenoid Body Assembly .
