Line Pressure Control Solenoid - Pc-A: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
  2. Remove the transmission main control valve body. For additional information, refer to Solenoid Body Assembly .
    3. Fig 1: Locating Solenoid Body Electrical Connector O-Ring Seal
    G03889078Courtesy of FORD MOTOR CO.
  3. Remove the solenoid body electrical connector O-ring seal.

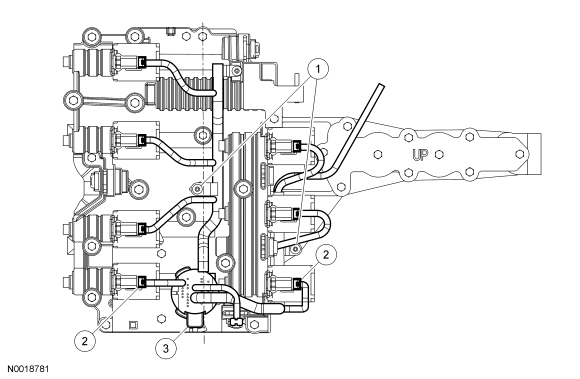

    4. Fig 2: Identifying Solenoid Body Electrical Wire Harness
    GF0006832Courtesy of FORD MOTOR CO.
  4. Partially remove the solenoid body electrical wire harness.
    • Remove the wire harness-to-solenoid body bolts.
    • Disconnect the electrical connector from the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C)
    • Lift the tab on the bulkhead connector, twist and push the bulkhead connector through the solenoid body.

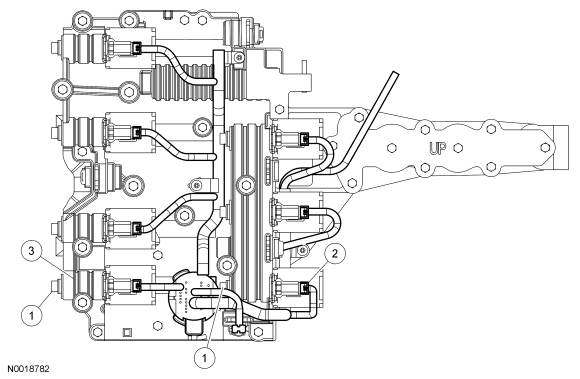

    5. Fig 3: Identifying Pressure Control Solenoid
    GF0006833Courtesy of FORD MOTOR CO.
  5. Remove the pressure control solenoid (PC-A).
    • Remove the (E) retaining clips from the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C).
    • Partially slide the shift solenoid (SSPC-C) back enough to gain clearance to remove the pressure control solenoid (PC-A).
    • Remove the pressure control solenoid (PC-A).
