Solenoid Body Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Early build vehicles, those equipped with an externally mounted remote filter, are also equipped with a different design sump filter and bottom pan. Always pair the sump filter with the correct bottom pan design, to avoid cavitation, filter cracking and transmission damage.

Fig 1: Early Build Vehicles With Externally Mounted Remote Filter

CAUTION: Late build vehicles replace the remote filter with a serviceable high efficiency sump filter (HESF), which requires a wider and deeper bottom pan. Always pair the sump filter with the correct bottom pan design, to avoid cavitation, filter cracking and transmission damage.

Fig 2: Late Build Vehicles Without Remote Filter and With Serviceable High Efficiency Sump Filter (HESF)

Fig 3: View Of Solenoid Body Gasket

Courtesy of FORD MOTOR CO.

Install a new solenoid body gasket.

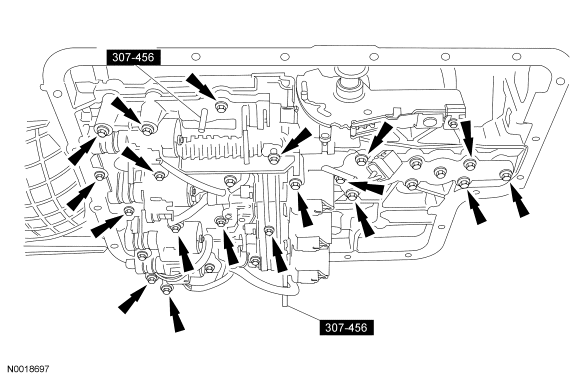

Fig 4: Locating Solenoid Body Bolts

Courtesy of FORD MOTOR CO.

Using the special tools, install the solenoid body and loosely install the bolts.
- While installing the solenoid body, align the manual valve.

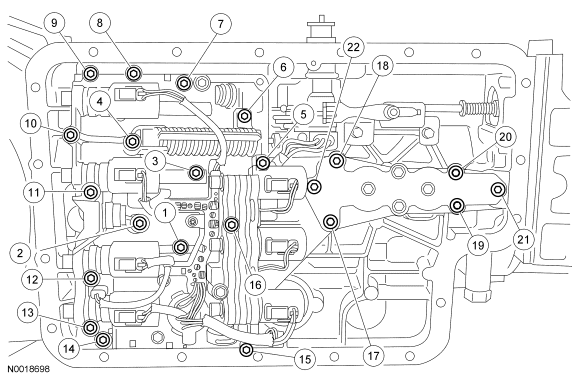

Fig 5: Identifying Solenoid Body Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

Tighten all the bolts in the sequence shown.
- Tighten to 13 Nm (10 lb-ft).

Fig 6: Identifying TR Sensor Connector

Courtesy of FORD MOTOR CO.

Connect the TR sensor connector.
Install the transmission fluid filter, pan gasket and pan. For additional information, refer to Fluid Pan, Gasket and Filter .

Fig 7: Identifying Solenoid Body Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the solenoid body electrical connector.
- Tighten to 5 Nm (44 lb-in).
